NSN 5945-01-585-3705 001905320006, 00-19-0532-0006, 01-585-3705
Product Details | ELECTROMAGNETIC RELAY
5945-01-585-3705 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 001905320006, 00-19-0532-0006, 5945-01-585-3705, 01-585-3705, 5945015853705, 015853705
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAY 2010 | 01-585-3705 | 32512 ( RELAY, ELECTROMAGNETIC ) |

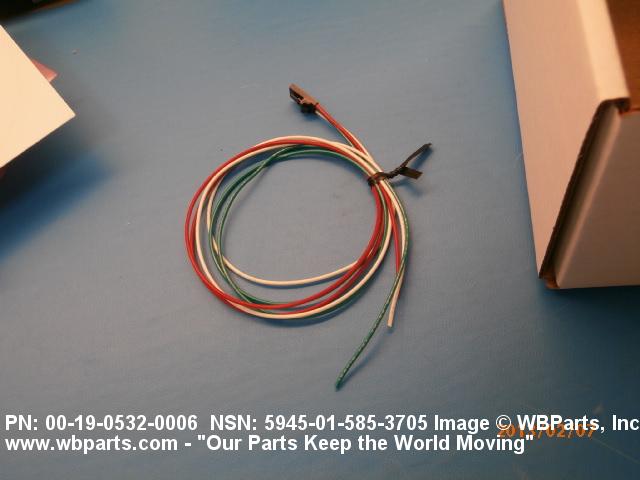

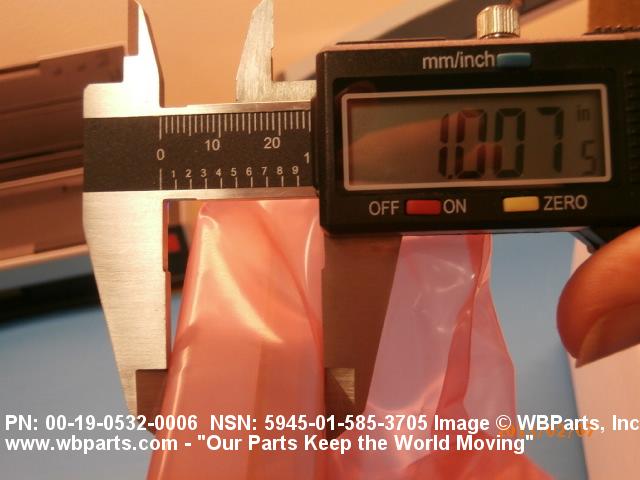

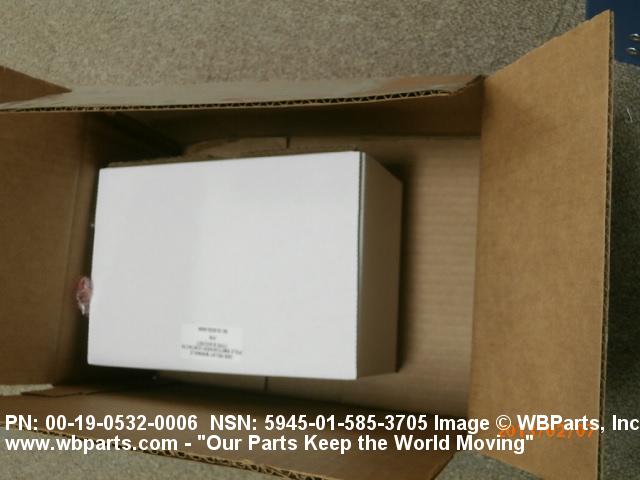

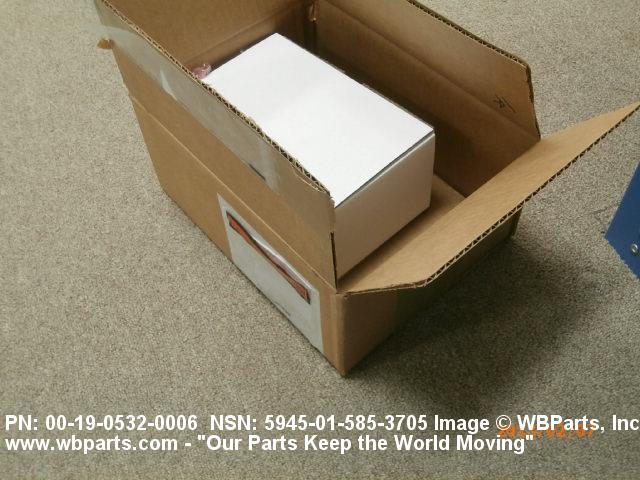

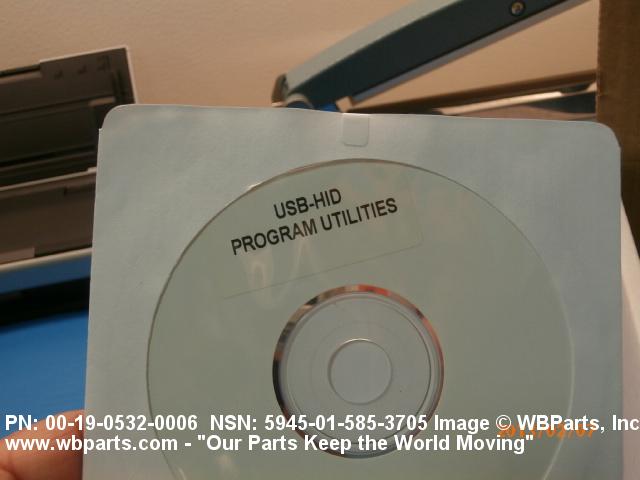

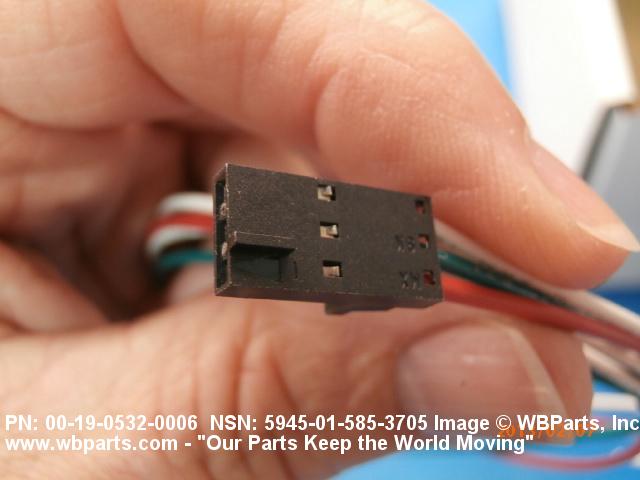

Drawings & Photos | NSN 5945-01-585-3705
Demand History | NSN 5945-01-585-3705
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-585-3705 | 2024-06-155 | 3 | US |
| 5945-01-585-3705 | 2013-01-31 | 1 | Denmark |
| 5945-01-585-3705 | 2013-01-31 | 1 | Denmark |
| 5945-01-585-3705 | 2013-01-23 | 1 | Denmark |
Cross Reference | NSN 5945-01-585-3705
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00-19-0532-0006 | 1T4M5 | RINGDALE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-585-3705
Technical Data | NSN 5945-01-585-3705
| Characteristic | Specifications |
|---|---|

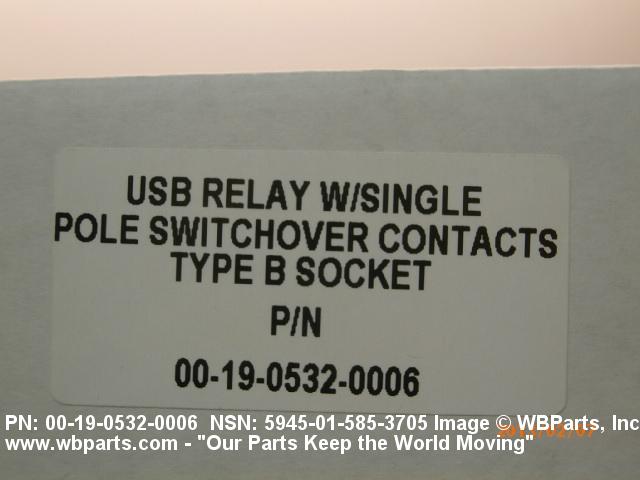

| SPECIAL FEATURES | USB HID GENERAL PURPOSE RELAY WITH SINGLE POLE SWITCHOVER CONTACTS;TYPE B SOCKET;FOR ACCESS CONTROL,LABORATORY OR PROCESS CONTROL APPLICATIONS |
| END ITEM IDENTIFICATION | PROCESS CONTROL EQUPMENT |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.300 INCHES NOMINAL |
| PURPOSE FOR WHICH DESIGNED | GENERAL |
| DUTY TYPE | CONTINUOUS |
Restrictions/Controls & Freight Information | NSN 5945-01-585-3705
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
