NSN 5940-01-468-2733 M81714/17-D32, M8171417D32, AS81343/17
Product Details | SECTIONAL TERMINAL JUNCTION BLOCK
5940-01-468-2733 An electrical item with multiple socket contacts which may or may not be interconnected by bussing, to form one or more circuits. Item may be of feedback, feedthrough and/or terminating design and may afford a convenient method of interconnection. It may or may not include a sealing grommet. Sectional blocks are normally retained in a track or channel mounting. Excludes CHAMBER, CABLE TERMINAL; CONTACT ASSEMBLY, ELECTRICAL; INSERT, ELECTRICAL CONNECTOR; JUNTION BOX ; TERMINAL BOARD; and TERMINAL BOX.
Part Alternates: M81714/17-D32, M8171417D32, AS81343/17, AS8134317, AS81714, MILT81714, MIL-T-81714, TJHD22702, 5940-01-468-2733, 01-468-2733, 5940014682733, 014682733
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 OCT 1999 | 01-468-2733 | 32508 ( TERMINAL JUNCTION BLOCK, SECTIONAL ) |

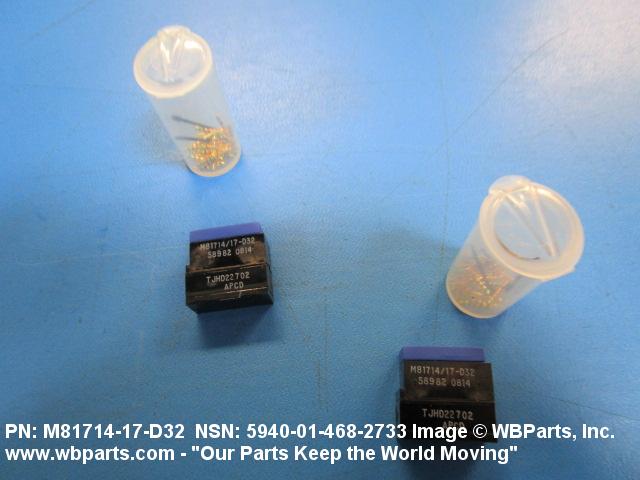

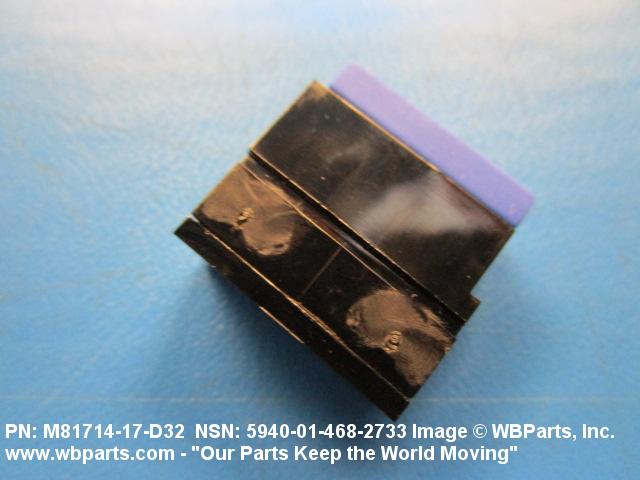

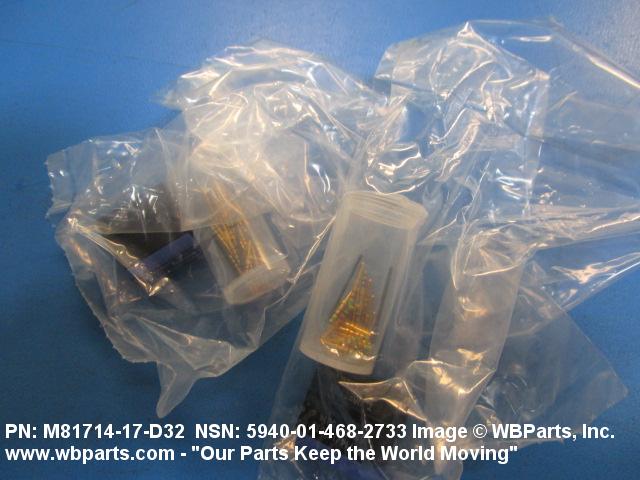

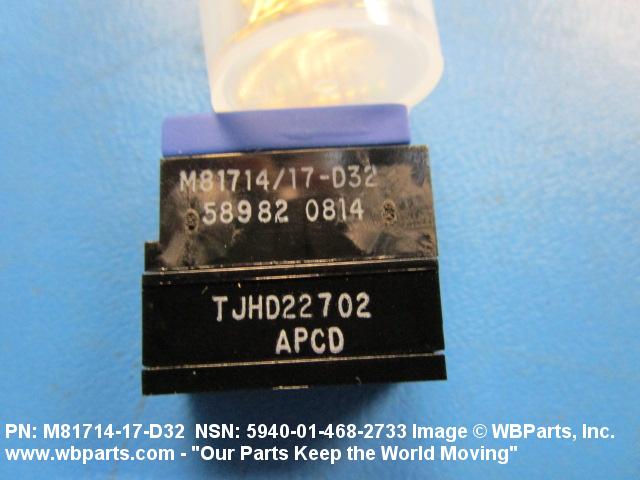

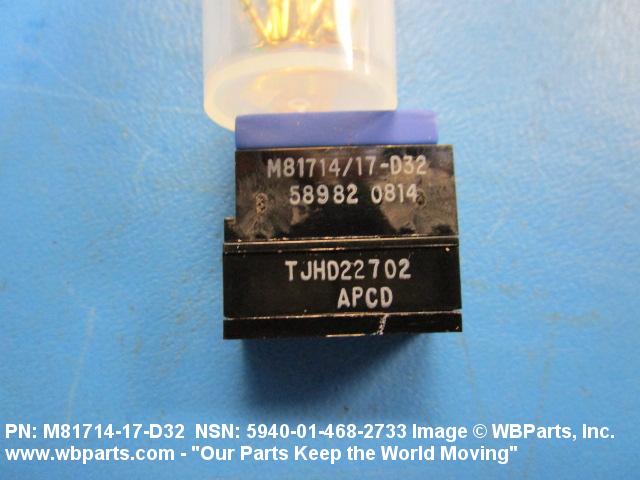

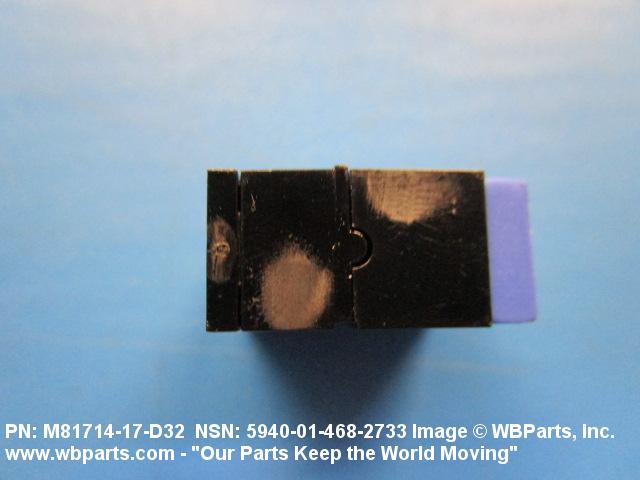

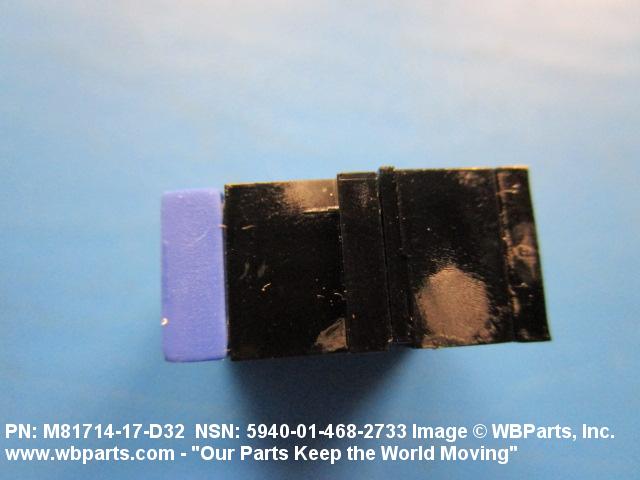

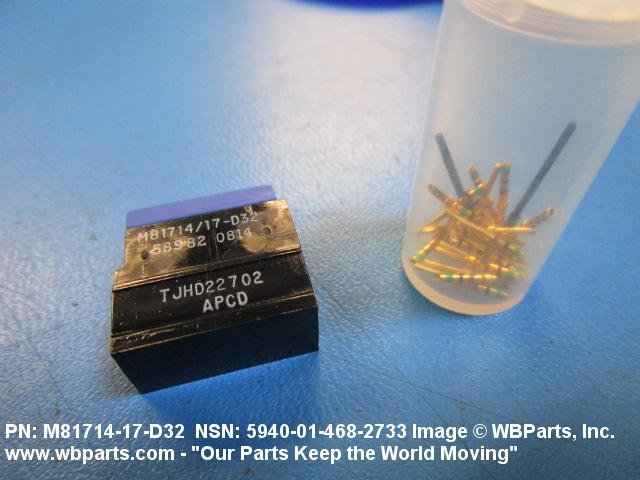

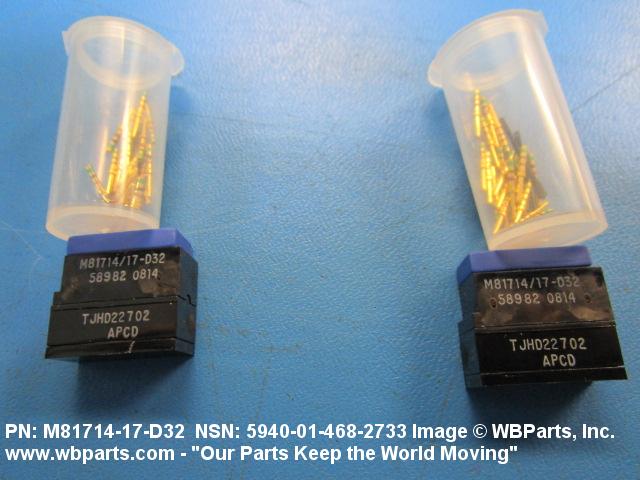

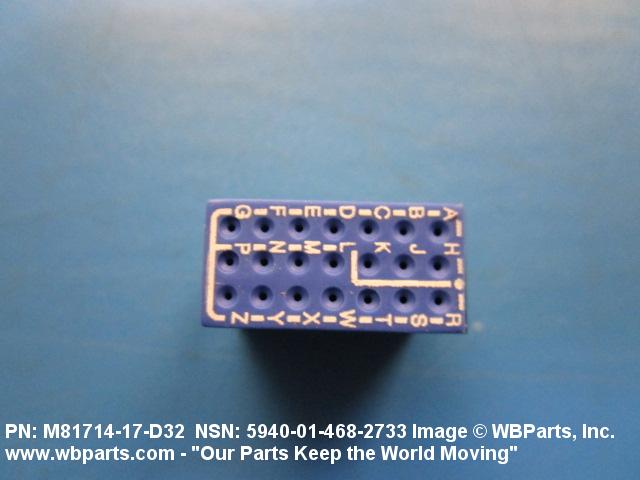

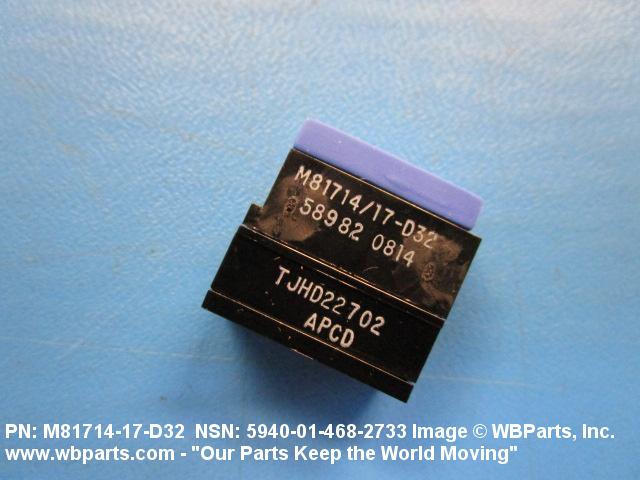

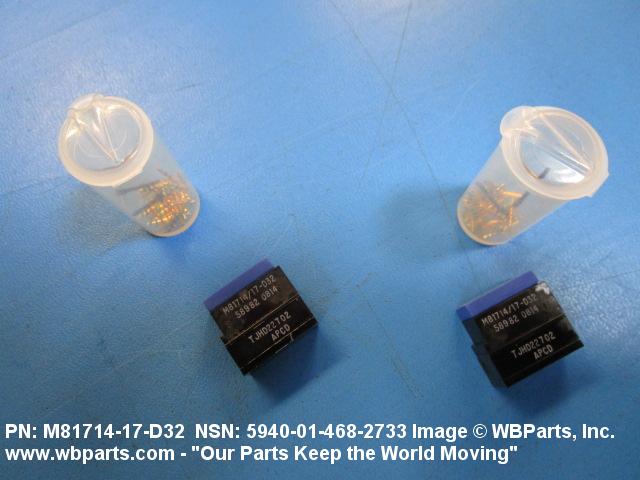

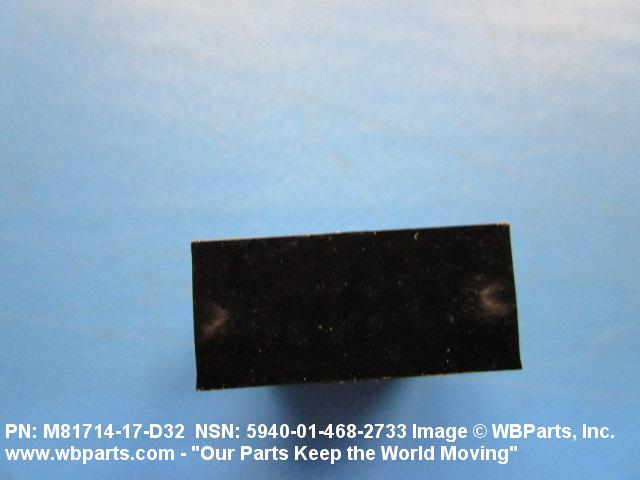

Drawings & Photos | NSN 5940-01-468-2733
Demand History | NSN 5940-01-468-2733
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-468-2733 | 2023-12-345 | 16 | DIBBS |
| 5940-01-468-2733 | 2023-12-341 | 69 | DIBBS |
| 5940-01-468-2733 | 2023-11-333 | 69 | DIBBS |
| 5940-01-468-2733 | 2022-04-108 | 16 | DIBBS |
| 5940-01-468-2733 | 2021-09-250 | 2 | United States |
| 5940-01-468-2733 | 2020-05-138 | 54 | DIBBS |
| 5940-01-468-2733 | 2019-12-337 | 23 | DIBBS |
| 5940-01-468-2733 | 2019-11-330 | 64 | DIBBS |
| 5940-01-468-2733 | 2016-02-34 | 12 | DIBBS |
| 5940-01-468-2733 | 2014-02-51 | 7 | DIBBS |
| 5940-01-468-2733 | 2013-08-223 | 13 | DIBBS |
| 5940-01-468-2733 | 2013-01-10 | 3 | DIBBS |
| 5940-01-468-2733 | 2012-12-353 | 5 | DIBBS |
| 5940-01-468-2733 | 2012-11-324 | 2 | DIBBS |
| 5940-01-468-2733 | 2012-04-93 | 8 | DIBBS |
| 5940-01-468-2733 | 2009-12-344 | 5 | DIBBS |
Cross Reference | NSN 5940-01-468-2733
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-468-2733
Related Products | NSN 5940-01-468-2733
Technical Data | NSN 5940-01-468-2733
| Characteristic | Specifications |
|---|---|
| BLOCK TYPE | REGULAR |
| TERMINAL DESIGN | FEEDBACK |
| TERMINAL TYPE AND QUANTITY | 21 PIN |
| WIRE SIZE ACCOMMODATED | 22.000 AWG MINIMUM AND 28.000 AWG MAXIMUM |
| POLE QUANTITY | 21 |
| CURRENT TYPE | DC |
| VOLTAGE RATING | 300.0 VOLTS MINIMUM AND 600.0 VOLTS MAXIMUM |
| CURRENT RATING IN AMPS | 1.5 |
| OPERATING TEMP RANGE | -65.0 TO 200.0 DEG CELSIUS |
| MOUNTING METHOD | PLUG-IN |
| OVERALL LENGTH | 0.850 INCHES NOMINAL |
| OVERALL WIDTH | 0.390 INCHES NOMINAL |
| OVERALL HEIGHT | 0.847 INCHES NOMINAL |
| SPECIAL FEATURES | 32 IN PART NUMBER INDICATES BUSSING ARRANGEMENTAGAVGHC130N NVIS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-81714 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M81714/17-D32 |
Restrictions/Controls & Freight Information | NSN 5940-01-468-2733
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-468-2733
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
