NSN 5940-01-468-2989 DRAWING 8941 MARK 40, DRAWING8941MARK40, IKU4S
Product Details | TERMINAL BOARD
5940-01-468-2989 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: DRAWING 8941 MARK 40, DRAWING8941MARK40, IKU4S, 5940-01-468-2989, 01-468-2989, 5940014682989, 014682989
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 OCT 1999 | 01-468-2989 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-01-468-2989
Demand History | NSN 5940-01-468-2989
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| IKU4S | 2023-12-05 | 20 | DIBBS |
| 5940-01-468-2989 | 2013-07-23 | 49 | DIBBS |
| 5940-01-468-2989 | 2011-05-04 | 7 | DIBBS |
| 5940-01-468-2989 | 2009-08-24 | 2 | DIBBS |
| 5940-01-468-2989 | 2009-07-06 | 4 | DIBBS |
| 5940-01-468-2989 | 2009-04-17 | 1 | DIBBS |
| 5940-01-468-2989 | 2008-10-07 | 3 | DIBBS |
| 5940-01-468-2989 | 2008-08-16 | 1 | DIBBS |
| 5940-01-468-2989 | 2008-06-08 | 1 | DIBBS |
| 5940-01-468-2989 | 2007-12-23 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-468-2989
Technical Data | NSN 5940-01-468-2989
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD COPPER ALLOY TERMINALS |

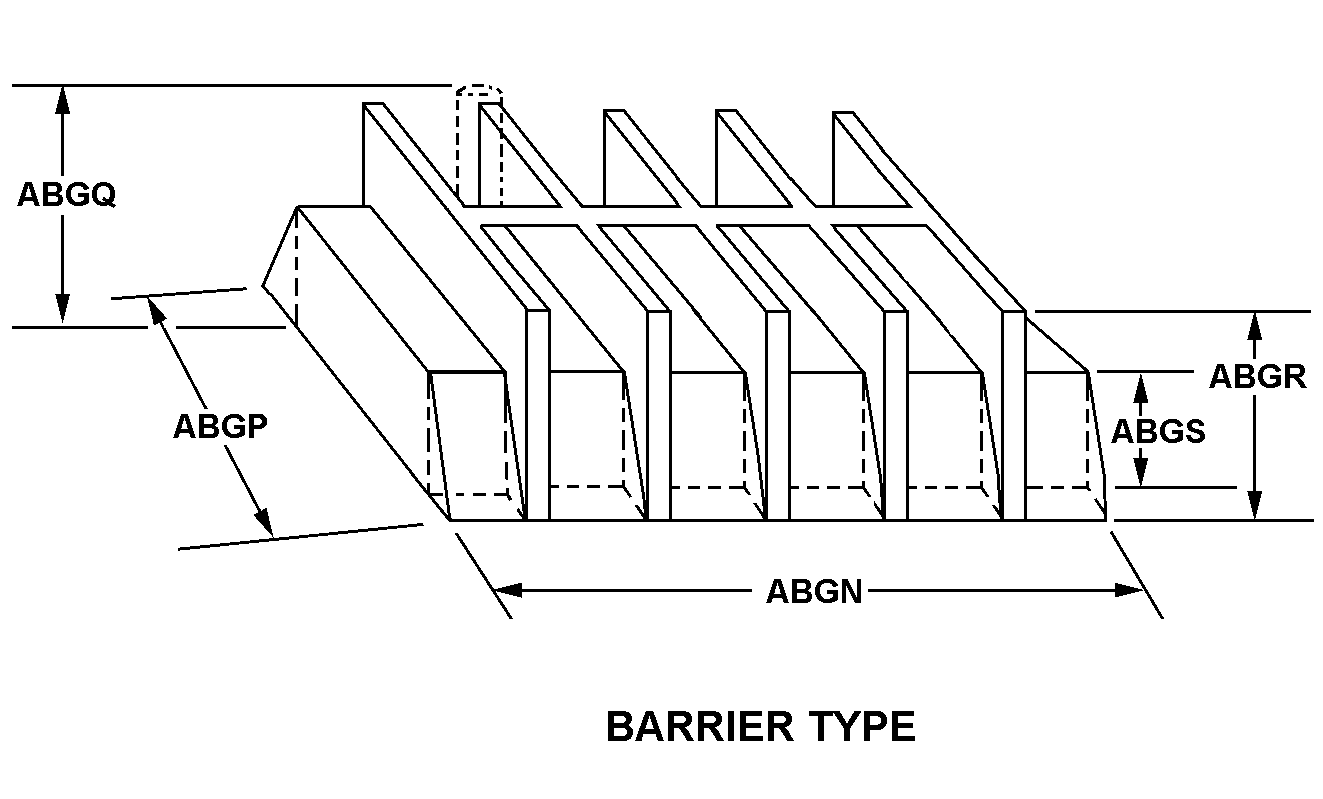

| BODY STYLE | A3 BARRIER TYPE |
| BOARD OVERALL LENGTH | 3.250 INCHES |
| BOARD OVERALL WIDTH | 2.000 INCHES |
| BOARD OVERALL HEIGHT | 1.250 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.840 INCHES |
| BASE THICKNESS | 0.500 INCHES |
| TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
| TERMINAL ROW QUANTITY | 2 |
| DISTANCE BETWEEN TERMINAL ROW CENTERS | 1.000 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.620 INCHES |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLAT BASE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.880 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.750 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.185 INCHES |
| CURRENT RATING IN AMPS | 50.0 |
| III END ITEM IDENTIFICATION | SWITCHBOARD, ELECTRIC POWER GENERATION SYSTEM |
