Product Details | TERMINAL BOARD
5940-01-468-5749 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: A311062, 121502, 1215-02, 5940-01-468-5749, 01-468-5749, 5940014685749, 014685749
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 OCT 1999 | 01-468-5749 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-01-468-5749
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-468-5749
Technical Data | NSN 5940-01-468-5749
| Characteristic | Specifications |
|---|---|
| MATERIAL | MICA GLASS BONDED BOARD STEEL TERMINALS |

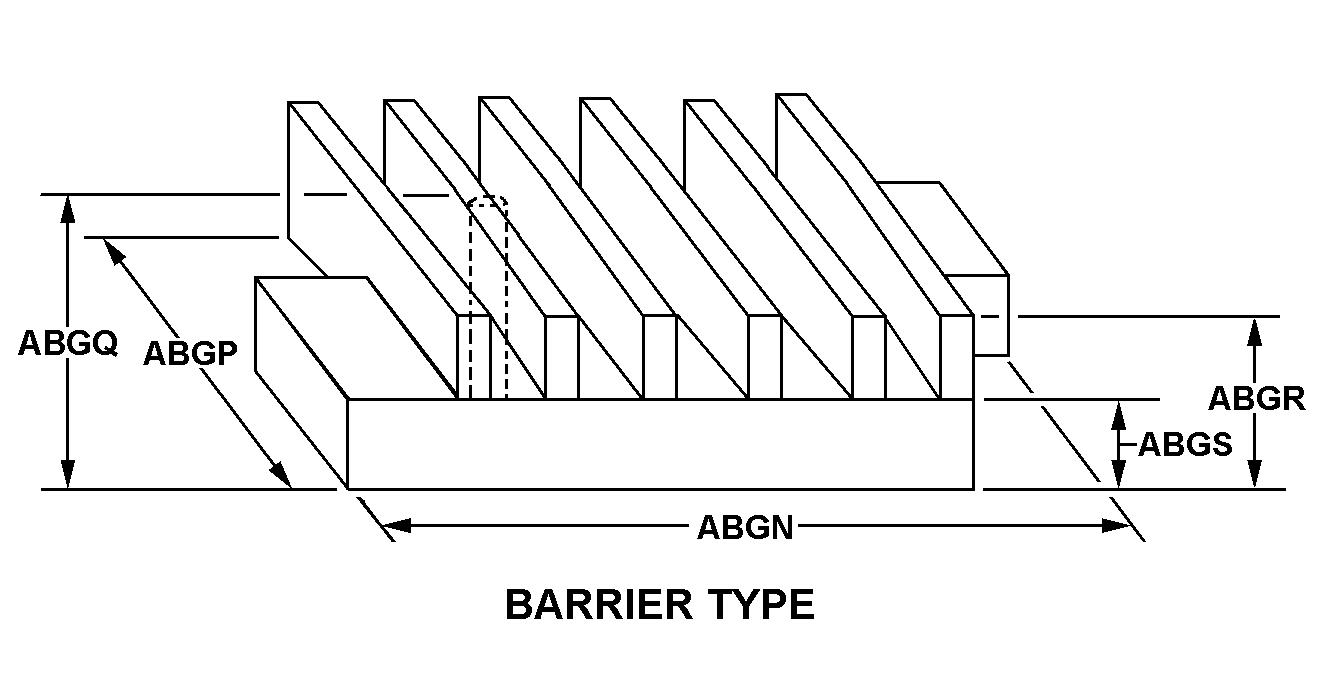

| BODY STYLE | A4 BARRIER TYPE |
| BOARD OVERALL LENGTH | 1.984 INCHES |
| BOARD OVERALL WIDTH | 1.500 INCHES |
| BOARD OVERALL HEIGHT | 0.969 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.781 INCHES |
| BASE THICKNESS | 0.375 INCHES |
| TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
| TERMINAL ROW QUANTITY | 2 |
| DISTANCE BETWEEN TERMINAL ROW CENTERS | 0.812 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.531 INCHES |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.593 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.344 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.195 INCHES |
| MOUNTING HOLE DIAMETER | 0.209 INCHES |
| CURRENT RATING IN AMPS | 50.0 |
| SPECIAL FEATURES | ARC-RESISTANT-NO CARBON TRACKING |
