NSN 5940-01-211-8969 650321603A, 65032-16-03A, 01-211-8969
Product Details | SECTIONAL TERMINAL JUNCTION BLOCK
5940-01-211-8969 An electrical item with multiple socket contacts which may or may not be interconnected by bussing, to form one or more circuits. Item may be of feedback, feedthrough and/or terminating design and may afford a convenient method of interconnection. It may or may not include a sealing grommet. Sectional blocks are normally retained in a track or channel mounting. Excludes CHAMBER, CABLE TERMINAL; CONTACT ASSEMBLY, ELECTRICAL; INSERT, ELECTRICAL CONNECTOR; JUNTION BOX ; TERMINAL BOARD; and TERMINAL BOX.
Part Alternates: 650321603A, 65032-16-03A, 5940-01-211-8969, 01-211-8969, 5940012118969, 012118969
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAR 1989 | 01-211-8969 | 32508 ( TERMINAL JUNCTION BLOCK, SECTIONAL ) |

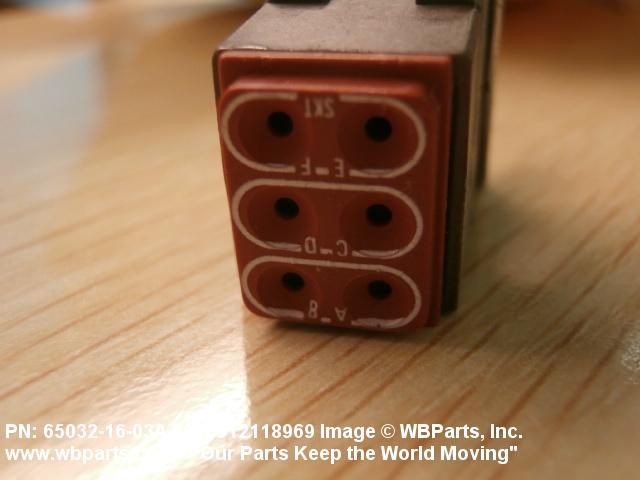

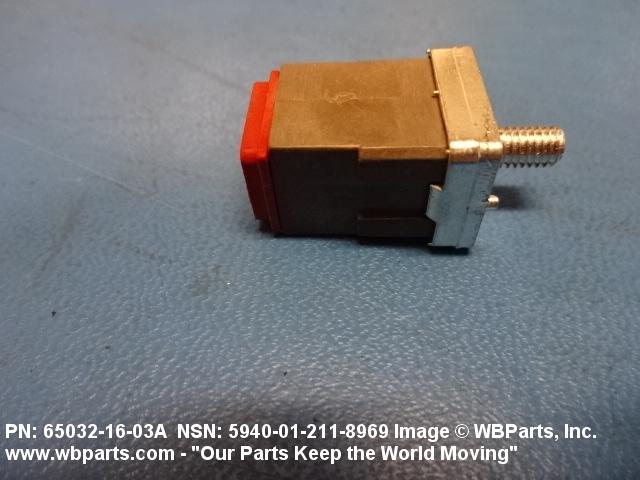

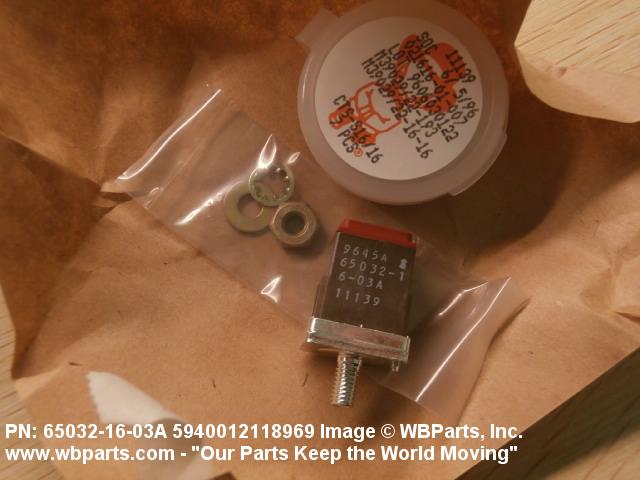

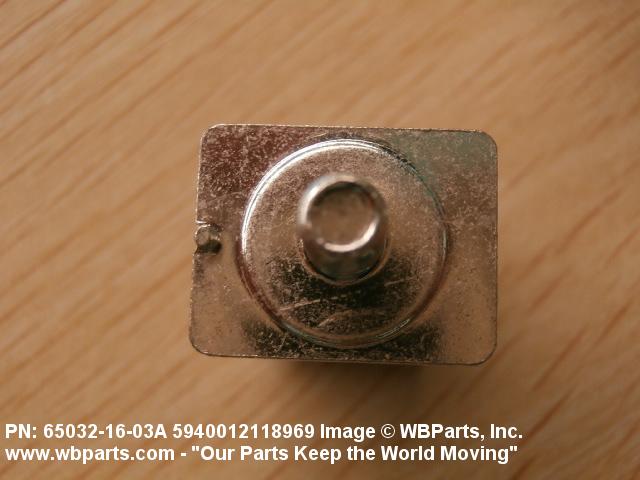

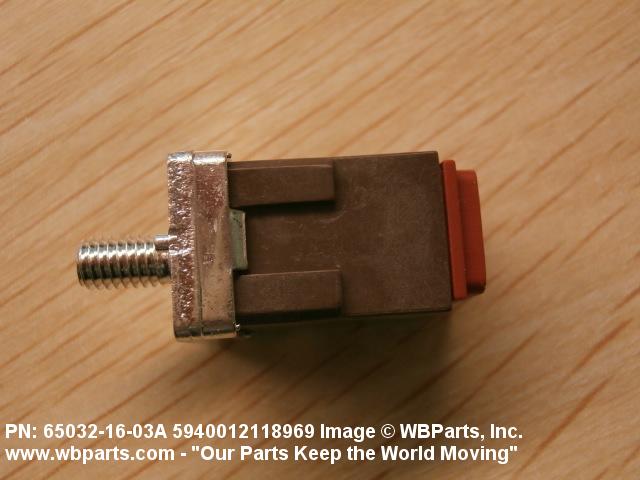

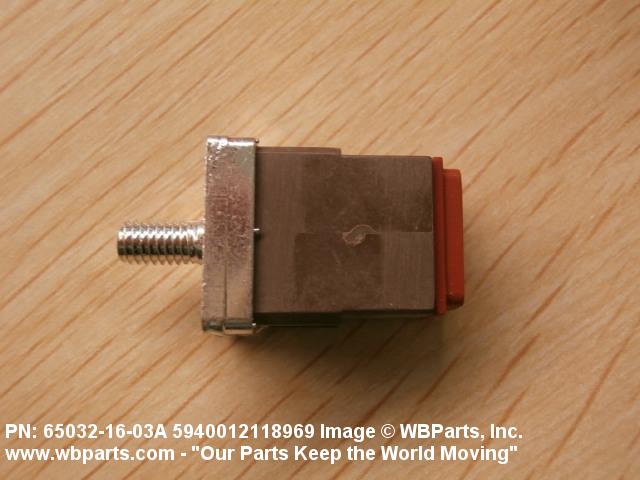

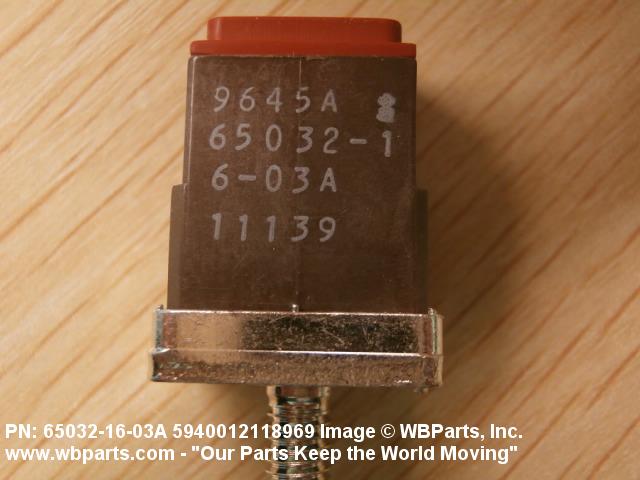

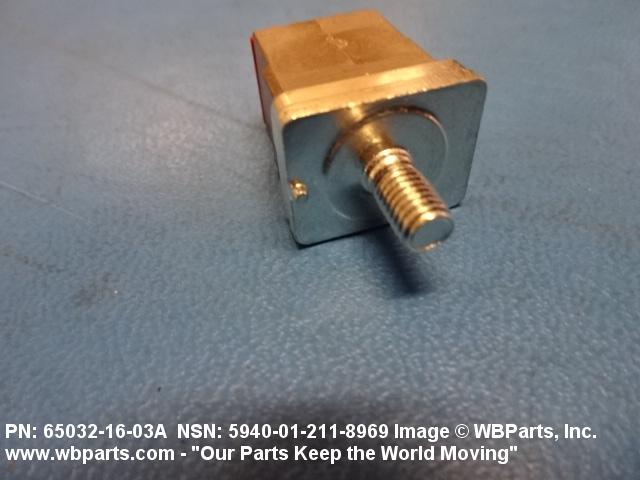

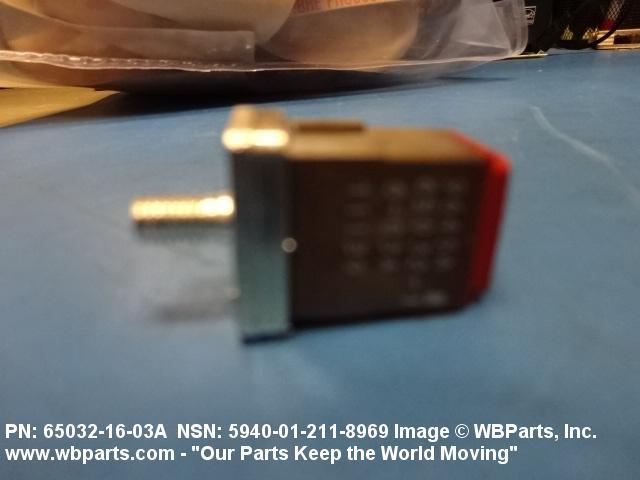

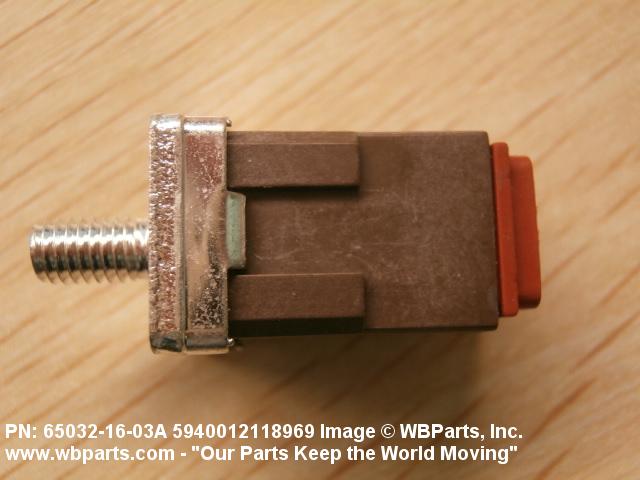

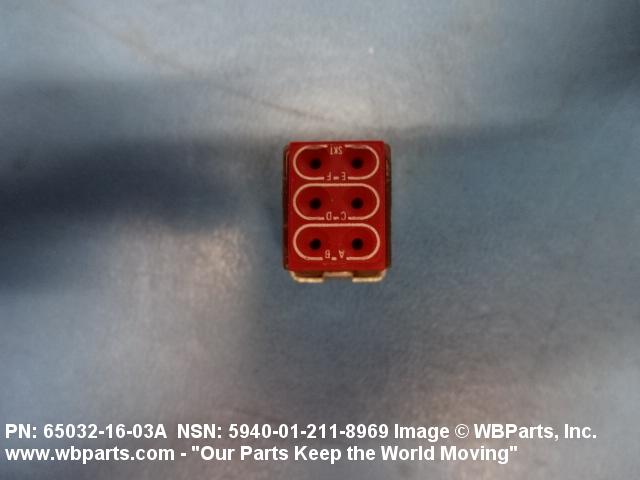

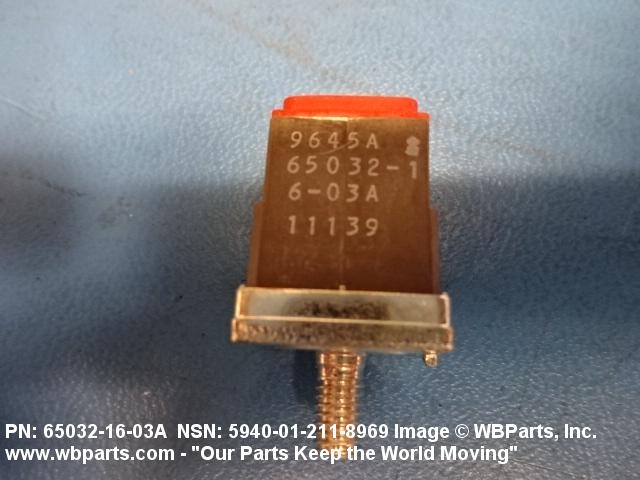

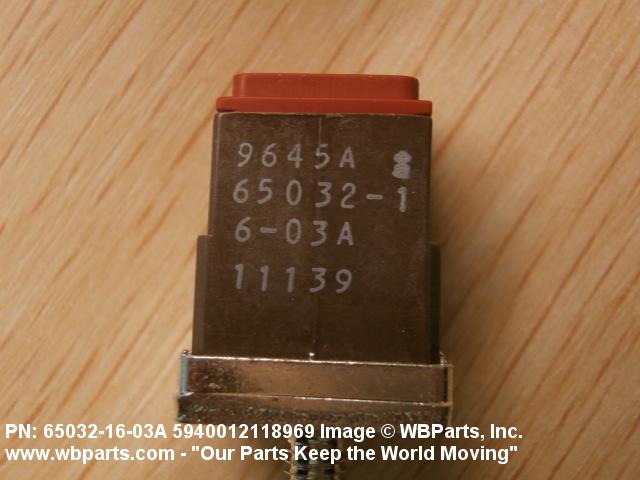

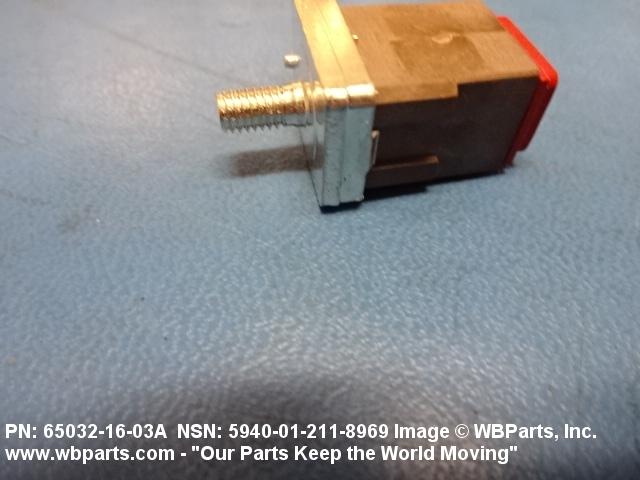

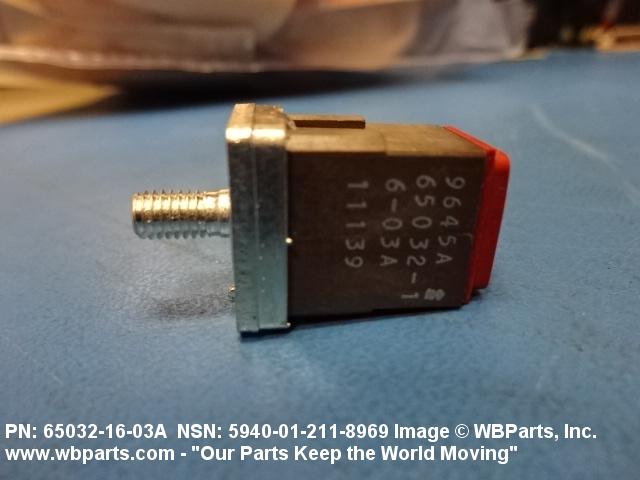

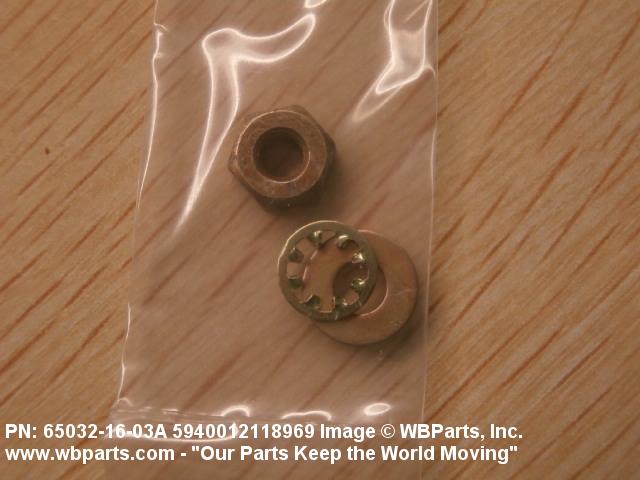

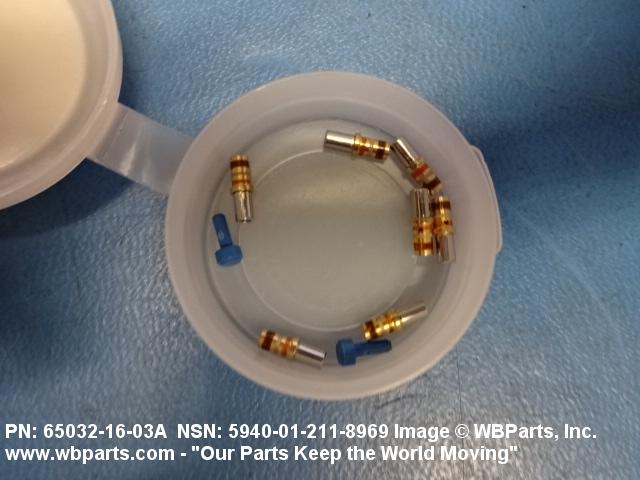

Drawings & Photos | NSN 5940-01-211-8969
Demand History | NSN 5940-01-211-8969
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-211-8969 | 2017-11-311 | 88 | DIBBS |
| 5940-01-211-8969 | 2017-09-271 | 87 | United States |
| 5940-01-211-8969 | 2017-04-95 | 87 | US |
| 5940-01-211-8969 | 2017-04-94 | 87 | DIBBS |
| 5940-01-211-8969 | 2015-07-209 | 78 | United States |
| 5940-01-211-8969 | 2015-03-88 | 78 | DIBBS |
| 5940-01-211-8969 | 2013-10-303 | 59 | DIBBS |
| 5940-01-211-8969 | 2012-05-127 | 49 | DIBBS |
| 5940-01-211-8969 | 2008-11-316 | 49 | DIBBS |
| 5940-01-211-8969 | 2008-10-283 | 20 | DIBBS |
| 5940-01-211-8969 | 2008-02-36 | 28 | DIBBS |
| 5940-01-211-8969 | 2007-06-166 | 13 | DIBBS |
| 5940-01-211-8969 | 2006-06-159 | 12 | DIBBS |
Cross Reference | NSN 5940-01-211-8969
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65032-16-03A | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-211-8969
Technical Data | NSN 5940-01-211-8969
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 0.740 INCHES NOMINAL |
| OVERALL HEIGHT | 0.995 INCHES NOMINAL |

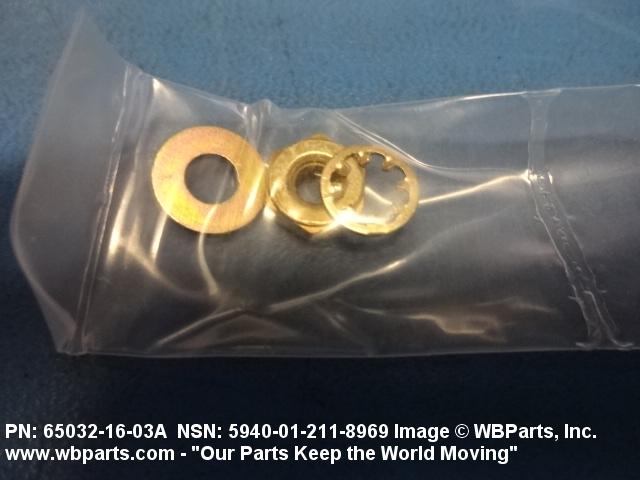

| SPECIAL FEATURES | PLASTIC MATERIAL,MOUNTED BY THREADED STUD,INCLUDES MOUNTING HARDWARE,0.580 IN THK |
Restrictions/Controls & Freight Information | NSN 5940-01-211-8969
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-211-8969
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
