NSN 5940-01-019-6870 LS4999A18, LS4999A1-8, 01-019-6870
Product Details | TERMINAL BOARD MARKER STRIP
5940-01-019-6870 An item, generally of insulating material, designed to identify terminal position on terminal boards. Its thickness is small in comparison to its length and width. They can be printed to show terminal designations by numbers, letters, symbols, or any combination thereof. It may serve as insulation between terminal board and chassis. Excludes MARKER, IDENTIFICATION and PLATE, DESIGNATION.
Part Alternates: LS4999A18, LS4999A1-8, 5940-01-019-6870, 01-019-6870, 5940010196870, 010196870
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 APR 1976 | 01-019-6870 | 35897 ( MARKER STRIP, TERMINAL BOARD ) |

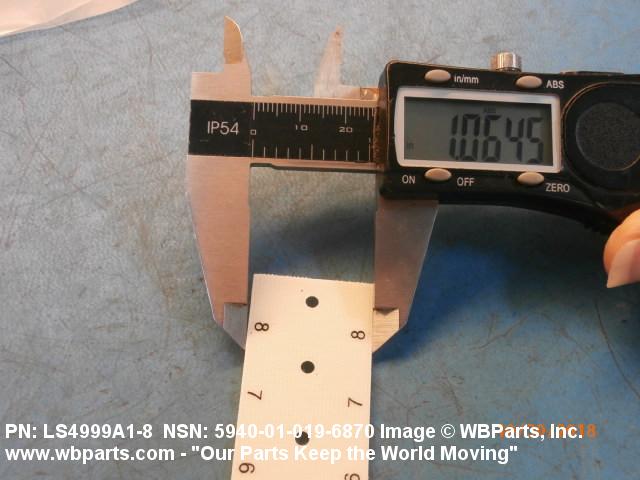

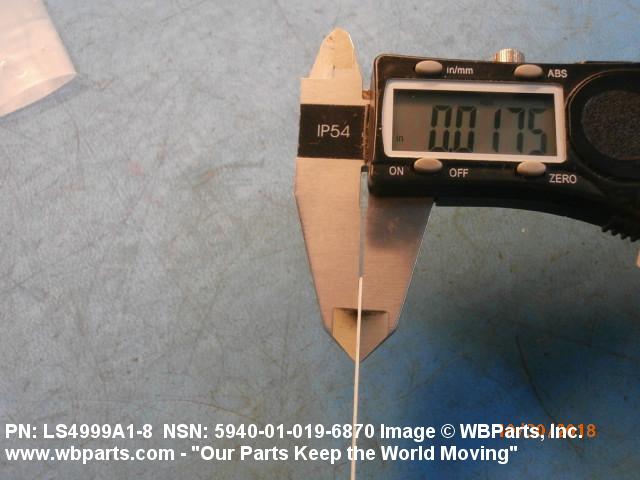

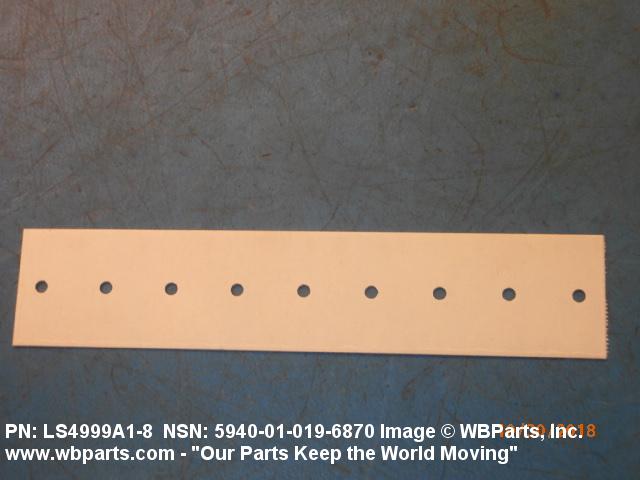

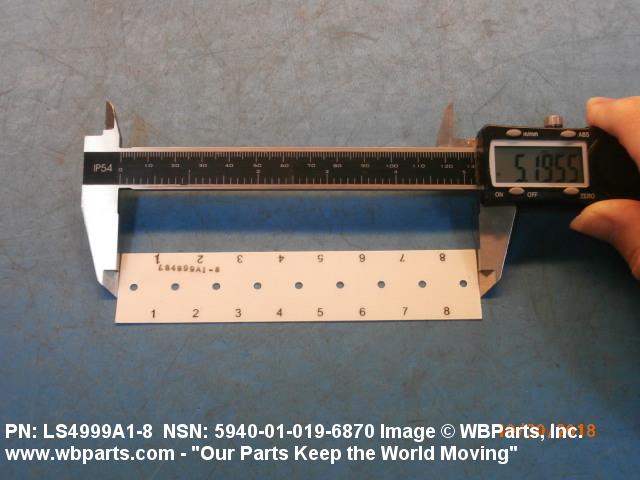

Drawings & Photos | NSN 5940-01-019-6870
Demand History | NSN 5940-01-019-6870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS4999A1-8 | 2023-04-116 | 2 | DIBBS |
| 5940-01-019-6870 | 2021-11-307 | 42 | MY |
| LS4999A18 | 2021-09-273 | 42 | Malaysia |
| LS4999A1-8 | 2021-09-245 | 1 | DIBBS |
| LS4999A18 | 2021-05-133 | 4 | Malaysia |
| LS4999A18 | 2018-10-295 | 1 | United States |
Cross Reference | NSN 5940-01-019-6870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS4999A1-8 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-019-6870
Related Products | NSN 5940-01-019-6870
Technical Data | NSN 5940-01-019-6870
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS CLOTH |
| INSCRIPTION | 1 2 3 4 5 6 7 8 |
| MARKING DESIGNATION | LEGEND |
| FEATURES PROVIDED | MOUNTING HOLE |
| DESIGN SHAPE | RECTANGLE |
| LENGTH | 5.786 INCHES NOMINAL |
| THICKNESS | 0.013 INCHES NOMINAL |
| WIDTH | 1.060 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5940-01-019-6870
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030740 | BBC PLATE SHEET R STRIP NOI |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | DL | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-019-6870
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
