NSN 5940-01-019-8561 AN/URC-38FC4, ANURA38AND38AFC4, ANURC38FC4
Product Details | FEEDTHRU TERMINAL
5940-01-019-8561 A terminal designed to be mounted on a chassis or other partition, and having through connected wire mounting facilities. It may or may not be insulated. It is fabricated into a single item whose parts are not separable. For items whose parts are separable, see INSULATOR, FEEDTHRU.
Part Alternates: AN/URC-38FC4, ANURA38AND38AFC4, ANURC38FC4, FC4ANURA 38 AND ANURA38A, FC4ANURA38ANDANURA38A, TA7073003, TA-7073-003, TA70733, TA-7073-3, 5940-01-019-8561, 01-019-8561, 5940010198561, 010198561
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 APR 1976 | 01-019-8561 | 34672 ( TERMINAL, FEEDTHRU ) |

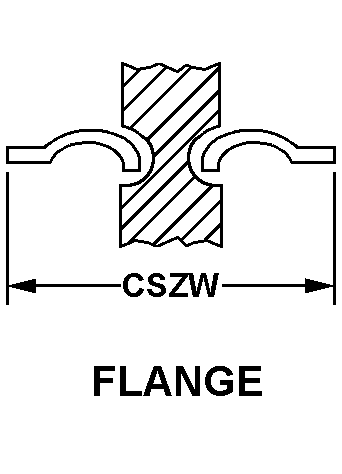

Drawings & Photos | NSN 5940-01-019-8561
Cross Reference | NSN 5940-01-019-8561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN/URC-38FC4 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| ANURA38AND38AFC4 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| FC4ANURA 38 AND ANURA38A | 24558 | NAVAL SEA COMBAT SYSTEMS ENGINEERING STATION |
| TA-7073-003 | 05327 | GENERAL CERAMICS INC NATIONAL BERYLLIA DIV |
| TA-7073-003 | 1U1C3 | AMERICAN BERYLLIA, INC |
| TA-7073-3 | 05327 | GENERAL CERAMICS INC NATIONAL BERYLLIA DIV |
| TA-7073-3 | 1U1C3 | AMERICAN BERYLLIA, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-019-8561
Technical Data | NSN 5940-01-019-8561
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A20 NONTUBULAR ROUND |
| OVERALL HEIGHT | 6.120 INCHES |
| OVERALL DIAMETER | 1.250 INCHES |
| FIRST END TERMINAL LENGTH | 0.625 INCHES |
| SECOND END TERMINAL LENGTH | 0.625 INCHES |
| MOUNTING METHOD STYLE | D32 FLANGE |
| MOUNTING FLANGE DIAMETER | 3.000 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | WHITE |
| MATERIAL | BERYLLIUM OXIDE INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | NICKEL OVERALL EXCEPT INSULATION SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-01-019-8561
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | N1 | Not Regulated as Hazardous NON HAZARDOUS |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-019-8561
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
