NSN 5940-01-451-4414 NAS1063A20500BB, NAS1063A20-500BB, 01-451-4414
Product Details | TERMINAL BOARD MARKER STRIP
5940-01-451-4414 An item, generally of insulating material, designed to identify terminal position on terminal boards. Its thickness is small in comparison to its length and width. They can be printed to show terminal designations by numbers, letters, symbols, or any combination thereof. It may serve as insulation between terminal board and chassis. Excludes MARKER, IDENTIFICATION and PLATE, DESIGNATION.
Part Alternates: NAS1063A20500BB, NAS1063A20-500BB, 5940-01-451-4414, 01-451-4414, 5940014514414, 014514414
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 DEC 1997 | 01-451-4414 | 35897 ( MARKER STRIP, TERMINAL BOARD ) |

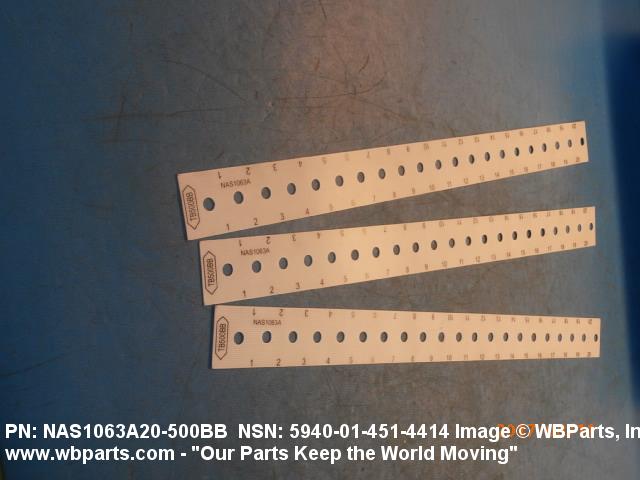

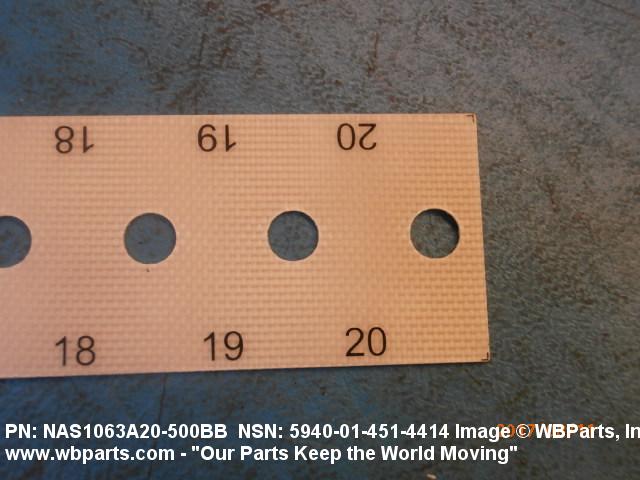

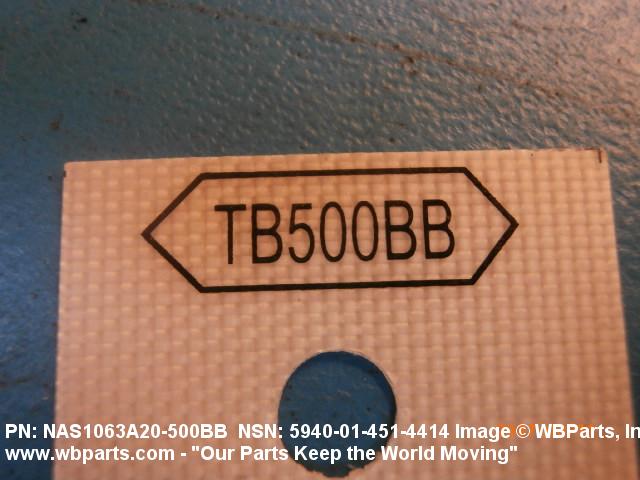

Drawings & Photos | NSN 5940-01-451-4414
Demand History | NSN 5940-01-451-4414
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-451-4414 | 2022-06-171 | 5 | US |
| 5940-01-451-4414 | 2018-03-82 | 4 | US |
| 5940-01-451-4414 | 2017-06-177 | 7 | United States |
| NAS1063A20500BB | 2016-04-104 | 7 | US |
Cross Reference | NSN 5940-01-451-4414
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1063A20-500BB | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-451-4414
Technical Data | NSN 5940-01-451-4414
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-997, TYPE GSG, CLASS H MIL SPEC SINGLE MATERIAL RESPONSE |

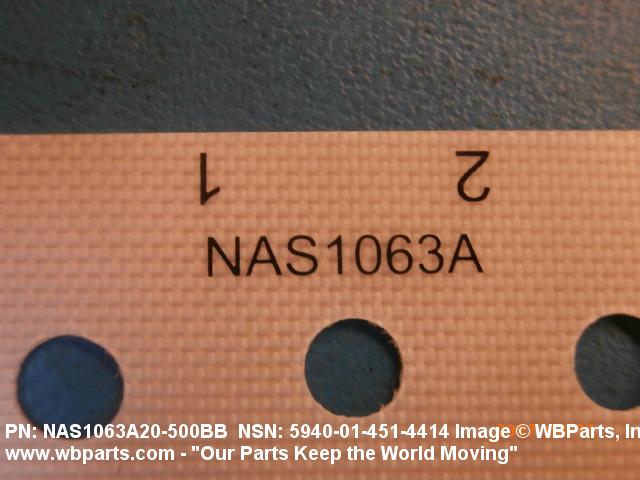

| INSCRIPTION | NAS1063, 500BB |
| INSCRIPTION COLOR | BLACK |
| MARKING DESIGNATION | LEGEND |

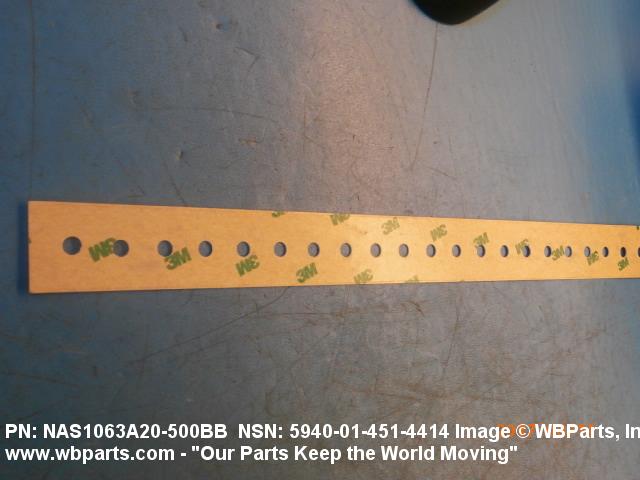

| FEATURES PROVIDED | SELF-ADHESIVE AND PRESSURE SENSITIVE ADHESIVE TAPE AND HEAT SENSITIVE ADHESIVE |
| ADHESIVE LOCATION | BACK |
| DESIGN SHAPE | RECTANGLE |

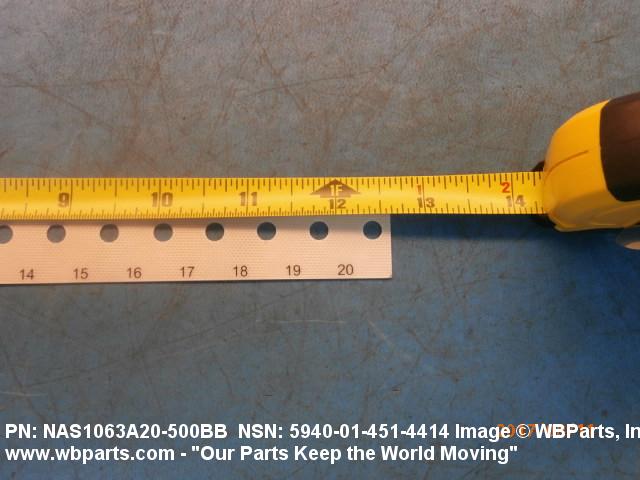

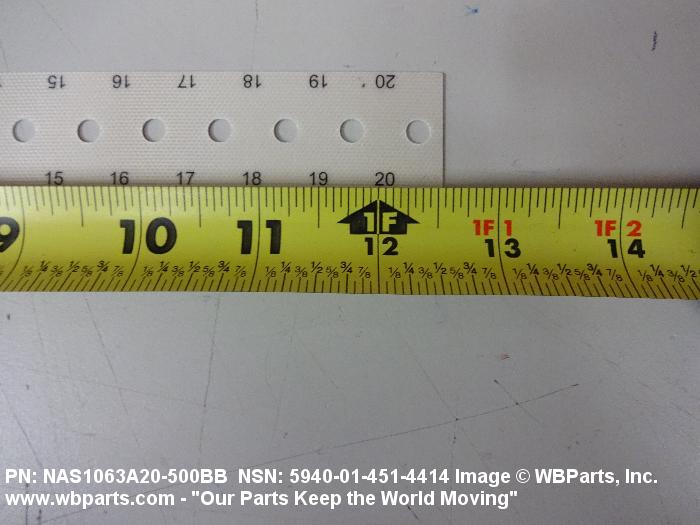

| LENGTH | 11.995 INCHES MINIMUM AND 12.015 INCHES MAXIMUM |

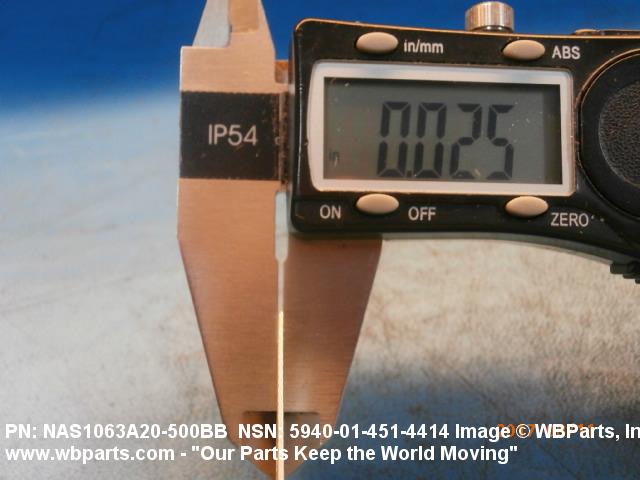

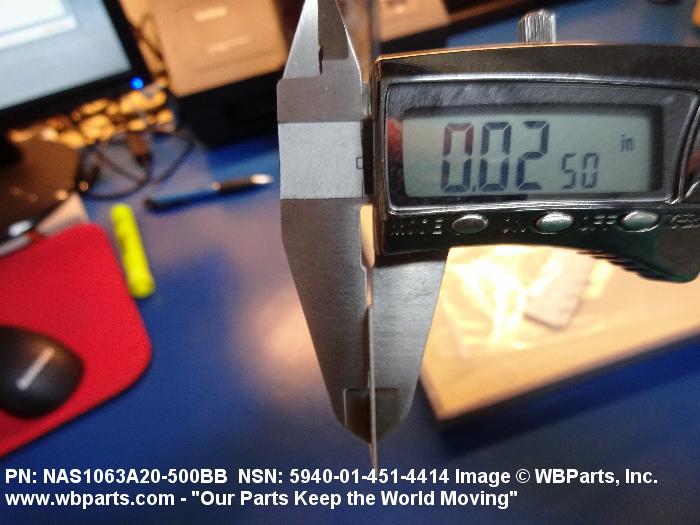

| THICKNESS | 0.012 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |

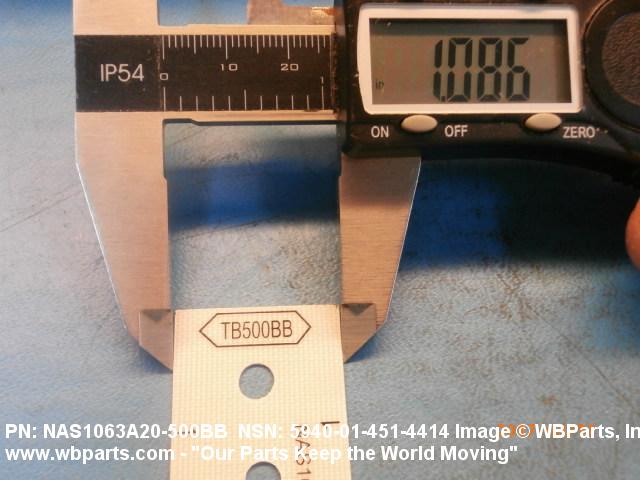

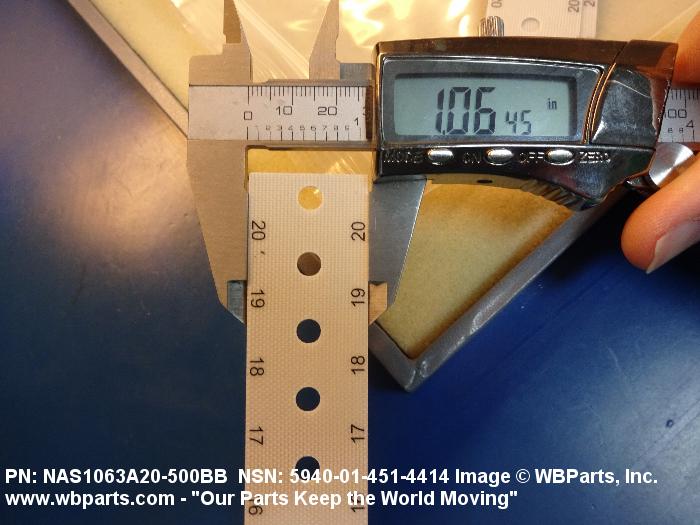

| WIDTH | 1.062 INCHES NOMINAL |
| SPECIAL FEATURES | ALL NUMERALS AND LETTERS SHALL BEGOTHIC STYLE |
| END ITEM IDENTIFICATION | USED ON C130-J HERCULES AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5940-01-451-4414
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
