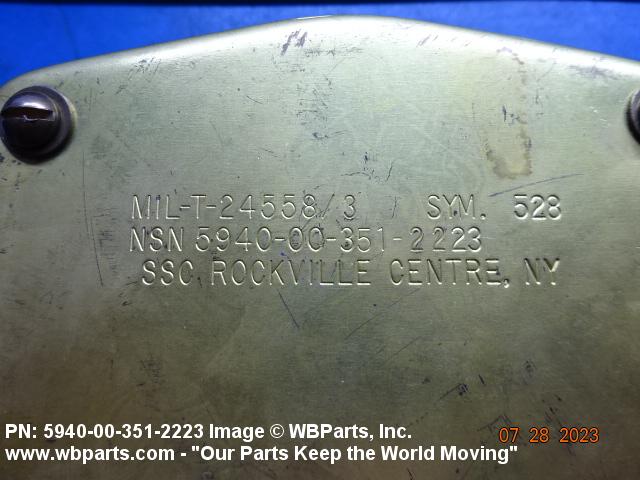

NSN 5940-00-351-2223 M245583528, M24558-3-528, TTB102

Product Details | TERMINAL BOX

5940-00-351-2223 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.

Part Alternates: M245583528, M24558-3-528, TTB102, T-TB10-2, 4014677001ITEM13, 401-4677001ITEM13, 4014677187ITEM4, 401-4677187ITEM4, 6-CB10C.2, 6CB10C2, 6TB102, 6TB10-2, 7044685254ITEM18, 704-4685254ITEM18, 9000S620274018REV0, 9000S6202-74018REV0, 9000S6202F74018, 5940-00-351-2223, 00-351-2223, 5940003512223, 003512223

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-351-2223	00452 ( TERMINAL BOX )

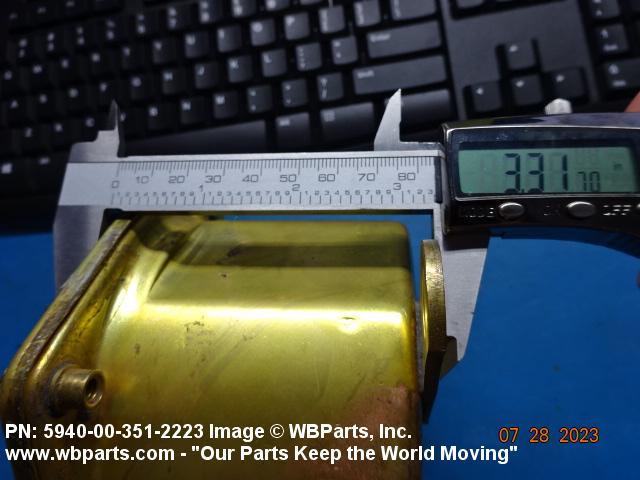

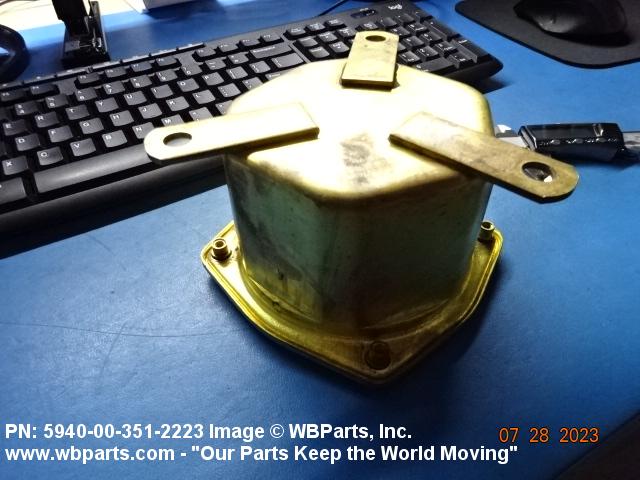

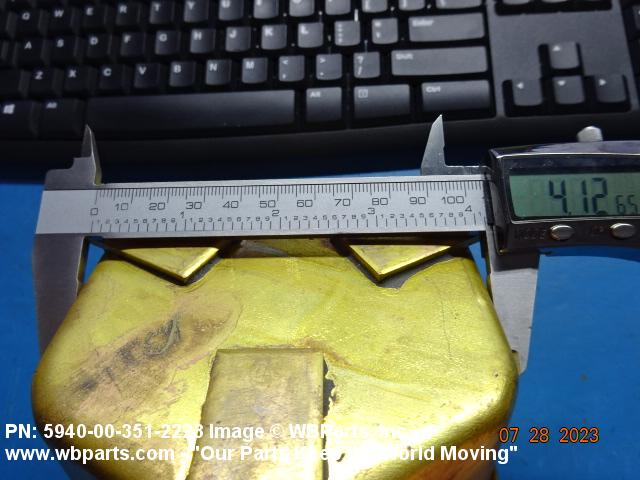

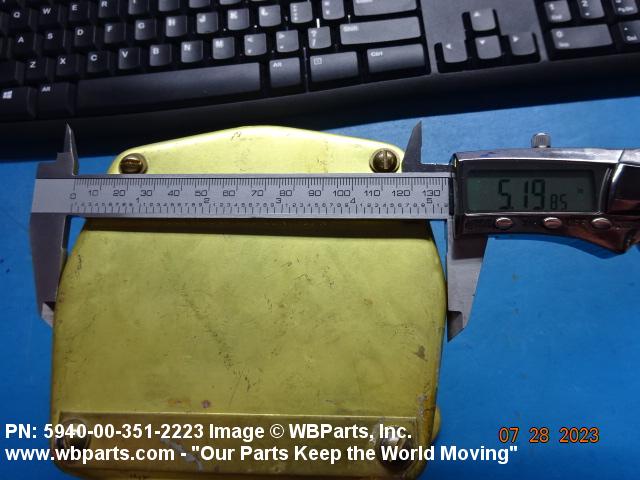

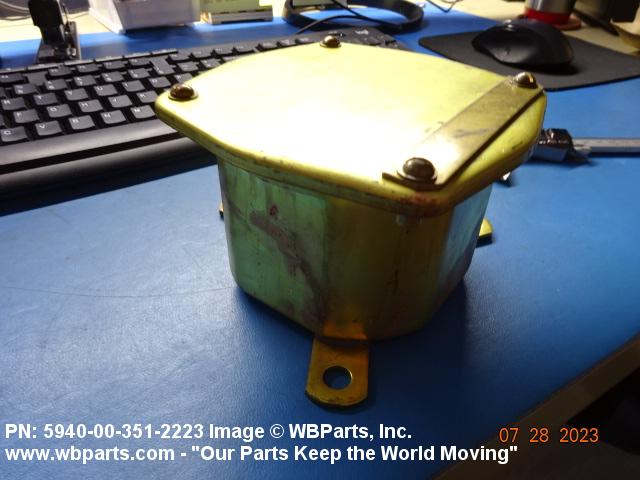

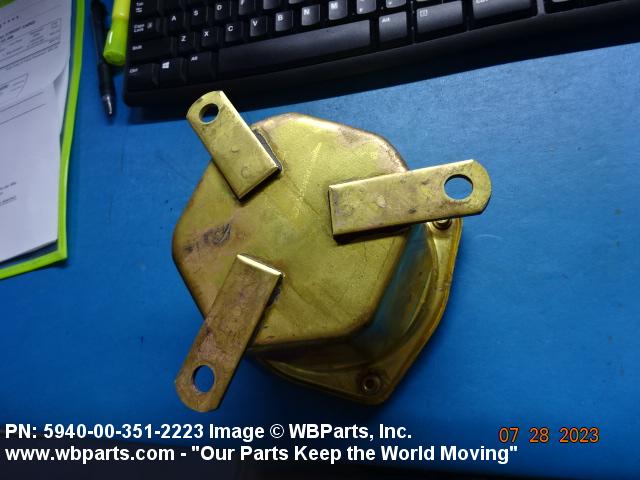

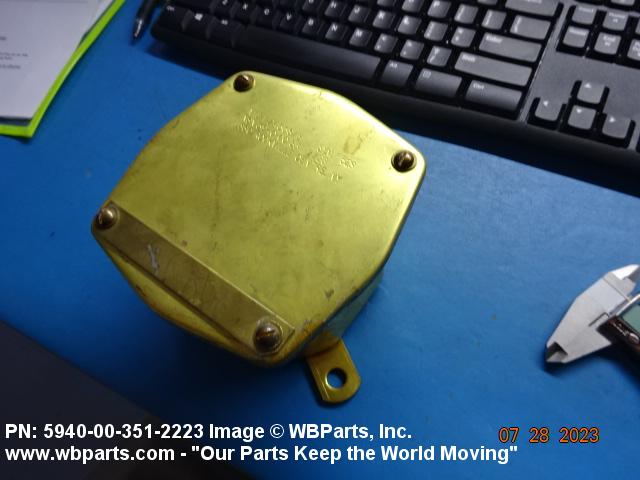

Drawings & Photos | NSN 5940-00-351-2223

Part Number	Request Date	QTY	Origin
5940-00-351-2223	2024-08-215	100	ES
5940-00-351-2223	2023-07-202	1	United States
5940-00-351-2223	2023-07-199	1	United States
5940-00-351-2223	2023-03-89	4	United States
5940-00-351-2223	2023-02-52	3	United States
5940-00-351-2223	2023-02-45	5	us
5940-00-351-2223	2022-08-228	4	US
5940-00-351-2223	2022-08-228	24	United States
5940-00-351-2223	2020-01-17	44	us
5940-00-351-2223	2018-05-148	83	DIBBS
5940-00-351-2223	2018-05-127	1	United States
5940-00-351-2223	2018-02-38	250	DIBBS
5940-00-351-2223	2018-02-33	1	DIBBS-RFPs
5940-00-351-2223	2017-06-179	1	Japan
5940-00-351-2223	2014-05-129	4	United States
5940-00-351-2223	2014-03-67	10	US
5940-00-351-2223	2012-07-209	1	United States
5940-00-351-2223	2012-05-124	2	United States
M245583528	2011-01-21	23	United States
5940-00-351-2223	2008-06-165	601	DIBBS

Cross Reference | NSN 5940-00-351-2223

Part Number	Cage Code	Manufacturer
401-4677001ITEM13	80064	NAVAL SHIP SYSTEMS COMMAND
401-4677187ITEM4	80064	NAVAL SHIP SYSTEMS COMMAND
6-CB10C.2	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
6CB10C2	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
6TB10-2	80064	NAVAL SHIP SYSTEMS COMMAND
704-4685254ITEM18	80064	NAVAL SHIP SYSTEMS COMMAND
9000S6202-74018REV0	80064	NAVAL SHIP SYSTEMS COMMAND
9000S6202F74018	80064	NAVAL SHIP SYSTEMS COMMAND
M24558-3-528	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
T-TB10-2	53711	NAVAL SEA SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-351-2223

Compare

Related Products | NSN 5940-00-351-2223

5940-00-351-2224, 5940-00-351-2225, 5940-00-351-2226, 5940-00-351-2227, 5940-00-351-2228

Technical Data | NSN 5940-00-351-2223

Characteristic	Specifications

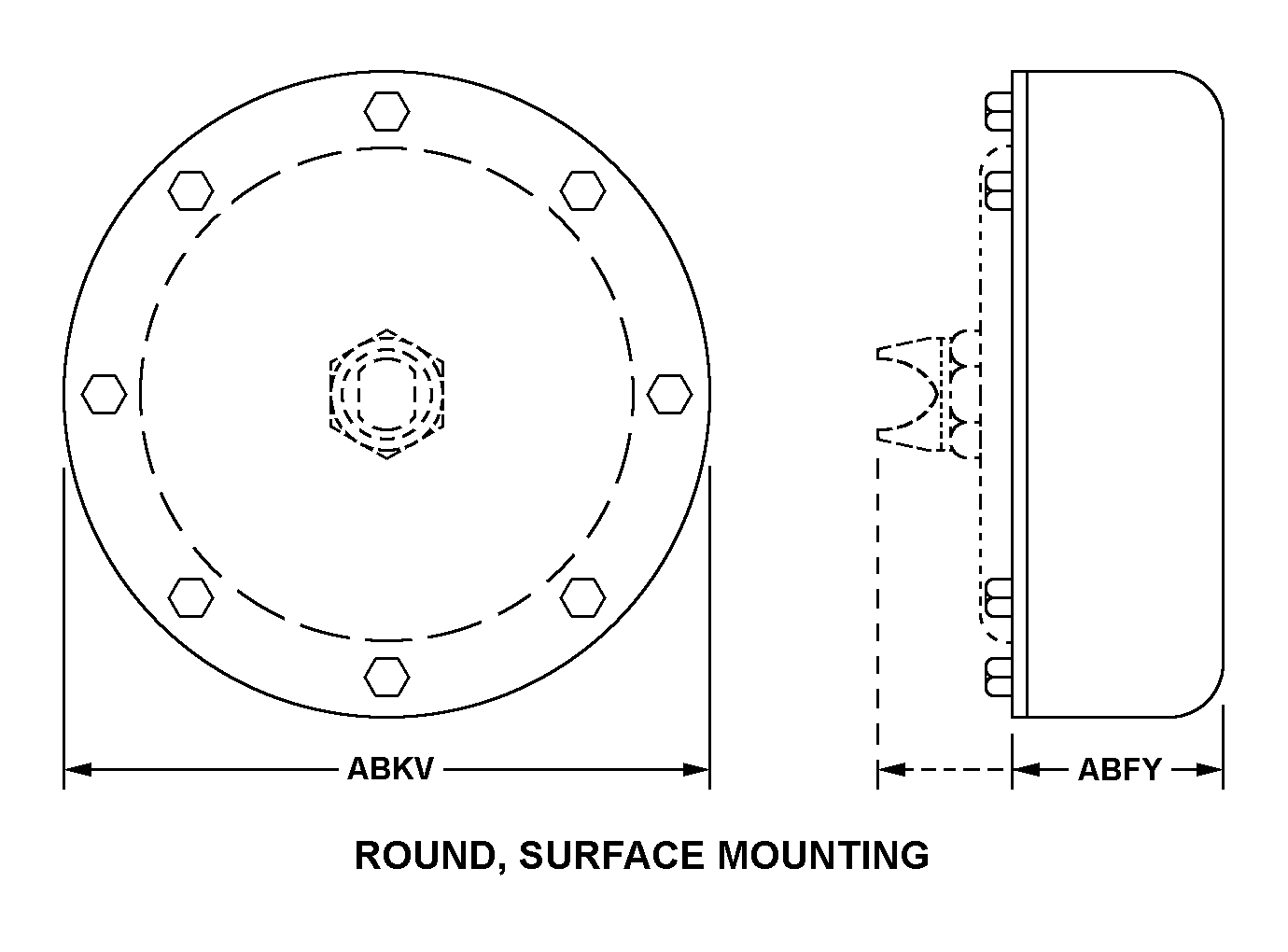

STYLE DESIGNATOR	2A ROUND, SURFACE MOUNTING
OVERALL DEPTH	3.500 INCHES NOMINAL
OUTSIDE DIAMETER	5.688 INCHES NOMINAL
MATERIAL	BRASS
MOUNTING METHOD	BRACKET WITH HOLE

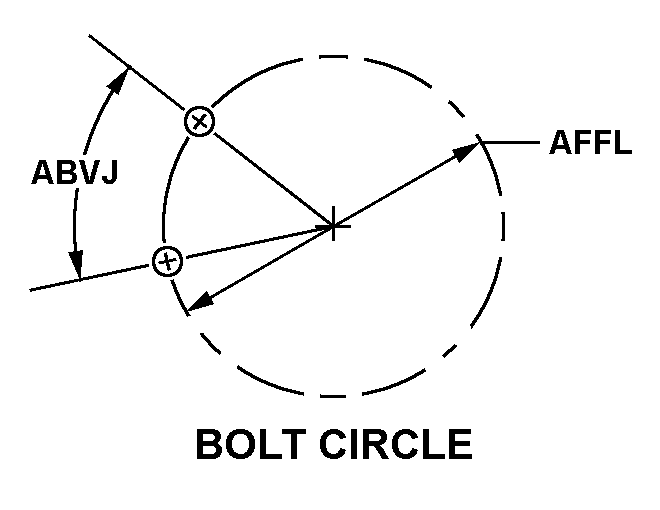

STANDARD MOUNTING PATTERN DESIGNATOR	4C BOLT CIRCLE
ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG	120.0
MOUNTING BOLT CIRCLE DIAMETER	5.625 INCHES NOMINAL

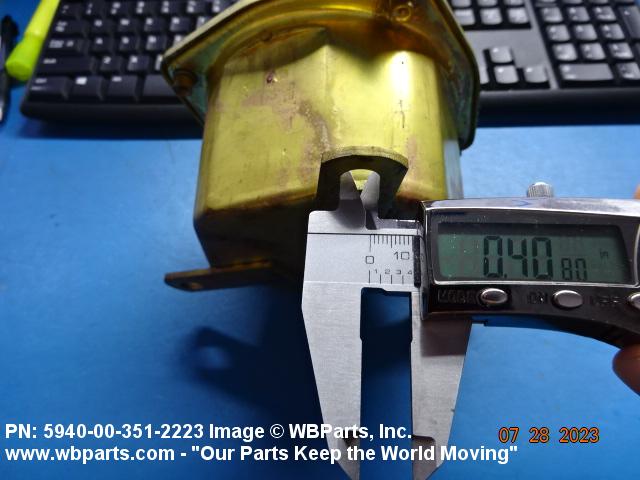

UNTHREADED MOUNTING HOLE DIAMETER	0.406 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY	10 THREADED STUD
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	SUBMERSIBLE-NEMA TYPE 6

Restrictions/Controls & Freight Information | NSN 5940-00-351-2223

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063160	SWITCH BOXES/ELEC ENCLOSURES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5940-00-351-2223

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
