NSN 5940-01-623-8050 00810222, 008-10222 , 11463235
Product Details | TERMINAL BOX
5940-01-623-8050 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.
Part Alternates: 00810222, 008-10222 , 11463235 , 5940-01-623-8050, 01-623-8050, 5940016238050, 016238050
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2013337 | 01-623-8050 | 00452 ( TERMINAL BOX ) |

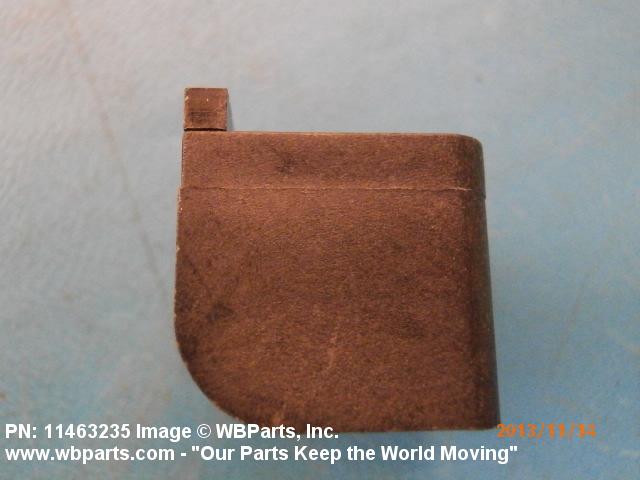

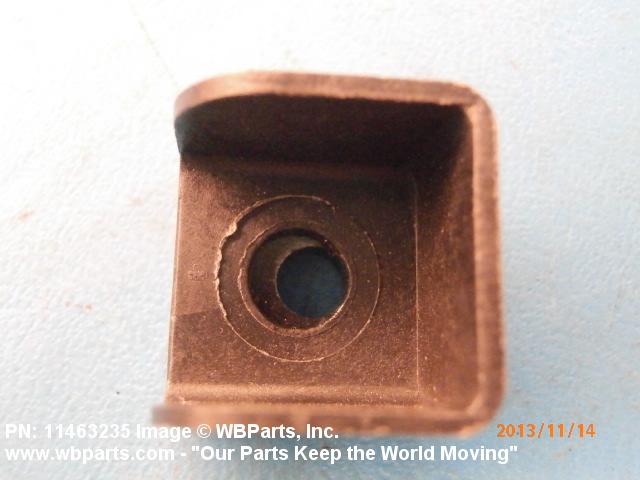

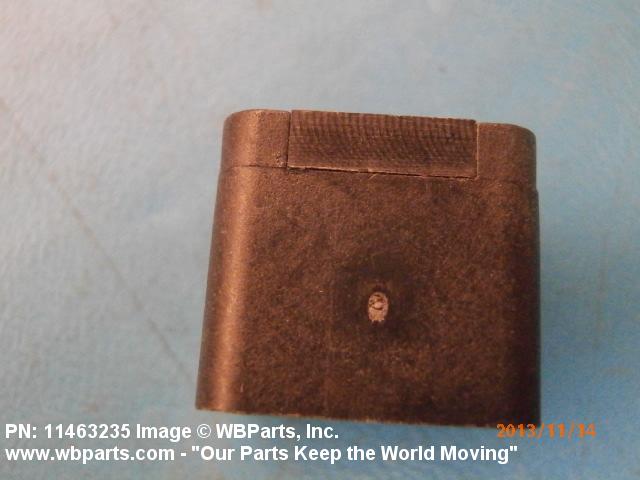

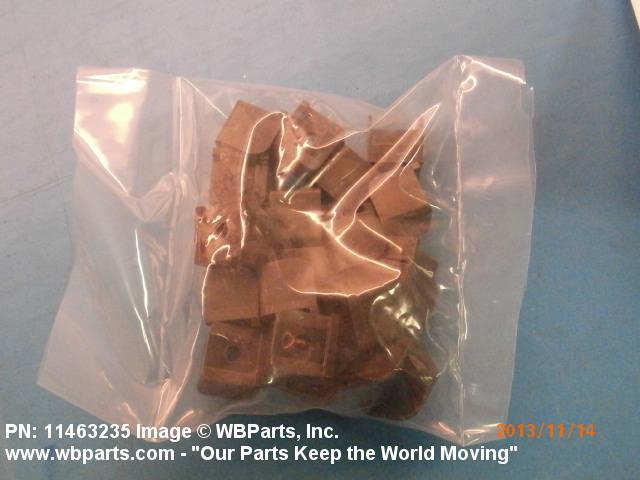

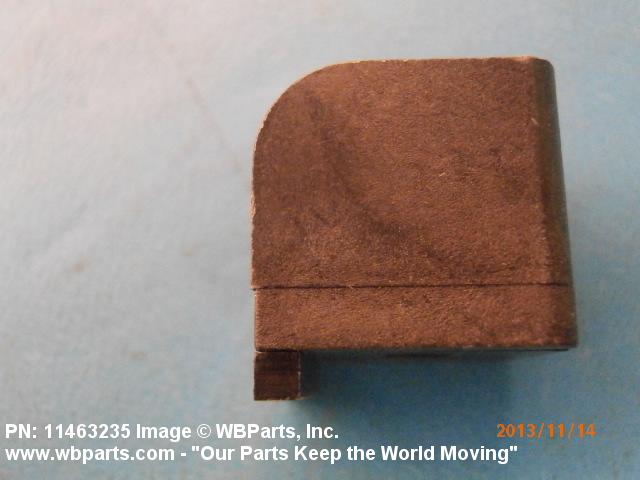

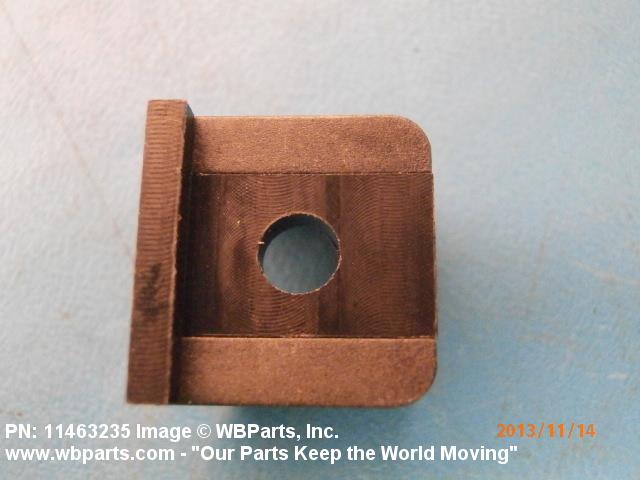

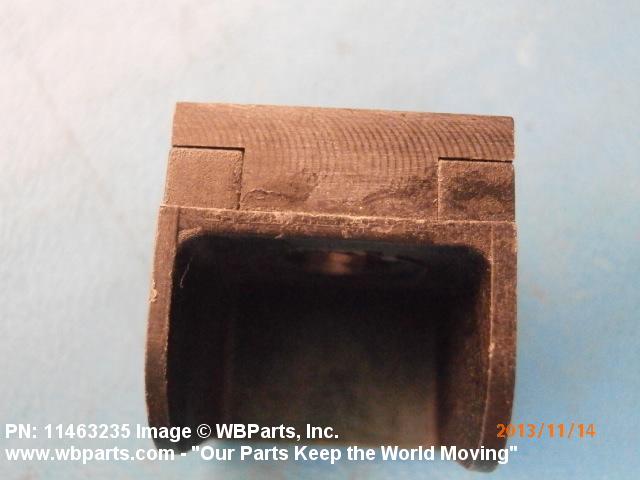

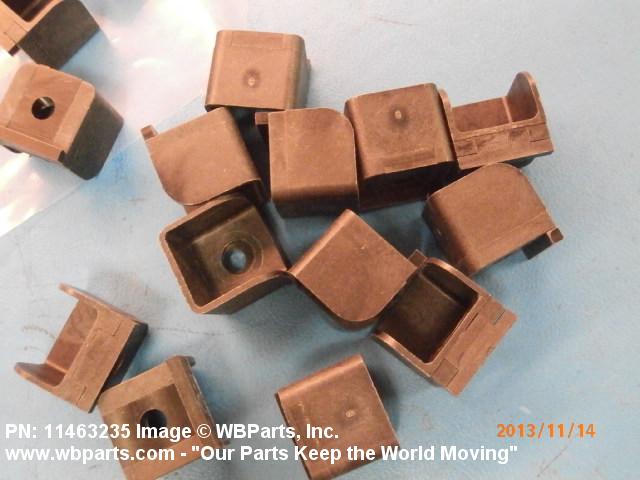

Drawings & Photos | NSN 5940-01-623-8050
Demand History | NSN 5940-01-623-8050
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-623-8050 | 2019-01-08 | 133 | DIBBS |
| 5940-01-623-8050 | 2018-12-350 | 74 | DIBBS |
| 5940-01-623-8050 | 2018-12-339 | 72 | DIBBS |
| 5940-01-623-8050 | 2018-07-210 | 72 | DIBBS |
| 5940-01-623-8050 | 2018-05-151 | 72 | DIBBS |
| 5940-01-623-8050 | 2018-03-65 | 72 | DIBBS |
| 5940-01-623-8050 | 2017-08-240 | 72 | DIBBS |
| 11463235 | 2013-10-276 | 31 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-623-8050
Technical Data | NSN 5940-01-623-8050
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SQUARE, SURFACE MOUNTING |

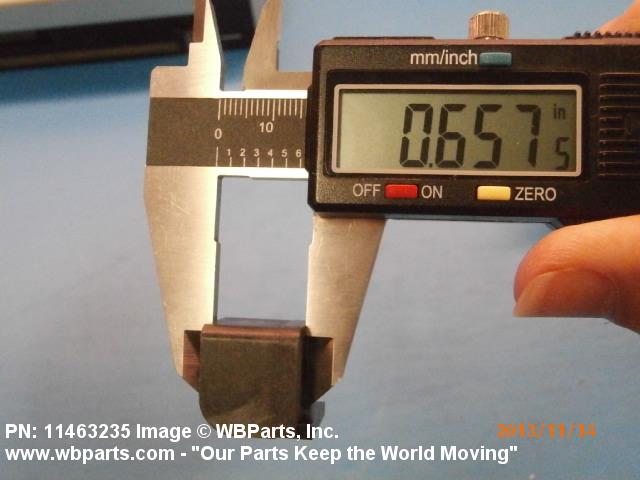

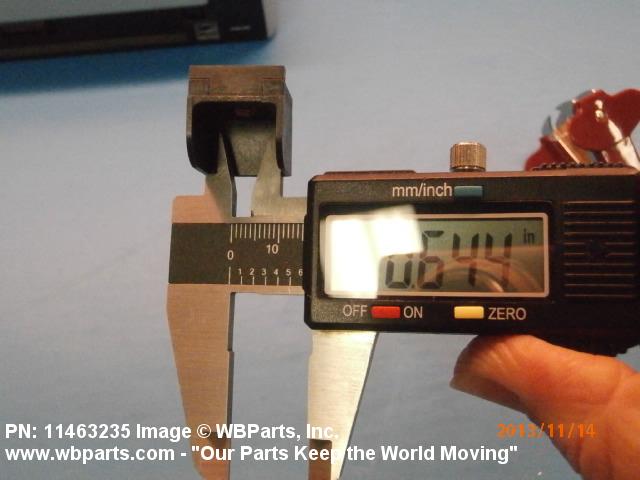

| OVERALL DEPTH | 0.65 INCHES NOMINAL |

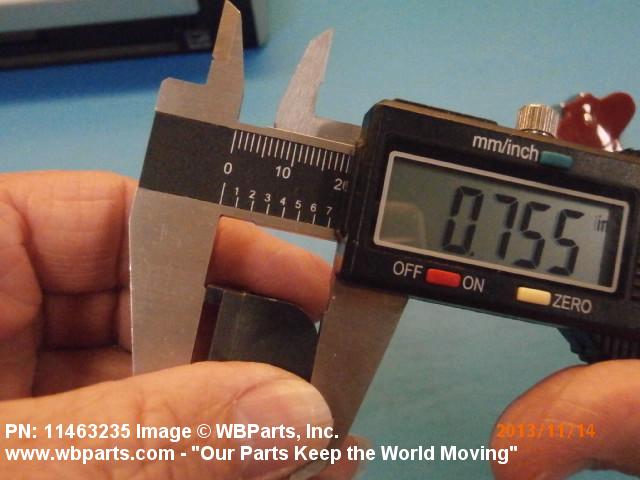

| OVERALL HEIGHT | 0.718 INCHES NOMINAL |

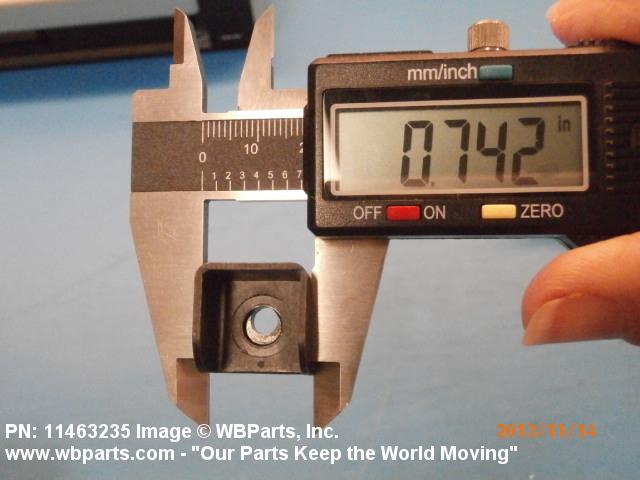

| OVERALL WIDTH | 0.740 INCHES MINIMUM AND |
| MATERIAL | PLASTIC |

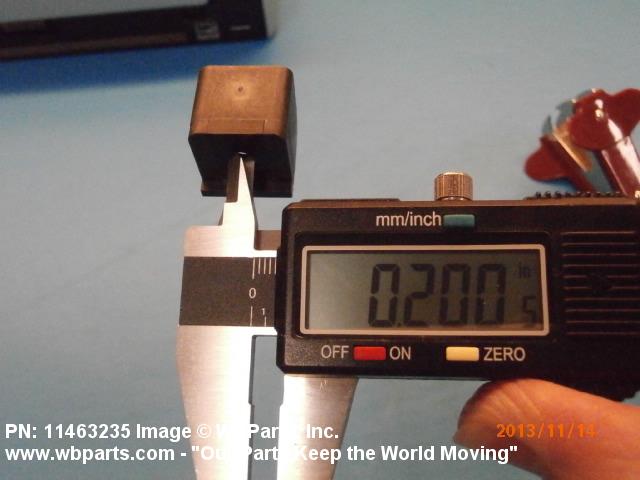

| CABLE ENTRANCE DIAMETER | 0.20 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL IS MOLDING PLASTIC, TYPE GPT-30F IN ACCORDANCE WITH MIL-M-24519;COLOR SHALL BE OPTIONAL;REMOVE ALL FLASH;SPECIFICATION CONTROL DRAWING |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TERMINAL BARRIER |
Restrictions/Controls & Freight Information | NSN 5940-01-623-8050
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-623-8050
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
