NSN 5940-00-351-2225 M24558/9-525, M245589525, MIL-T-24558/9

Product Details | TERMINAL BOX

5940-00-351-2225 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.

Part Alternates: M24558/9-525, M245589525, MIL-T-24558/9, MILT245589, 36TB24C2, 3-6TB24C2, 401-2048560 PIECE 10, 4012048560PIECE10, 9000S620274134REV0TYPE36TB24C2, 9000S6202-74134REV0TYPE3-6TB24C2, 9000S6202F74134, 5940-00-351-2225, 00-351-2225, 5940003512225, 003512225

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-351-2225	00452 ( TERMINAL BOX )

Drawings & Photos | NSN 5940-00-351-2225

Part Number	Request Date	QTY	Origin
5940-00-351-2225	2023-02-45	5	us
5940-00-351-2225	2021-02-46	42	DIBBS
5940-00-351-2225	2020-04-121	3	US
5940-00-351-2225	2018-09-267	31	DIBBS
5940-00-351-2225	2018-02-53	51	DIBBS
5940-00-351-2225	2016-06-159	48	DIBBS
5940-00-351-2225	2015-10-301	43	DIBBS
5940-00-351-2225	2015-01-07	46	DIBBS
5940-00-351-2225	2013-07-192	30	DIBBS
5940-00-351-2225	2009-12-344	22	DIBBS
5940-00-351-2225	2009-12-339	22	DIBBS
5940-00-351-2225	2009-06-166	36	DIBBS
5940-00-351-2225	2008-12-338	22	DIBBS
5940-00-351-2225	2008-08-218	12	DIBBS

Cross Reference | NSN 5940-00-351-2225

Part Number	Cage Code	Manufacturer
3-6TB24C2	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
401-2048560 PIECE 10	80064	NAVAL SHIP SYSTEMS COMMAND
9000S6202-74134REV0TYPE3-6TB24C2	80064	NAVAL SHIP SYSTEMS COMMAND
9000S6202F74134	80064	NAVAL SHIP SYSTEMS COMMAND
M24558/9-525	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-T-24558/9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-351-2225

Compare

Related Products | NSN 5940-00-351-2225

5940-00-351-2226, 5940-00-351-2227, 5940-00-351-2228, 5940-00-351-2229, 5940-00-351-3275

Technical Data | NSN 5940-00-351-2225

Characteristic	Specifications
STYLE DESIGNATOR	6A RECTANGULAR, SURFACE MOUNTING
OVERALL DEPTH	7.625 INCHES NOMINAL
OVERALL HEIGHT	13.375 INCHES NOMINAL
OVERALL WIDTH	11.375 INCHES NOMINAL
MATERIAL	BRASS
SURFACE TREATMENT	ENAMEL
MOUNTING METHOD	BRACKET WITH HOLE

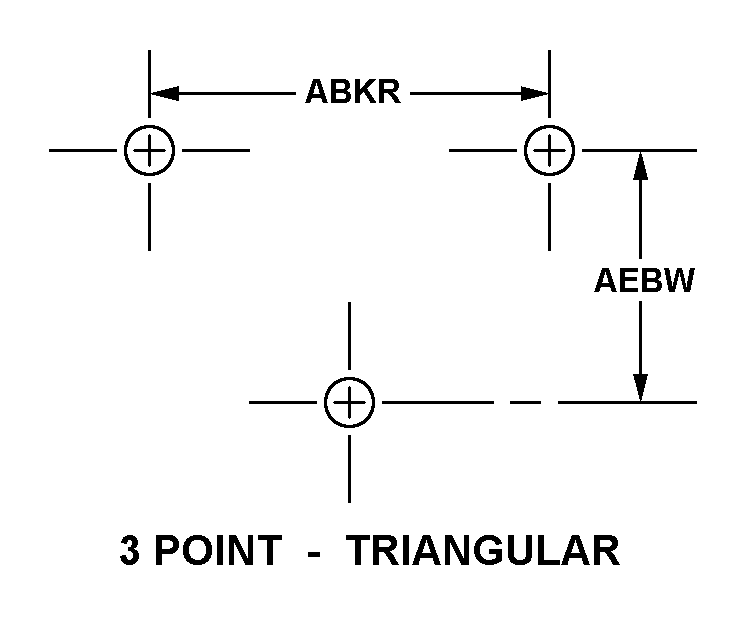

STANDARD MOUNTING PATTERN DESIGNATOR	5C 3 POINT-TRIANGULAR
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	6.250 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	9.438 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER	0.562 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY	72 SCREW
GROUNDING FOOT TERMINAL QUANTITY	ANY ACCEPTABLE
GROUNDING LINK TERMINAL QUANTITY	ANY ACCEPTABLE
FURNISHED ITEMS AND QUANTITY	3 TERMINAL BOARD
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	SUBMERSIBLE-NEMA TYPE 6
FEATURES PROVIDED	COVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-T-24558/9
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M24558/9-525
