NSN 5935-01-525-5870 92309553006, 9230-9553-006, 01-525-5870
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-525-5870 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 92309553006, 9230-9553-006, 5935-01-525-5870, 01-525-5870, 5935015255870, 015255870
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 NOV 2004 | 01-525-5870 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-525-5870
Cross Reference | NSN 5935-01-525-5870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9230-9553-006 | 19505 | RADIALL USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-525-5870
Technical Data | NSN 5935-01-525-5870
| Characteristic | Specifications |
|---|---|

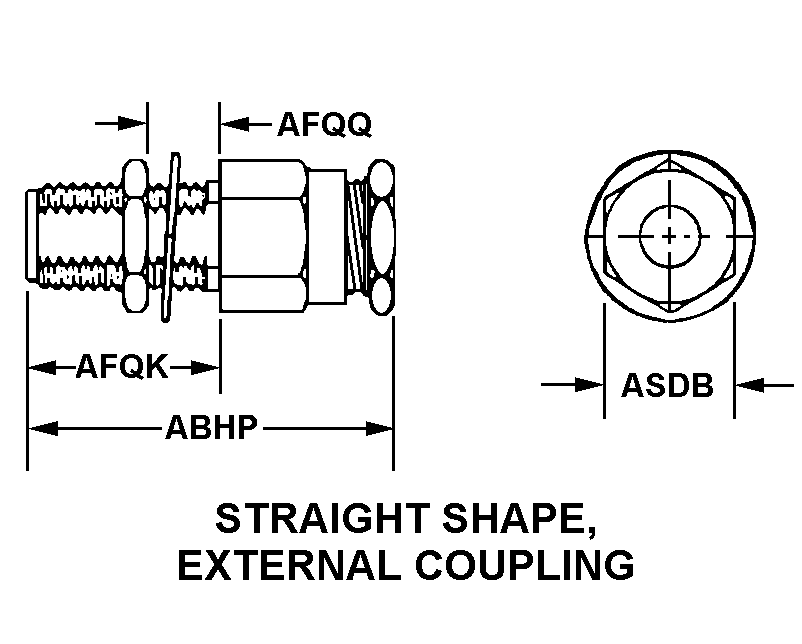

| BODY STYLE | 28L STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 0.830 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.450 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.344 INCHES NOMINAL |
| MOUNTING METHOD | BUSHING AND JAM MUT |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL SURFACE TREATMENT | PASSIVATE |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABDN SMA SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | ACCEPTS RG58, RG141, RG303, M17/111, AND M17/155 CABLE TYPES. |
| III END ITEM IDENTIFICATION | CONSOLIDATED AUTOMATED SUPPORT SYSTEM (CASS) |
