Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-097-4853 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 0008000022, 000800-0022, 92251430, 922514-30, 5935-01-097-4853, 01-097-4853, 5935010974853, 010974853
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUL 1980 | 01-097-4853 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

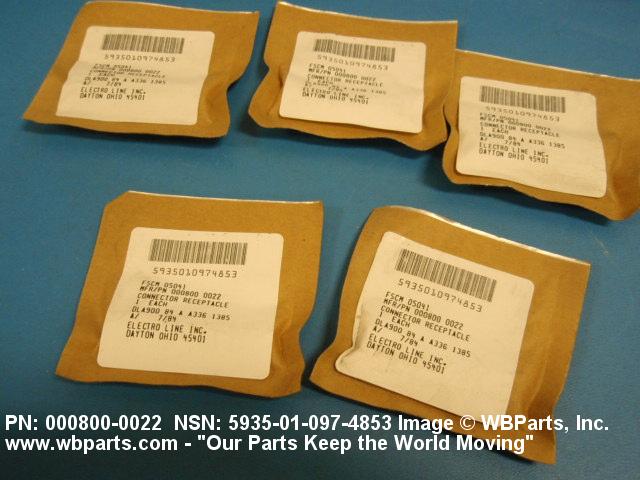

Drawings & Photos | NSN 5935-01-097-4853
Demand History | NSN 5935-01-097-4853
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-097-4853 | 2011-07-194 | 12 | us |
| 92251430 | 2011-03-74 | 50 | US |
| 5935-01-097-4853 | 2009-11-316 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-097-4853
Related Products | NSN 5935-01-097-4853
Technical Data | NSN 5935-01-097-4853
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 19Q STRAIGHT TYPE |
| OVERALL LENGTH | 2.350 INCHES NOMINAL |
| OVERALL HEIGHT | 0.423 INCHES NOMINAL |
| OVERALL WIDTH | 0.300 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.150 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.097 INCHES MINIMUM AND 0.102 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-200/8 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | GOLD AND ANODIZE |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AAAE 2 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYAMIDE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,TY 1 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 30 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613,COMP 260,HALF HARD FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | NICKEL AND GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC 1ST TREATMENT RESPONSE AND MIL-G-45204,TY 2,CL 1 MIL SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SHOCK RESISTANT AND SALT WATER RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.130 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT AND SHELL SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-097-4853
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
