NSN 5935-01-525-6078 DPX2NA26MS32W4MS33B3900, DPX2NA-26MS32W4MS33B-3900, 01-525-6078
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-525-6078 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPX2NA26MS32W4MS33B3900, DPX2NA-26MS32W4MS33B-3900, 5935-01-525-6078, 01-525-6078, 5935015256078, 015256078
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 NOV 2004 | 01-525-6078 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-525-6078
Cross Reference | NSN 5935-01-525-6078
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DPX2NA-26MS32W4MS33B-3900 | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-525-6078
Technical Data | NSN 5935-01-525-6078
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18G STRAIGHT SHAPE |
| OVERALL LENGTH | 24.2 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 78.9 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 50.8 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 70.5 MILLIMETERS MINIMUM AND 70.8 MILLIMETERS MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 36.5 MILLIMETERS NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 19.4 MILLIMETERS NOMINAL |
| MOUNTING METHOD | BUSHING |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | 3 POLARIZATION POSTS |
| ROUND GUIDE TYPE AND LOCATION | SOCKET CENTER |
| MATING END QUANTITY | 2 |

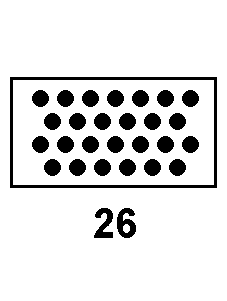

| CONTACT POSITION ARRANGEMENT STYLE | BCAF 26 ALL MATING ENDS |
| INSERT MATERIAL | COPPER ALLOY ALL MATING ENDS |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 26 ALL MATING ENDS ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-45205 MIL SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL TYPE | FEMALE TERMINAL CONNECTION ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | FRONT ALL MATING ENDS ALL CONTACT GROUPINGS |
| III OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS GOLD |
| III END ITEM IDENTIFICATION | FIXED WING AIRCRAFT C130J |
Restrictions/Controls & Freight Information | NSN 5935-01-525-6078
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
