NSN 5935-01-525-5864 E5441R4414355, 01-525-5864, 015255864
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-525-5864 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: E5441R4414355, 5935-01-525-5864, 01-525-5864, 5935015255864, 015255864
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 NOV 2004 | 01-525-5864 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-525-5864
Demand History | NSN 5935-01-525-5864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-525-5864 | 2014-04-120 | 123 | DIBBS |
| 5935-01-525-5864 | 2014-03-72 | 1 | DIBBS |
| 5935-01-525-5864 | 2014-03-65 | 1 | DIBBS |
| 5935-01-525-5864 | 2014-01-30 | 1 | DIBBS |
| 5935-01-525-5864 | 2013-06-153 | 2 | DIBBS |
| 5935-01-525-5864 | 2012-05-135 | 5 | DIBBS |
| 5935-01-525-5864 | 2011-04-110 | 1 | DIBBS |
| 5935-01-525-5864 | 2009-11-321 | 2 | DIBBS |
| 5935-01-525-5864 | 2008-09-259 | 1 | DIBBS |
| 5935-01-525-5864 | 2008-07-189 | 1 | DIBBS |
| 5935-01-525-5864 | 2006-06-156 | 1 | DIBBS |
| 5935-01-525-5864 | 2006-05-135 | 1 | DIBBS |
| 5935-01-525-5864 | 2005-12-344 | 5 | DIBBS |
Cross Reference | NSN 5935-01-525-5864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E5441R4414355 | 31461 | ELECTRO ADAPTER, INC. DBA PLATING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-525-5864
Related Products | NSN 5935-01-525-5864
Technical Data | NSN 5935-01-525-5864
| Characteristic | Specifications |
|---|---|

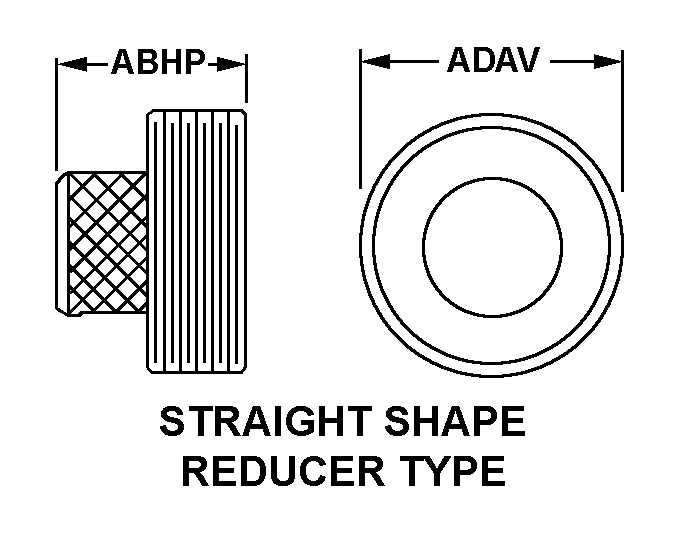

| STYLE DESIGNATOR | 6C STRAIGHT SHAPE REDUCER TYPE |
