NSN 5935-01-452-9834 M28840/10AA1S3, M2884010AA1S3, MIL-C-28840/10
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-452-9834 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M28840/10AA1S3, M2884010AA1S3, MIL-C-28840/10, MILC2884010, 5935-01-452-9834, 01-452-9834, 5935014529834, 014529834
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 FEB 1998 | 01-452-9834 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-452-9834
Demand History | NSN 5935-01-452-9834
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-452-9834 | 2019-01-15 | 29 | DIBBS |
| 5935-01-452-9834 | 2018-06-155 | 10 | DIBBS |
| 5935-01-452-9834 | 2017-07-201 | 8 | DIBBS |
| 5935-01-452-9834 | 2015-09-247 | 10 | DIBBS |
| 5935-01-452-9834 | 2015-08-236 | 10 | DIBBS |
| 5935-01-452-9834 | 2014-02-43 | 8 | DIBBS |
| 5935-01-452-9834 | 2012-06-181 | 2 | DIBBS |
| 5935-01-452-9834 | 2011-11-311 | 2 | DIBBS |
| 5935-01-452-9834 | 2011-05-123 | 2 | DIBBS |
| 5935-01-452-9834 | 2009-02-34 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-452-9834
Technical Data | NSN 5935-01-452-9834
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5G STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 2.062 INCHES NOMINAL |
| OVERALL HEIGHT | 1.003 INCHES NOMINAL |
| OVERALL WIDTH | 1.003 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.750 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.750 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.878 INCHES NOMINAL |
| MATING END QUANTITY | 1 |

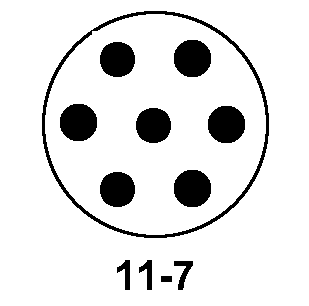

| CONTACT POSITION ARRANGEMENT STYLE | AHEV 11-7 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 7 SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 81349-MILC28840 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28840/10 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28840/10 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28840/10AA1S3 |
Restrictions/Controls & Freight Information | NSN 5935-01-452-9834
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
