NSN 5935-01-452-9844 MS3409D1812P, MS3409D18-12P , AS50151
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-452-9844 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3409D1812P, MS3409D18-12P , AS50151 , 5935-01-452-9844, 01-452-9844, 5935014529844, 014529844
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 FEB 1998 | 01-452-9844 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-452-9844
Demand History | NSN 5935-01-452-9844
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-452-9844 | 2016-07-208 | 8 | DIBBS |
| 5935-01-452-9844 | 2015-02-55 | 3 | DIBBS |
| 5935-01-452-9844 | 2015-01-15 | 3 | DIBBS |
| 5935-01-452-9844 | 2013-03-84 | 1 | DIBBS |
| 5935-01-452-9844 | 2012-06-160 | 2 | DIBBS |
| 5935-01-452-9844 | 2009-07-195 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-452-9844
Technical Data | NSN 5935-01-452-9844
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 15A ANGLE SHAPE WITH CABLE/CLAMP |
| OVERALL DIAMETER | 1.344 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 3.375 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 1.110 INCHES MAXIMUM |
| BODY ANGLE IN DEG | 135.0 |
| MATING END QUANTITY | 1 |

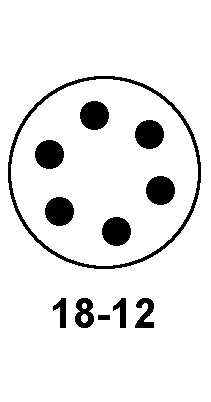

| CONTACT POSITION ARRANGEMENT STYLE | AGAH 18-12 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 6 SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS3409 GOVERNMENT STANDARD |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.030 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3409D18-12P |
