NSN 5935-01-428-2225 01-428-2225, 014282225
Product Details | ELECTRICAL CONNECTOR RETAINING PLATE
5935-01-428-2225 A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE.
Part Alternates: 5935-01-428-2225, 01-428-2225, 5935014282225, 014282225
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-428-2225 | 21538 ( PLATE, RETAINING, ELECTRICAL CONNECTOR ) |

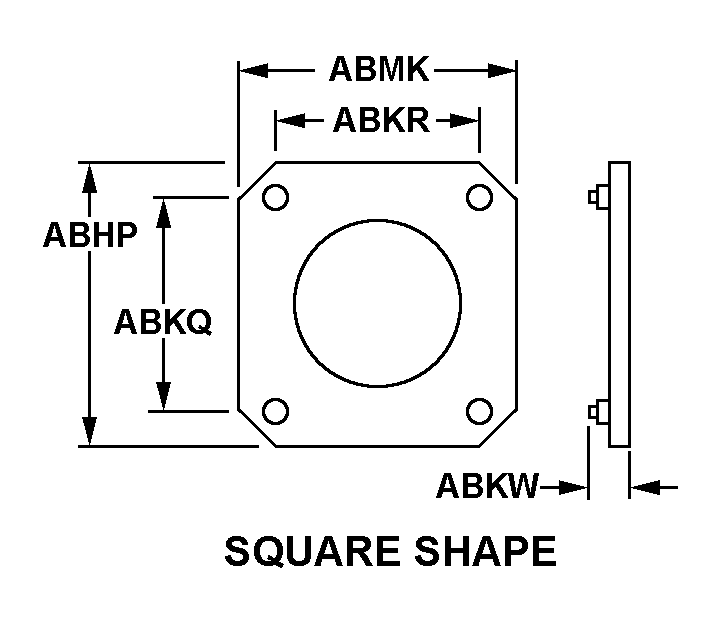

Drawings & Photos | NSN 5935-01-428-2225
Cross Reference | NSN 5935-01-428-2225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74-44031-007 | 33875 | RAYTHEON E-SYSTEMS INC |
| AT283-14C | 0A554 | ABBOTEC INC |
| CN-B0061-007 | 33875 | RAYTHEON E-SYSTEMS INC |
| FSU-14/1901 | 04967 | FASTENER SPECIALTY, INC. |
| FSU-14/19A01A | 04967 | FASTENER SPECIALTY, INC. |
| G350365-7 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| M85528/2-19A01A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-428-2225
Technical Data | NSN 5935-01-428-2225
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10J SQUARE SHAPE |
| OVERALL LENGTH | 1.192 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.906 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.906 INCHES NOMINAL |
| OVERALL HEIGHT | 0.106 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| OVERALL WIDTH | 1.192 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 CLINCH NUT |
Restrictions/Controls & Freight Information | NSN 5935-01-428-2225
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
