NSN 5935-01-078-6787 S91620CP, S916-20CP, ST3M8237

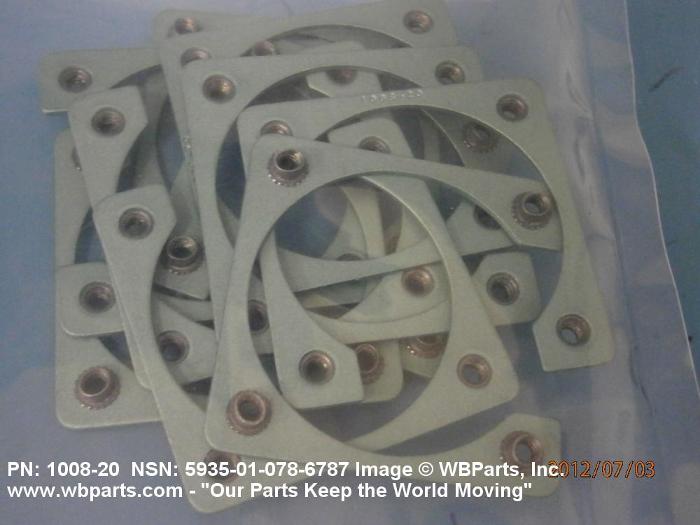

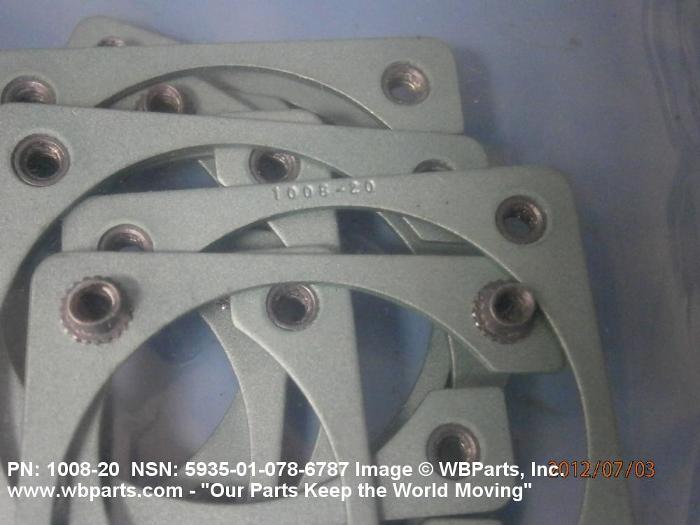

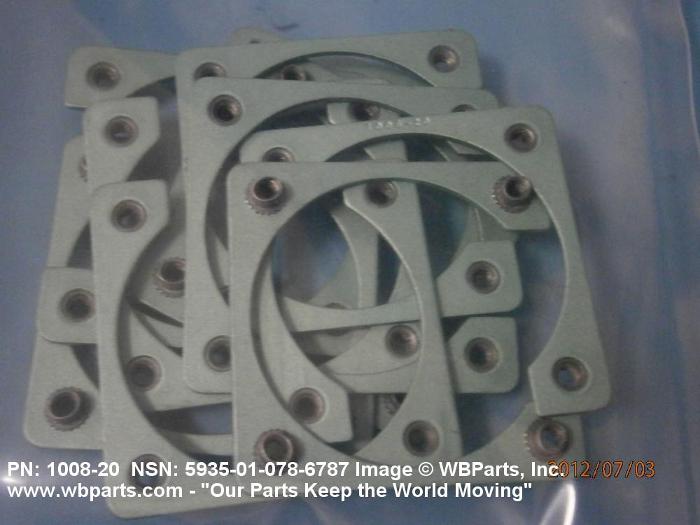

Product Details | ELECTRICAL CONNECTOR RETAINING PLATE
5935-01-078-6787 A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE.
Part Alternates: S91620CP, S916-20CP, ST3M8237, ST3M823-7, 100820, 1008-20, 10129612 , 5935-01-078-6787, 01-078-6787, 5935010786787, 010786787
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUN 1979 | 01-078-6787 | 21538 ( PLATE, RETAINING, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-078-6787
Demand History | NSN 5935-01-078-6787
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1008-20 | 2022-11-317 | 175 | DIBBS |
| S916-20CP | 2022-11-317 | 175 | DIBBS |
| ST3M823-7 | 2022-11-317 | 175 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-078-6787
Related Products | NSN 5935-01-078-6787
Technical Data | NSN 5935-01-078-6787
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10J SQUARE SHAPE |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.156 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.156 INCHES NOMINAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 NUT |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| SIZE DESIGNATION | 19 AND 20 |
| SPECIAL FEATURES | C SHAPED |
Restrictions/Controls & Freight Information | NSN 5935-01-078-6787
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
