NSN 5935-01-384-2660 DPX2MEA106S36W7S34B0001, DPX2ME-A106S36W7S-34B-0001, 74B059450201
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-384-2660 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPX2MEA106S36W7S34B0001, DPX2ME-A106S36W7S-34B-0001, 74B059450201, 74B059450-201, 5935-01-384-2660, 01-384-2660, 5935013842660, 013842660
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 DEC 1993 | 01-384-2660 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-384-2660
Demand History | NSN 5935-01-384-2660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74B059450-201 | 2019-04-94 | 1 | DIBBS |
| DPX2ME-A106S36W7S-34B-0001 | 2019-04-94 | 1 | DIBBS |
| 74B059450-201 | 2019-03-78 | 1 | DIBBS |
| DPX2ME-A106S36W7S-34B-0001 | 2019-03-78 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-384-2660
Technical Data | NSN 5935-01-384-2660
| Characteristic | Specifications |
|---|---|

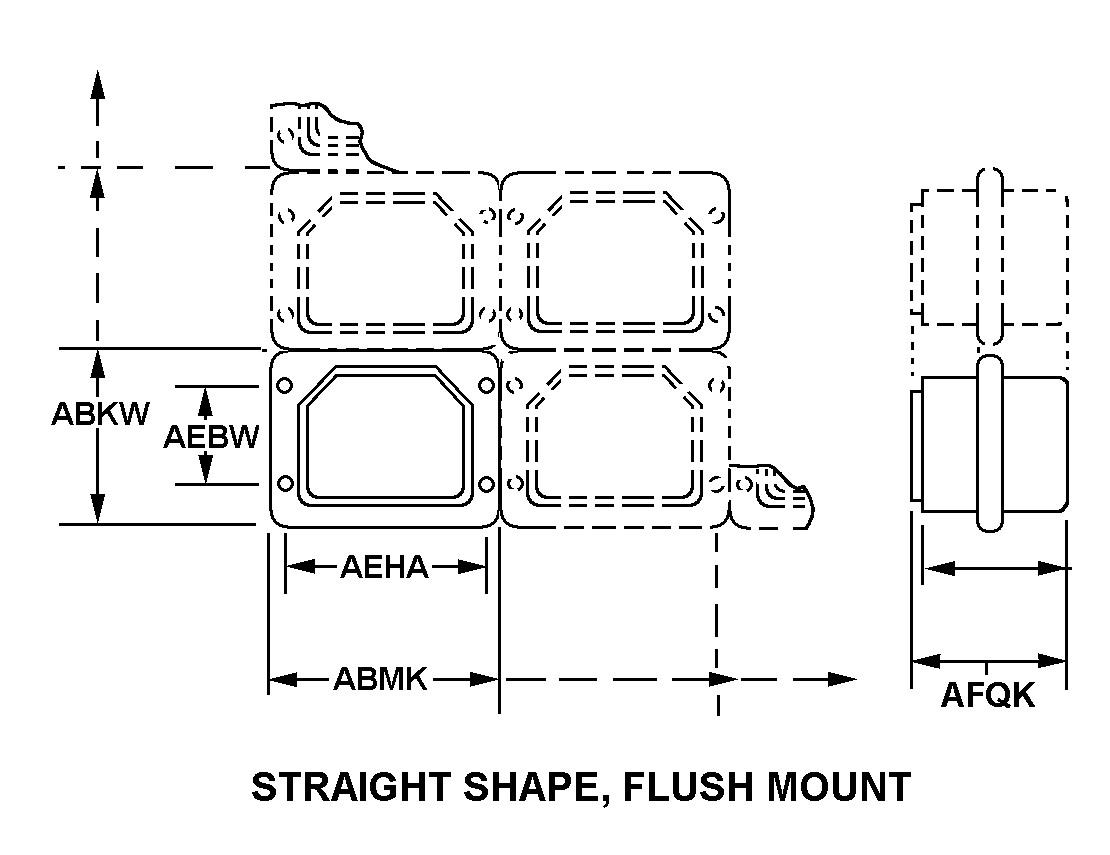

| BODY STYLE | 19G STRAIGHT SHAPE, FLUSH MOUNT |
| OVERALL HEIGHT | 3.075 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.778 INCHES MINIMUM AND 2.788 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.437 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | 3 POLARIZATION POSTS |
| MATING END QUANTITY | 2 |

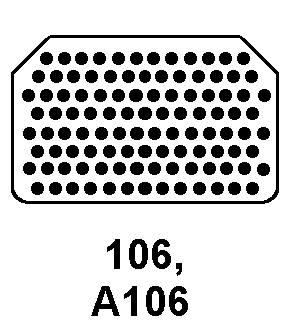

| CONTACT POSITION ARRANGEMENT STYLE | ELAA 106,A106 1ST MATING END |
| INSERT MATERIAL | PLASTIC ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 106 1ST MATING END SINGLE CONTACT GROUPING 7 2ND MATING END 1ST CONTACT GROUPING 29 2ND MATING END 2ND CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET 1ST MATING END SINGLE CONTACT GROUPING COAXIAL SOCKET 2ND MATING END 1ST CONTACT GROUPING ROUND SOCKET 2ND MATING END 2ND CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK ALL MATING ENDS ALL CONTACT GROUPINGS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-384-2660
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
