NSN 5935-01-384-2664 D38999/49FJ35SB, D3899949FJ35SB, DOD-C-38999/49
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-384-2664 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/49FJ35SB, D3899949FJ35SB, DOD-C-38999/49, DODC3899949, 5935-01-384-2664, 01-384-2664, 5935013842664, 013842664
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 DEC 1993 | 01-384-2664 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-384-2664
Demand History | NSN 5935-01-384-2664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-384-2664 | 2017-10-285 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-384-2664
Related Products | NSN 5935-01-384-2664
Technical Data | NSN 5935-01-384-2664
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 34.16 MILLIMETERS MAXIMUM |
| OVERALL DIAMETER | 49.89 MILLIMETERS MAXIMUM |
| CONNECTOR LOCKING METHOD | DETENT |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | ISO M |
| NOMINAL THREAD SIZE | 37.0 MILLIMETERS |
| THREAD TOLERANCE CLASS | 6G EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | PASSIVATE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 90.0 AND 270.0 |
| MATING END QUANTITY | 1 |

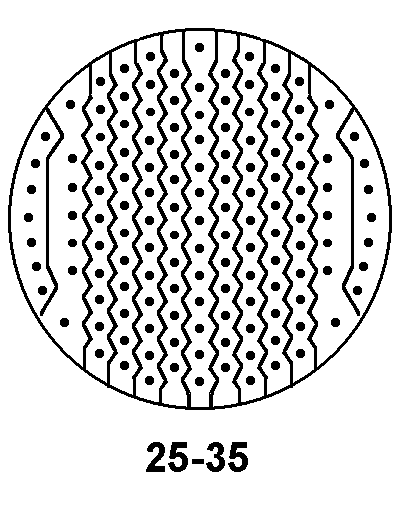

| CONTACT POSITION ARRANGEMENT STYLE | FAAE 25-35 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 128 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND CORROSION RESISTANT AND DUST RESISTANT AND FUEL RESISTANT AND FUNGUS RESISTANT AND HUMIDITY RESISTANT AND OIL RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-DOD-C-38999 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-DOD-C-38999/49 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | DOD-C-38999/49 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | D38999/49FJ35SB |
