NSN 5935-01-330-3498 M81511/53WD03S4, M8151153FD03S4, M81511-53FD03S4
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-330-3498 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M81511/53WD03S4, M8151153FD03S4, M81511-53FD03S4, M8151153WD03S4, MIL-C-81511/53, MILC8151153, 5935-01-330-3498, 01-330-3498, 5935013303498, 013303498
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 DEC 1990 | 01-330-3498 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-330-3498
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-330-3498
Technical Data | NSN 5935-01-330-3498
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 10G STRAIGHT SHAPE EXTERNAL COUPLING |
| OVERALL LENGTH | 1.222 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.770 INCHES MINIMUM AND 0.778 INCHES MAXIMUM |
| MOUNTING FACILITY THICKNESS | 0.125 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND W/FLAT |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| THREADED DEVICE TYPE | MOUNTING BUSHING AND BACK SHELL |
| THREAD SERIES DESIGNATOR | UN AND UNEF |
| NOMINAL THREAD SIZE | 0.875 INCHES AND 1.000 INCHES |
| THREAD CLASS | 2A AND 2A |
| THREAD QUANTITY PER INCH | 28 AND 20 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074,CL 3,GRADE A MIL SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 AND 85.0 AND 155.0 AND 220.0 AND 325.0 |
| MATING END QUANTITY | 1 |

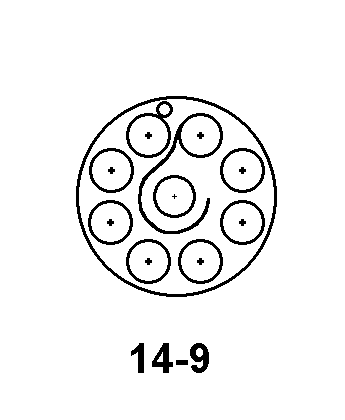

| CONTACT POSITION ARRANGEMENT STYLE | AKBY 14-9 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 9 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 1 OR 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND MOISTURE PROOF AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION PROOF AND FUNGUS RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT AND |
Restrictions/Controls & Freight Information | NSN 5935-01-330-3498
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-330-3498
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
