NSN 5935-01-330-3555 DD15M00000, 01-330-3555, 013303555
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-330-3555 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DD15M00000, 5935-01-330-3555, 01-330-3555, 5935013303555, 013303555
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-330-3555 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-330-3555
Demand History | NSN 5935-01-330-3555
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-330-3555 | 2011-01-21 | 4 | BR |
| 5935-01-330-3555 | 2008-10-297 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-330-3555
Technical Data | NSN 5935-01-330-3555
| Characteristic | Specifications |
|---|---|

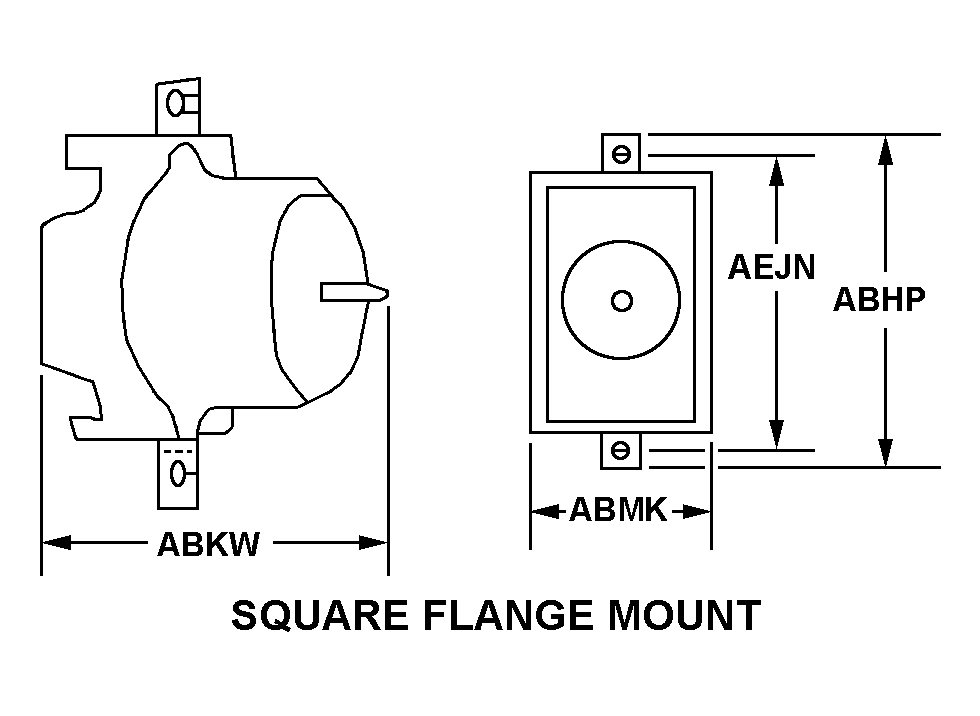

| BODY STYLE | 47K SQUARE FLANGE MOUNT |
| OVERALL LENGTH | 1.198 INCHES MINIMUM AND 1.228 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.422 INCHES NOMINAL |
| OVERALL WIDTH | 0.494 INCHES NOMINAL |
| MOUNTING METHOD | FLOAT |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.086 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | SCREW OR SHELL TWISTLOCK |
| THREADED DEVICE TYPE | MOUNTING HOLE |
| SHELL MATERIAL | STEEL |
| SHELL SURFACE TREATMENT | ZINC |
| POLARIZATION METHOD | SHELL |
| INSERT MATERIAL | PLASTIC POLYESTER ALL MATING ENDS |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-24519 MIL SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 15 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT REMOVABILITY | REMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 50.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 300.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 0.0006 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SCREW ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | SIDE ALL MATING ENDS ALL CONTACT GROUPINGS |
| SPECIAL FEATURES | MALE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-330-3555
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
