NSN 5935-01-268-8693 6416033, 641603-3, 01-268-8693
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-268-8693 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 6416033, 641603-3, 5935-01-268-8693, 01-268-8693, 5935012688693, 012688693
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 DEC 1987 | 01-268-8693 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-268-8693
Cross Reference | NSN 5935-01-268-8693
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 641603-3 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-268-8693
Technical Data | NSN 5935-01-268-8693
| Characteristic | Specifications |
|---|---|

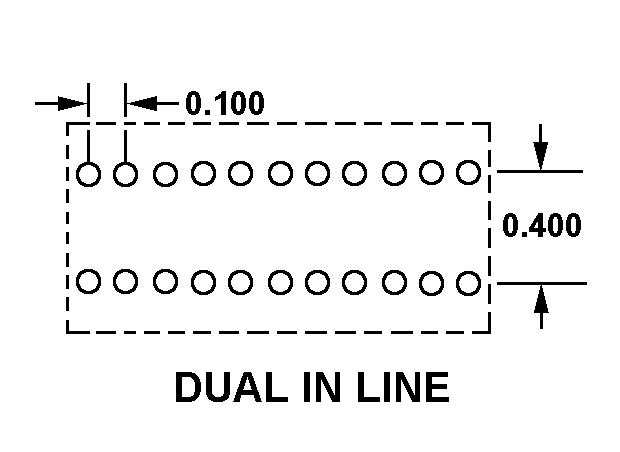

| CONTACT POSITION ARRANGEMENT STYLE | 2203A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 22 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | 73B RECTANGULAR |
| OVERALL LENGTH | 1.095 INCHES NOMINAL |
| OVERALL HEIGHT | 0.345 INCHES MAXIMUM |
| OVERALL WIDTH | 0.494 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC AND GLASS |
| TERMINAL TYPE AND QUANTITY | 22 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
Restrictions/Controls & Freight Information | NSN 5935-01-268-8693
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
