NSN 5935-01-268-8696 08005489600, 080-0548-9600, 15321622
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-268-8696 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 08005489600, 080-0548-9600, 15321622, 1532162-2 , 98788212, 987882-12, 5935-01-268-8696, 01-268-8696, 5935012688696, 012688696
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 DEC 1987 | 01-268-8696 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-268-8696
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-268-8696
Technical Data | NSN 5935-01-268-8696
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7G STRAIGHT SHAPE THREADED |
| OVERALL LENGTH | 1.359375 INCHES NOMINAL |
| OVERALL DIAMETER | 0.814 INCHES NOMINAL |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/5 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | NICKEL AND GOLD |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074A MIL SPEC 1ST TREATMENT RESPONSE AND MIL-G-45204 MIL SPEC 2ND TREATMENT RESPONSE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 110.0 AND 155.0 |
| MATING END QUANTITY | 1 |

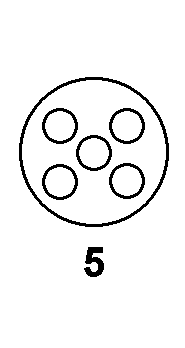

| CONTACT POSITION ARRANGEMENT STYLE | AFCA 5 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 5 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | BERYLLIUM AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | SILVER AND GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT PLATING SILVER AND SHELL PLATING GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-268-8696
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
