NSN 5935-00-227-7756 LLP9058, LLP-9058, 9058
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-227-7756 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: LLP9058, LLP-9058, 9058, 9085, 12000039, 1200-0039, 12060, 120-60, 236388, 43504601, 4350461, 435-046-1, 5935-00-227-7756, 00-227-7756, 5935002277756, 002277756
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-227-7756 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-227-7756
Demand History | NSN 5935-00-227-7756
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12060 | 2020-12-337 | 1 | US |
| 5935-00-227-7756 | 2014-02-51 | 17 | DIBBS |
| 5935-00-227-7756 | 2013-05-134 | 100 | US |
Cross Reference | NSN 5935-00-227-7756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 120-60 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 120-60 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 1200-0039 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1200-0039 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 236388 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 435&046&01 | 99592 | RAYTHEON COMPANY DBA RAYTHEON |
| 435-046-1 | 99592 | RAYTHEON COMPANY DBA RAYTHEON |
| 9058 | 72825 | EBY HOLDING COMPANY, INC. DBA EBY COMPANY |
| 9085 | 72825 | EBY HOLDING COMPANY, INC. DBA EBY COMPANY |
| LLP-9058 | 72825 | EBY HOLDING COMPANY, INC. DBA EBY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-227-7756
Related Products | NSN 5935-00-227-7756
Technical Data | NSN 5935-00-227-7756
| Characteristic | Specifications |
|---|---|

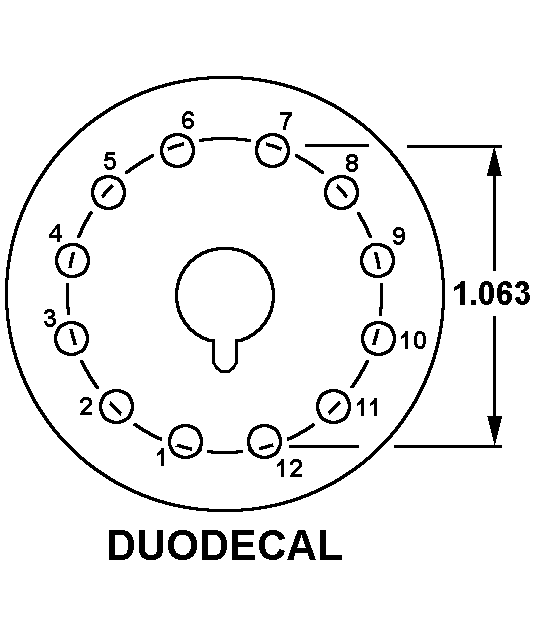

| CONTACT POSITION ARRANGEMENT STYLE | 1205A DUODECAL |
| ACCOMMODATED CONTACT QUANTITY | 12 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | SILVER |

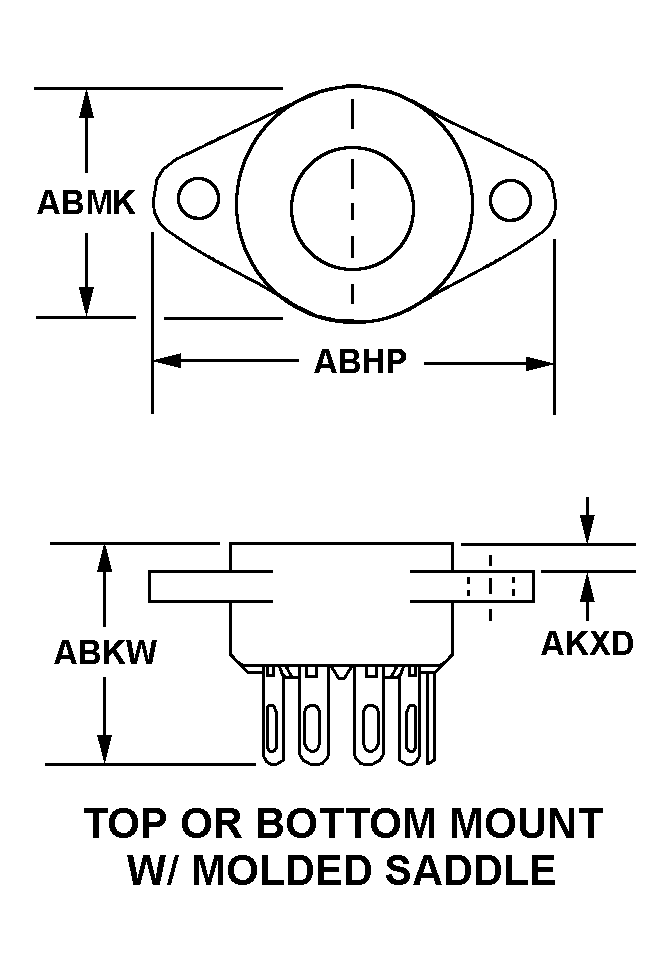

| BODY STYLE | 13B TOP OR BOTTOM MOUNT W/MOLDED SADDLE |
