NSN 5935-01-209-2244 M24231/1-020, M242311020, MIL-C-24231/1
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-209-2244 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M24231/1-020, M242311020, MIL-C-24231/1, MILC242311, 5935-01-209-2244, 01-209-2244, 5935012092244, 012092244
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAY 1985 | 01-209-2244 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |

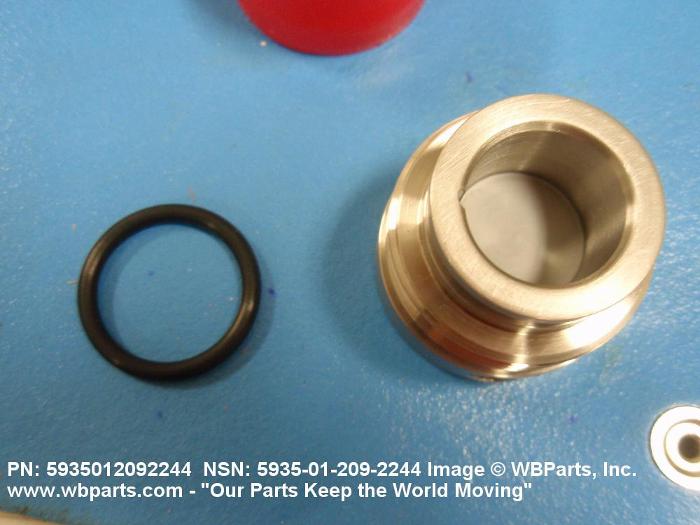

Drawings & Photos | NSN 5935-01-209-2244
Demand History | NSN 5935-01-209-2244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-209-2244 | 2024-02-39 | 89 | DIBBS |
| M242311020 | 2023-11-312 | 3 | US |
| 5935-01-209-2244 | 2021-02-46 | 109 | DIBBS |
| 5935-01-209-2244 | 2020-11-308 | 93 | DIBBS |
| 5935-01-209-2244 | 2018-07-193 | 88 | DIBBS |
| 5935-01-209-2244 | 2017-08-225 | 57 | DIBBS |
| 5935-01-209-2244 | 2016-10-285 | 81 | DIBBS |
| 5935-01-209-2244 | 2016-02-33 | 1 | DIBBS-RFPs |
| 5935-01-209-2244 | 2013-11-322 | 47 | DIBBS |
| 5935-01-209-2244 | 2013-08-241 | 15 | DIBBS |
| 5935-01-209-2244 | 2011-06-168 | 30 | DIBBS |
| M242311020 | 2011-05-144 | 2 | United States |
| M242311020 | 2011-05-125 | 9 | us |
| M242311020 | 2011-04-108 | 2 | United States |
| 5935-01-209-2244 | 2010-03-70 | 5 | DIBBS |
| 5935-01-209-2244 | 2009-12-337 | 33 | DIBBS |
| MILC242311 | 2008-12-346 | 2 | US |
| M242311020 | 2008-05-133 | 21 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-209-2244
Technical Data | NSN 5935-01-209-2244
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3B STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 3.920 INCHES NOMINAL |
| OVERALL DIAMETER | 1.750 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| INSERT MATERIAL | PLASTIC POLYAMIDE SINGLE MATING END |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-MIL-C-24231 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-24231/1 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-24231/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24231/1-020 |
Restrictions/Controls & Freight Information | NSN 5935-01-209-2244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-209-2244
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
