NSN 5935-01-209-2284 K29L00098, K29L0009-8, 60 8223 624600053
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-01-209-2284 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: K29L00098, K29L0009-8, 60 8223 624600053, 608223624600053, 5935-01-209-2284, 01-209-2284, 5935012092284, 012092284
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAY 1985 | 01-209-2284 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-209-2284
Demand History | NSN 5935-01-209-2284
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-209-2284 | 2015-08-225 | 47 | DIBBS |
| 5935-01-209-2284 | 2015-08-214 | 47 | DIBBS |
| 5935-01-209-2284 | 2015-06-160 | 130 | DIBBS |
| 5935-01-209-2284 | 2010-07-211 | 27 | DIBBS |
| 5935-01-209-2284 | 2008-06-155 | 68 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-209-2284
Related Products | NSN 5935-01-209-2284
Technical Data | NSN 5935-01-209-2284
| Characteristic | Specifications |
|---|---|

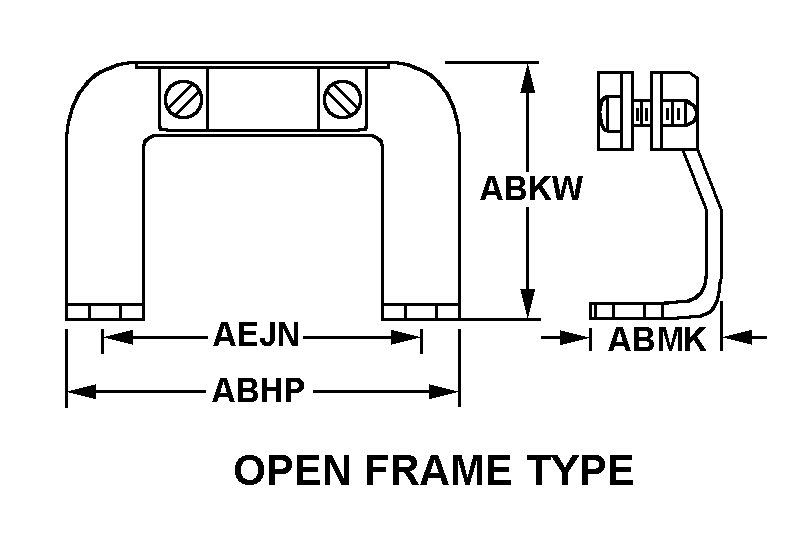

| STYLE DESIGNATOR | 13B OPEN FRAME TYPE |
