NSN 5935-00-280-1936 MS3057108, MS3057-108, MS305710B
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-280-1936 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: MS3057108, MS3057-108, MS305710B, MS3057-10B, M85049/1-10B, M85049110B, AN305710B, AN3057-10B, AS85049 , AS85049/1 , AS850491, MILC85049, MIL-C-85049, W4722911AM, 8100923, 8526400, 06550034, 06-55-0034, 10350349183, 10-350349-183, 2141046P5, 214-1046P5, 58A07116K01, 5935-00-280-1936, 00-280-1936, 5935002801936, 002801936
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-1936 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |

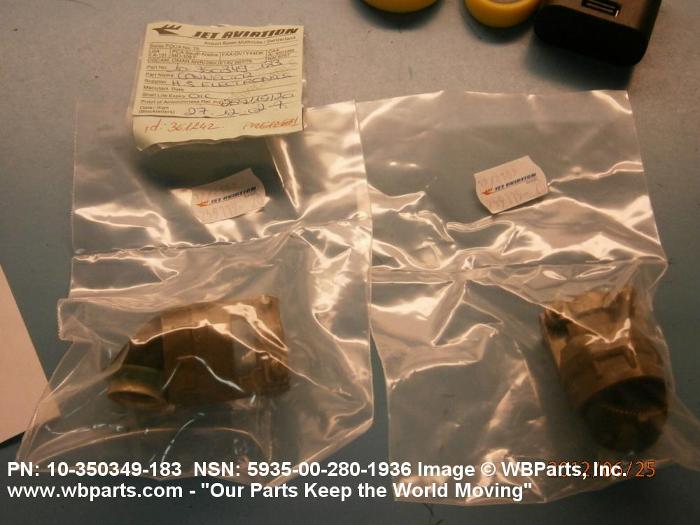

Drawings & Photos | NSN 5935-00-280-1936
Demand History | NSN 5935-00-280-1936
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3057108 | 2013-01-18 | 12 | US |
| MS3057108 | 2013-01-18 | 36 | US |
| 10350349183 | 2012-06-171 | 1 | us |
| MILC85049 | 2009-07-196 | 20 | DE |
Cross Reference | NSN 5935-00-280-1936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 06-55-0034 | 96169 | ELECTRIC BOAT CORPORATION |
| 10-350349-183 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 214-1046P5 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 58A07116K01 | 50012 | MOTOROLA COMMUNICATIONS GROUP PARTS DEPT |
| 8100923 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8100923 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 8526400 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8526400 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| AN3057-10B | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| M85049/1-10B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M85049/1-10B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-85049 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3057-108 | U1609 | THORN ELECTRICAL INDUSTRIES LTD |
| MS3057-10B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| W4722911AM | S3092 | RHEINMETALL AIR DEFENCE AG |
| W4722911AM | S3118 | OERLIKON-BUEHRLE AG WERKZEUGMASCHINENFABRIK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-280-1936
Related Products | NSN 5935-00-280-1936
Technical Data | NSN 5935-00-280-1936
| Characteristic | Specifications |
|---|---|

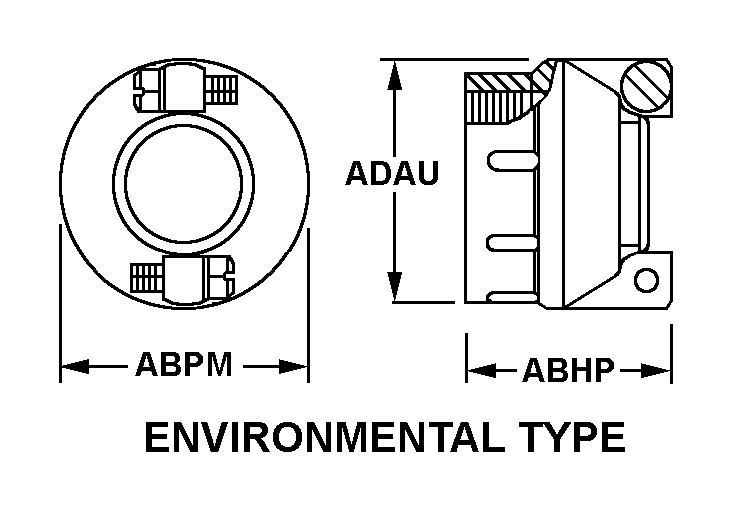

| STYLE DESIGNATOR | 5B ENVIRONMENTAL TYPE |
| OVERALL LENGTH | 1.094 INCHES MAXIMUM |
| BODY DIAMETER | 1.312 INCHES MAXIMUM |
| BODY HEIGHT | 1.312 INCHES MAXIMUM |
| MATERIAL | METAL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.614 INCHES MINIMUM AND 0.634 INCHES MAXIMUM |
| SEAL TYPE | GASKET |
| SEAL MATERIAL | RUBBER |
| SIZE DESIGNATION | 18 |
| TEST DATA DOCUMENT | 81349-MIL-C-85049 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-85049/1 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-85049 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85049/1-10B |
