Product Details | ELECTRICAL PLUG CONNECTOR BODY

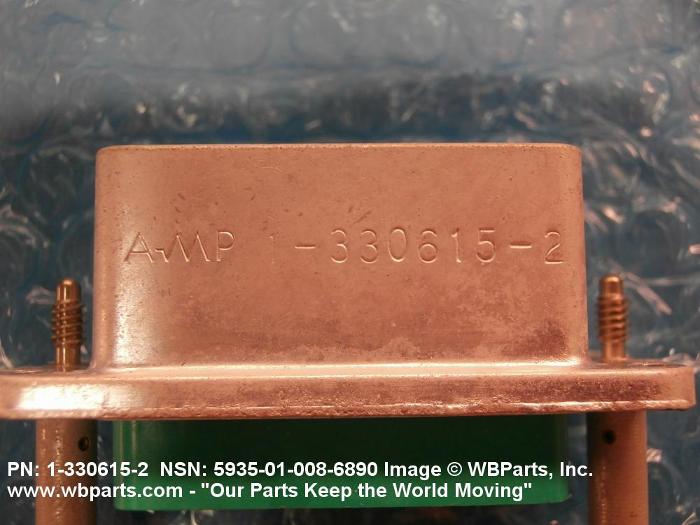

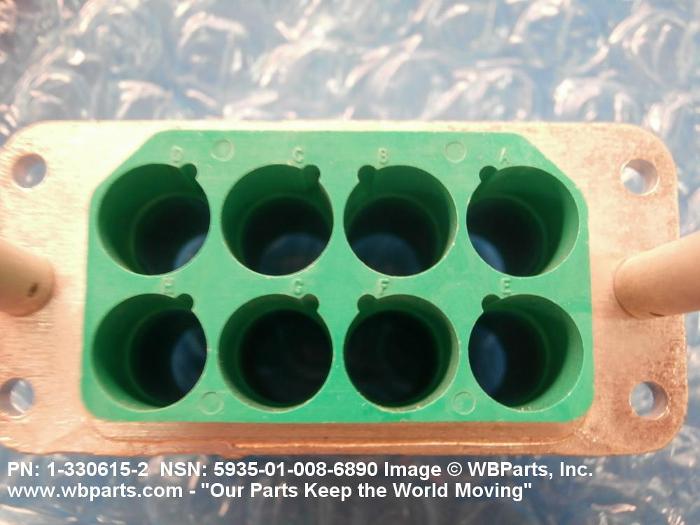

5935-01-008-6890 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 13306152, 1-330615-2, 5935-01-008-6890, 01-008-6890, 5935010086890, 010086890
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 AUG 1975 | 01-008-6890 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-008-6890
Demand History | NSN 5935-01-008-6890
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-008-6890 | 2013-04-98 | 3 | United States |
| 5935-01-008-6890 | 2013-01-30 | 3 | United States |
Cross Reference | NSN 5935-01-008-6890
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-330615-2 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-008-6890
Technical Data | NSN 5935-01-008-6890
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 20A HOOD, TOP OPENING |

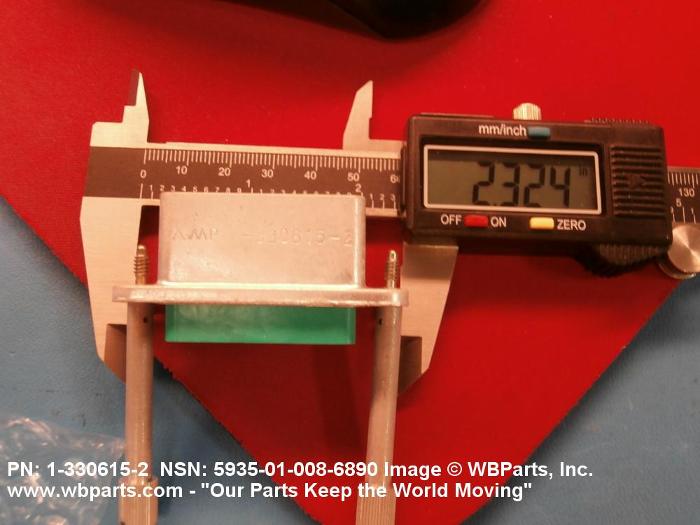

| OVERALL LENGTH | 2.307 INCHES MINIMUM AND 2.342 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |

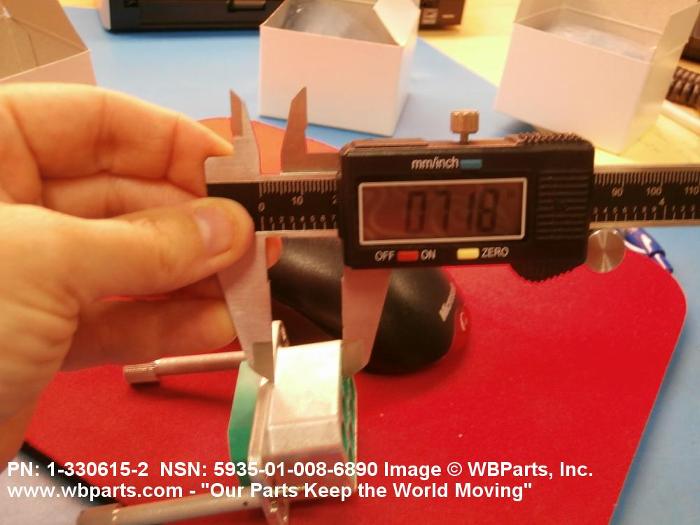

| OVERALL WIDTH | 0.718 INCHES NOMINAL |
