NSN 5935-01-008-8193 4608, 01-008-8193, 010088193
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-008-8193 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 4608, 5935-01-008-8193, 01-008-8193, 5935010088193, 010088193
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 AUG 1975 | 01-008-8193 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-008-8193
Cross Reference | NSN 5935-01-008-8193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4608 | 91833 | KEYSTONE ELECTRONICS CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-008-8193
Technical Data | NSN 5935-01-008-8193
| Characteristic | Specifications |
|---|---|

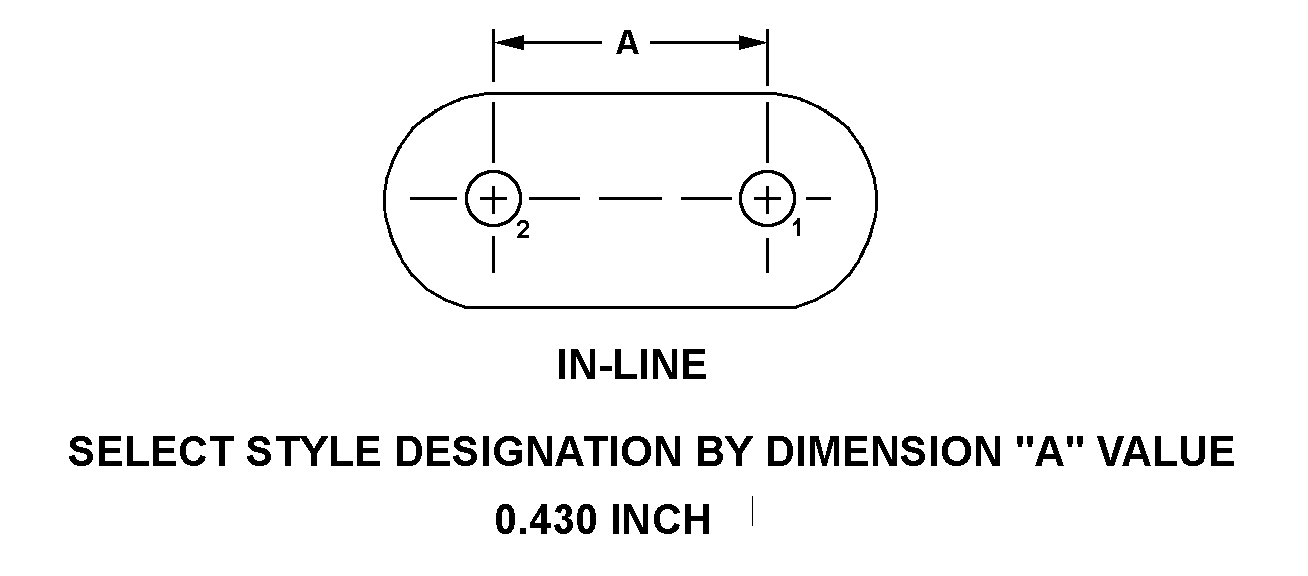

| CONTACT POSITION ARRANGEMENT STYLE | 204A IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | 51B SURFACE MOUNT |
| OVERALL LENGTH | 1.350 INCHES NOMINAL |
| OVERALL HEIGHT | 0.505 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | SLOT |
