NSN 5935-01-205-1037 6984711317, 698471-1317, 01-205-1037
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-205-1037 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 6984711317, 698471-1317, 5935-01-205-1037, 01-205-1037, 5935012051037, 012051037
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 APR 1985 | 01-205-1037 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-205-1037
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-205-1037
Technical Data | NSN 5935-01-205-1037
| Characteristic | Specifications |
|---|---|

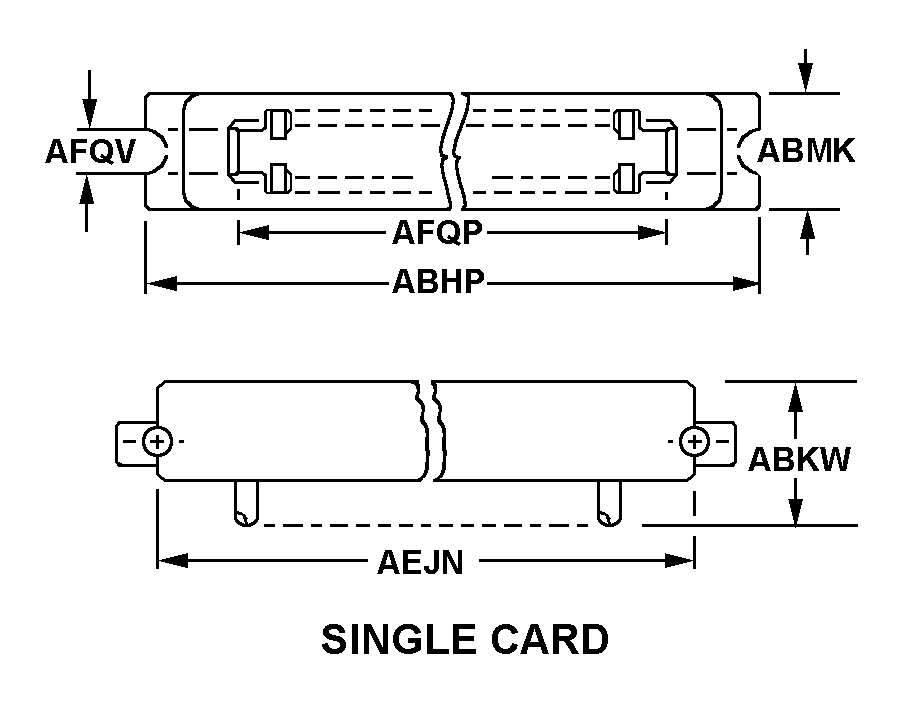

| BODY STYLE | 6Q SINGLE CARD |
| OVERALL LENGTH | 2.390 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.475 INCHES NOMINAL |
| OVERALL WIDTH | 0.400 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.123 INCHES MINIMUM AND 2.137 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.130 INCHES NOMINAL |
| MATING END QUANTITY | 1 |

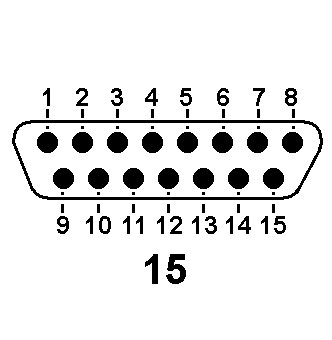

| CONTACT POSITION ARRANGEMENT STYLE | ARBL 15 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 29 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| MANUFACTURERS CODE | 3B150 |
| DESIGN CONTROL REFERENCE | 698471-1317 |
