NSN 5935-01-205-1039 G3960873A1X6, G396087-3A1X6, 01-205-1039
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-205-1039 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: G3960873A1X6, G396087-3A1X6, 5935-01-205-1039, 01-205-1039, 5935012051039, 012051039
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 APR 1985 | 01-205-1039 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-205-1039
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-205-1039
Technical Data | NSN 5935-01-205-1039
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 34Q STRAIGHT SHAPE, PC TYPE |
| OVERALL LENGTH | 3.188 INCHES MINIMUM AND 3.218 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.645 INCHES MINIMUM AND 0.675 INCHES MAXIMUM |
| OVERALL WIDTH | 0.325 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.931 INCHES MINIMUM AND 2.945 INCHES MAXIMUM |
| BOARD ACCOMMODATED WIDTH | 0.054 INCHES MINIMUM AND 0.071 INCHES MAXIMUM |
| BOARD ACCOMMODATED LENGTH | 2.498 INCHES MINIMUM AND 2.510 INCHES MAXIMUM SINGLE BOARD |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.110 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| POLARIZATION METHOD | FIXED CONTACT TO CONTACT |
| CONTACT TO CONTACT LOCATION DESIGNATOR | 6 AND F |
| MATING END QUANTITY | 1 |

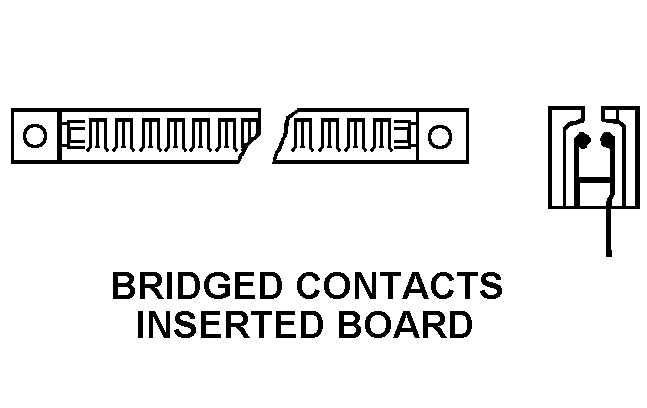

| CONTACT POSITION ARRANGEMENT STYLE | AAAD BRIDGED CONTACTS INSERTED BOARD SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19833,TYPE GDI-30F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 14 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | BIFURCATED ACCORDIAN LEAF SPRING SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 550.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-B-103 ASSN STD SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER OR GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-G-45204,TY 1,GRADE A MIL SPEC 1ST TREATMENT RESPONSE AND MIL-C-14550,CL 4 MIL SPEC 2ND TREATMENT RESPONSE OR MIL-G-45204,TY 2,CL 1 MIL SPEC 3RD TREATMENT RESPONSE AND MIL-G-45204,TY 1,GRADE A MIL SPEC 3RD TREATMENT RESPONSE AND QQ-N-290,CL 2 FED SPEC 4TH TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END |
Restrictions/Controls & Freight Information | NSN 5935-01-205-1039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-205-1039
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
