NSN 5935-01-097-5450 M83734/2-014, M837342014, MIL-S-83734/2
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-097-5450 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: M83734/2-014, M837342014, MIL-S-83734/2, MILS837342, 5935-01-097-5450, 01-097-5450, 5935010975450, 010975450
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JUL 1980 | 01-097-5450 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-097-5450
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-097-5450
Related Products | NSN 5935-01-097-5450
Technical Data | NSN 5935-01-097-5450
| Characteristic | Specifications |
|---|---|

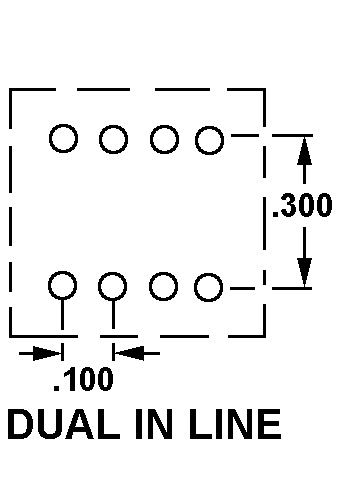

| CONTACT POSITION ARRANGEMENT STYLE | 824A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | SOLDER |

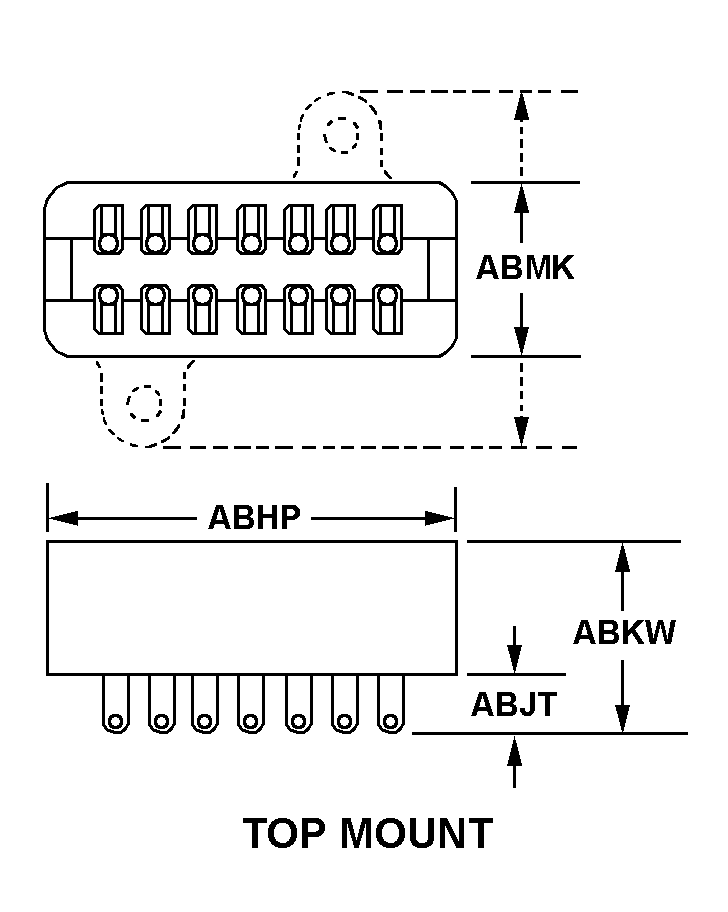

| BODY STYLE | 69B TOP MOUNT |
| OVERALL LENGTH | 0.450 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.805 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.175 INCHES MAXIMUM |
| OVERALL WIDTH | 0.400 INCHES MAXIMUM |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 8 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |

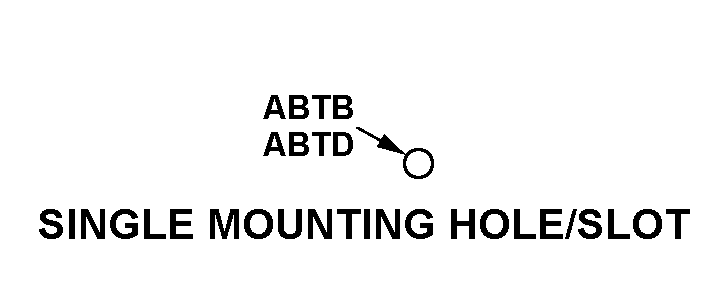

| MOUNTING HOLE STYLE | 20D SINGLE MOUNTING HOLE/SLOT |
| MOUNTING HOLE DIAMETER | 0.094 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-S-83734 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-83734/2 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-83734/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83734/2-014 |
