NSN 5935-01-097-5454 3380085, 3380085007, 3380085-007
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-097-5454 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 3380085, 3380085007, 3380085-007, 5935-01-097-5454, 01-097-5454, 5935010975454, 010975454
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JUL 1980 | 01-097-5454 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-097-5454
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-097-5454
Technical Data | NSN 5935-01-097-5454
| Characteristic | Specifications |
|---|---|

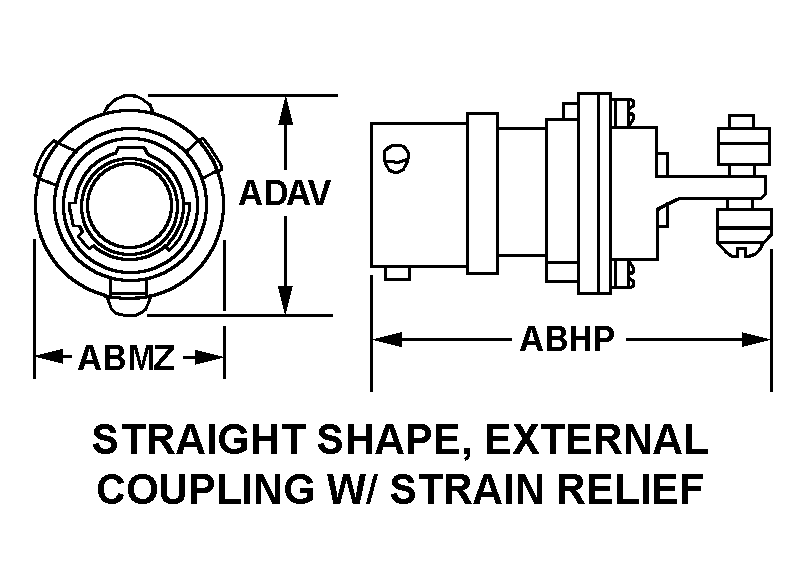

| BODY STYLE | 6A STRAIGHT SHAPE, EXTERNAL COUPLING W/STRAIN RELIEF |
| OVERALL LENGTH | 1.838 INCHES MAXIMUM |
| DIAMETER | 0.969 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.125 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

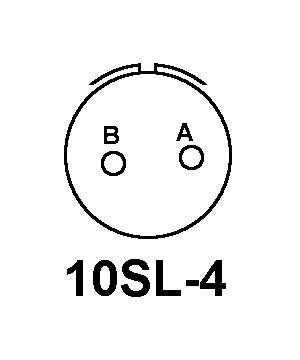

| CONTACT POSITION ARRANGEMENT STYLE | ACAA 10SL-4 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| MANUFACTURERS CODE | 92755 |
| DESIGN CONTROL REFERENCE | 3380085 |
