NSN 5935-00-901-5782 MS3112E1006PN, MS3112E-10-06PN, MS3112E106P
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-901-5782 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3112E1006PN, MS3112E-10-06PN, MS3112E106P, MS3112E10-6P, CE213240, MILC26482, PT024A106P, PT024A-10-6P, PT02A106P, PT02A-10-6P, PT02A10-6P, W41256D6101B10, 06145472, 061-45472, 120309, 1203-09, 1593528712B, 289303100110, 3712016000, 371-2016-000, 3712166000, 371-2166-000, 4118836048, 4118836-048, 4118836-48, 41679250, 416792-50, 5L454100444, 5L4541-004-44, 5M454122224, 5M4541-222-24, 907D25114, 907D251-14, 5935-00-901-5782, 00-901-5782, 5935009015782, 411883648, 009015782
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-901-5782 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

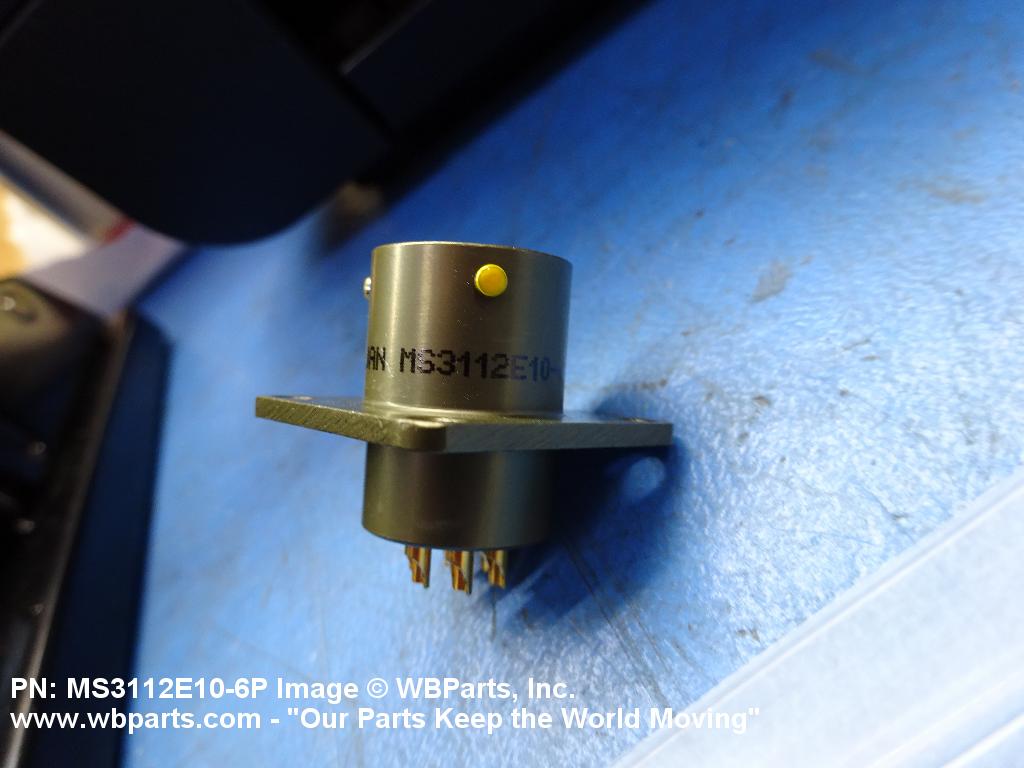

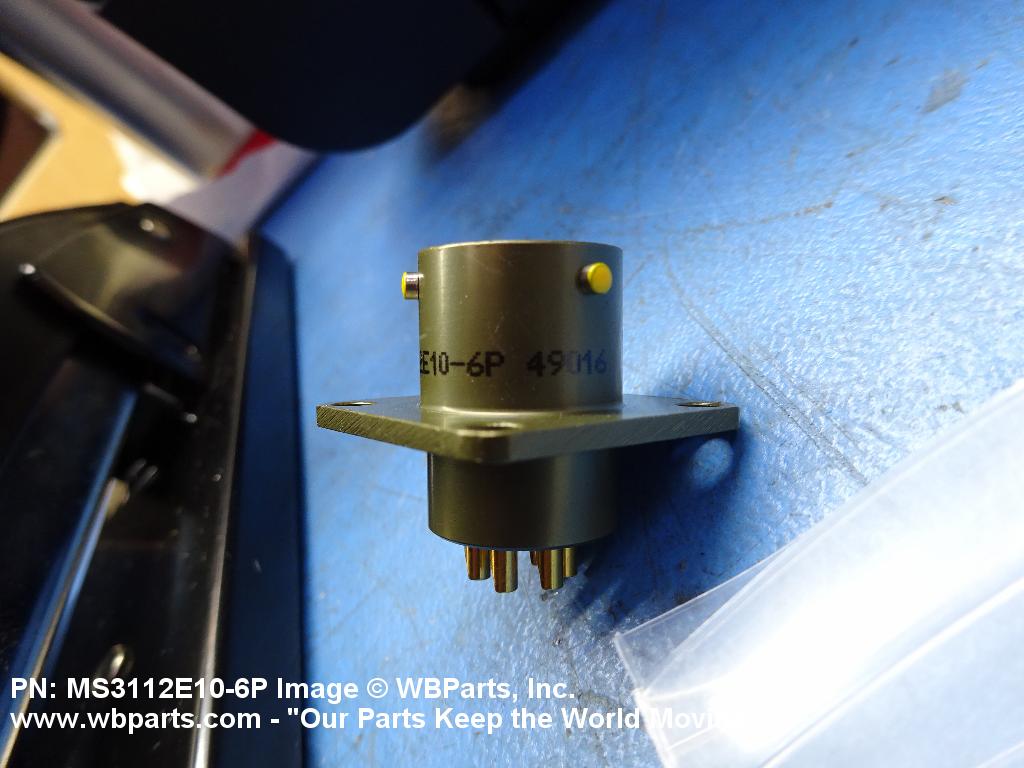

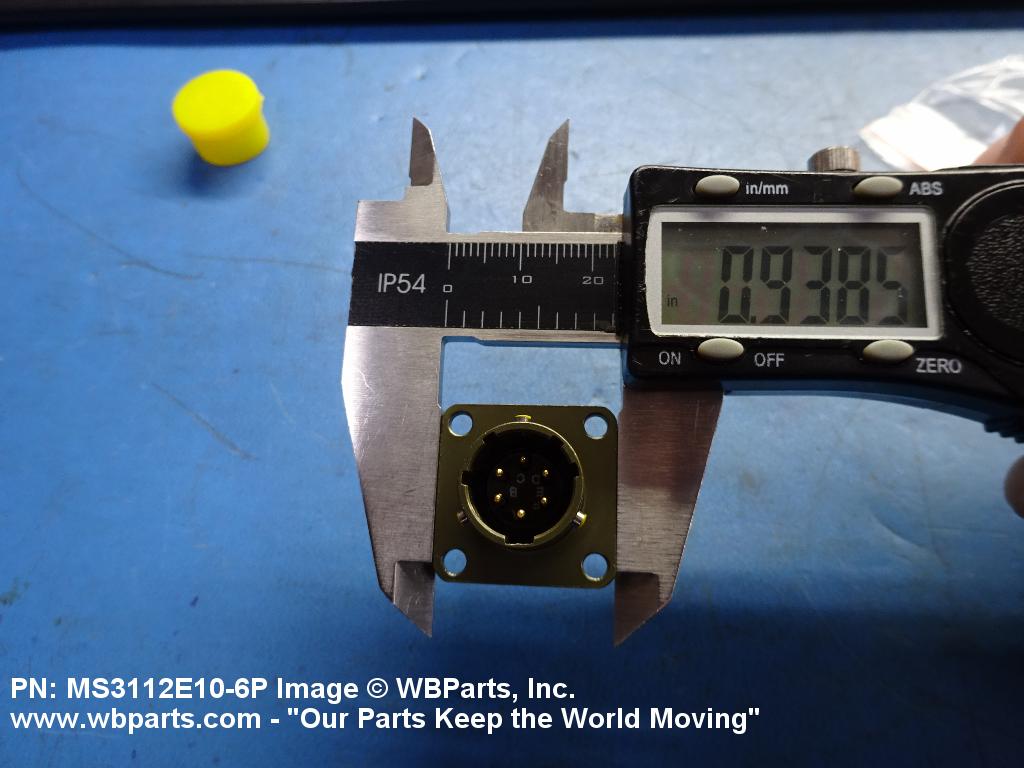

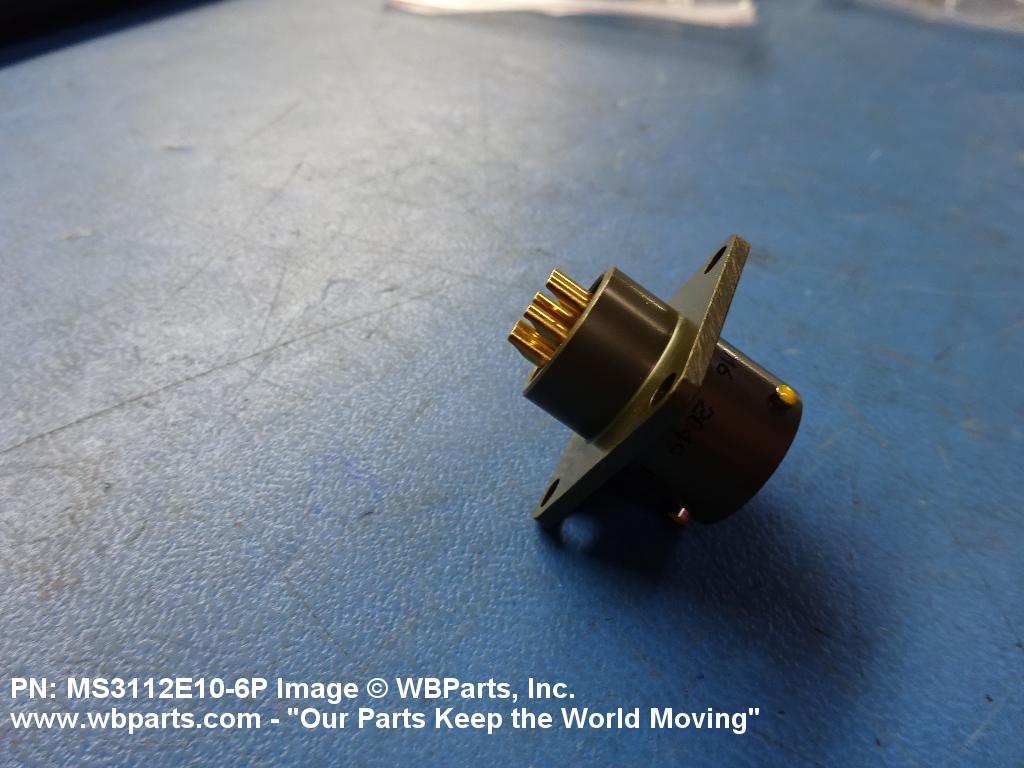

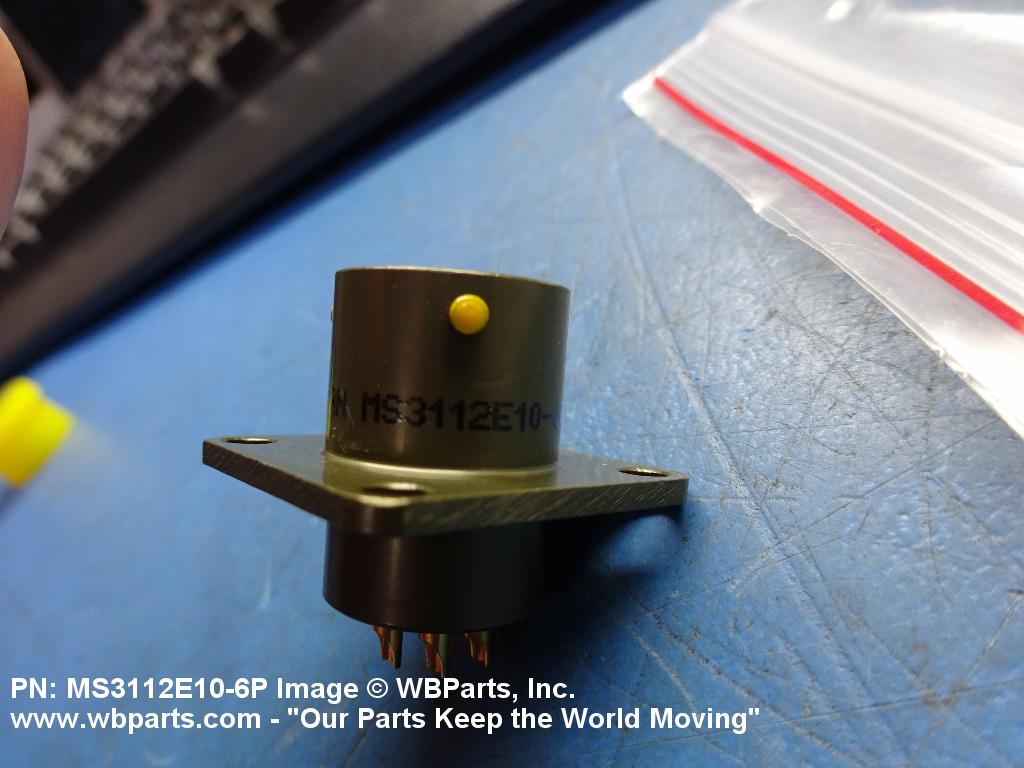

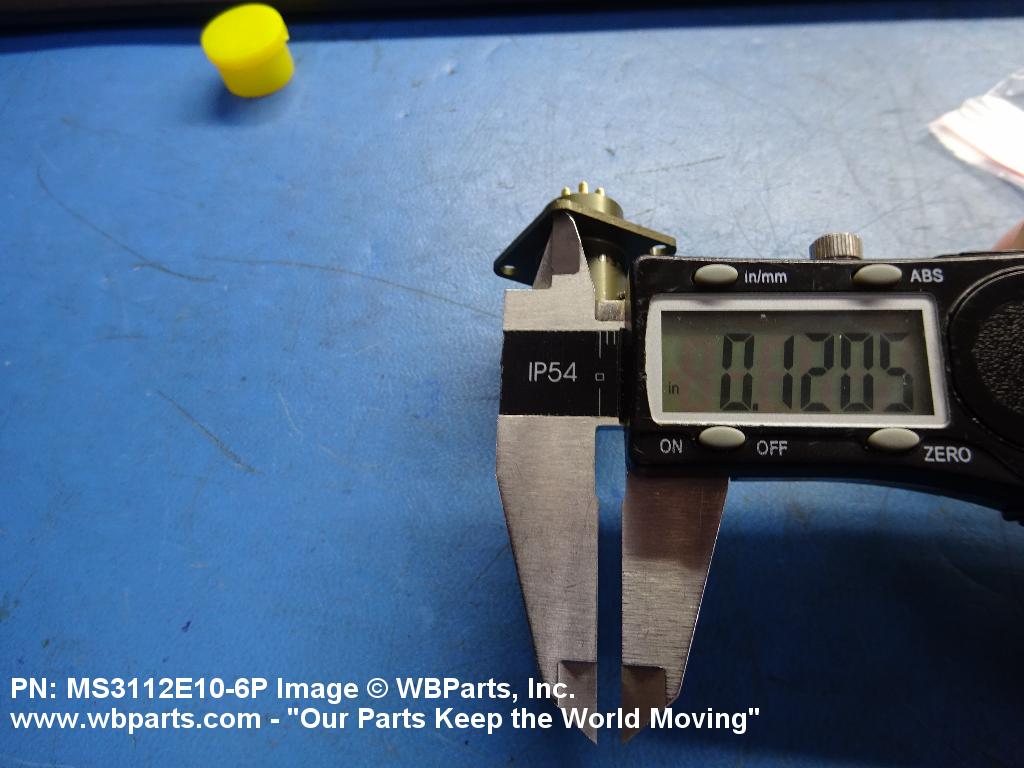

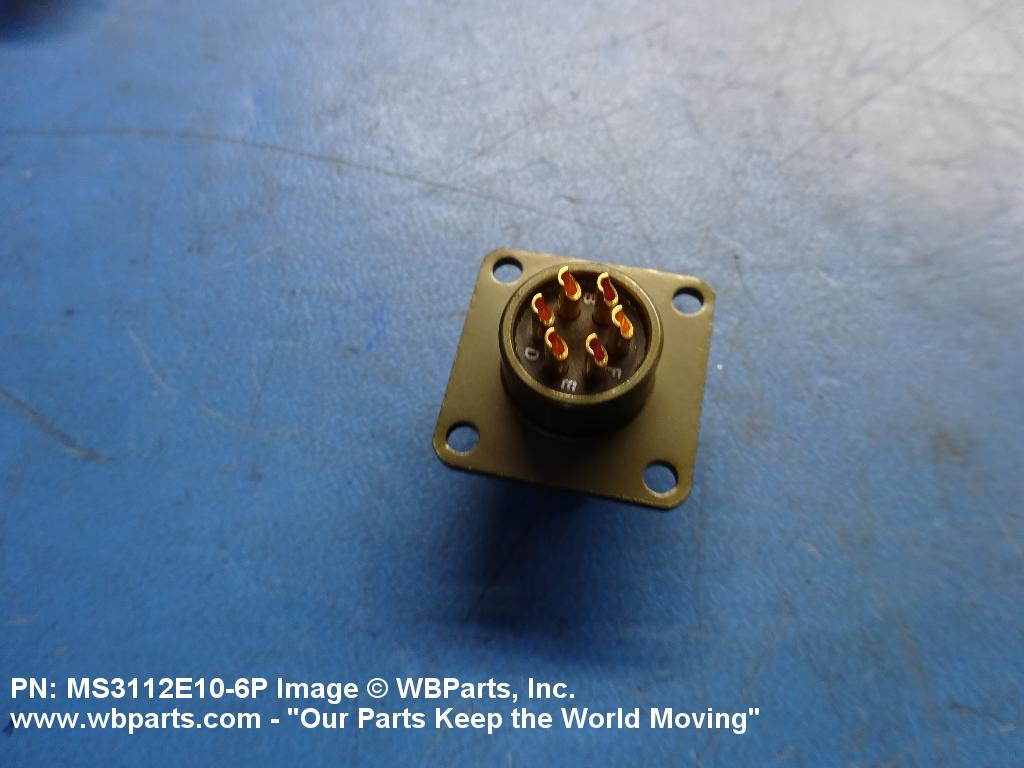

Drawings & Photos | NSN 5935-00-901-5782

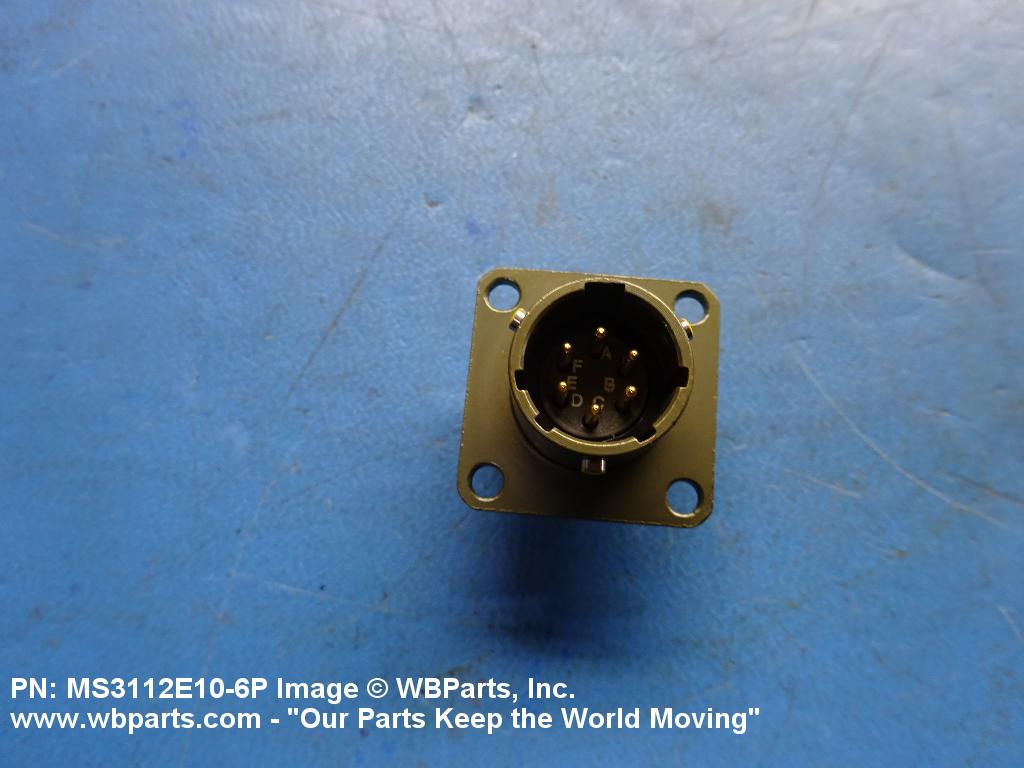

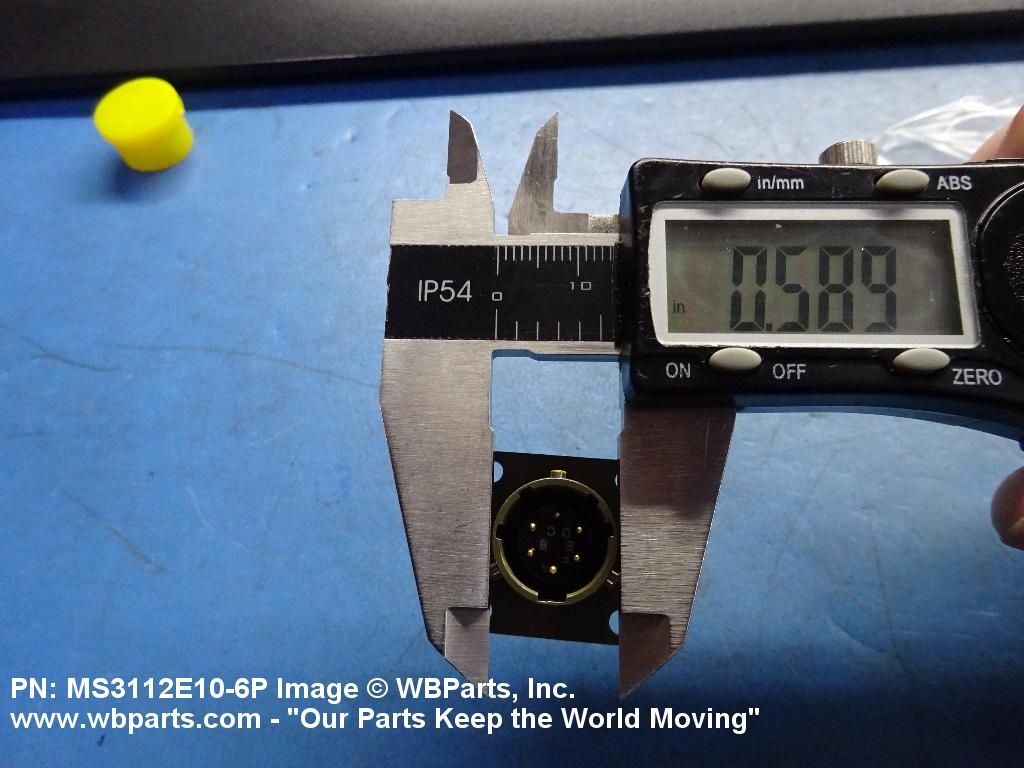

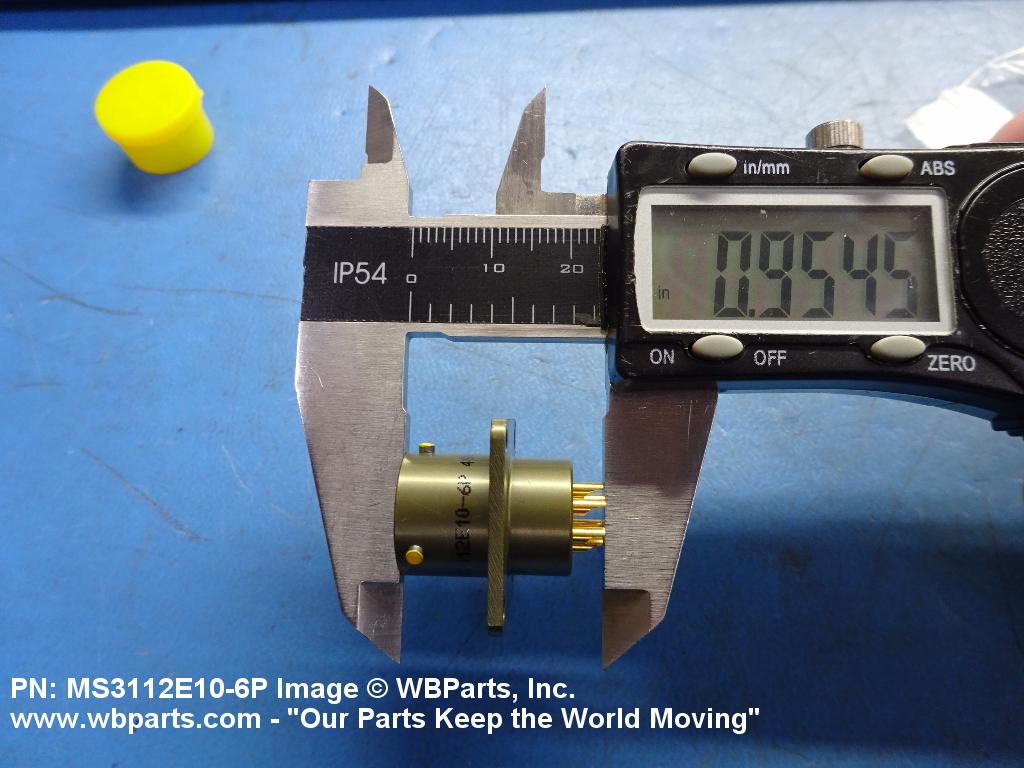

Demand History | NSN 5935-00-901-5782
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-901-5782 | 2023-08-213 | 81 | DIBBS |
| 5935-00-901-5782 | 2022-12-335 | 676 | DIBBS |
| MS3112E106P | 2022-07-187 | 4 | South Korea |
| 5935-00-901-5782 | 2018-08-221 | 271 | DIBBS |
| 5935-00-901-5782 | 2017-10-288 | 278 | DIBBS |
| 5935-00-901-5782 | 2017-06-155 | 112 | DIBBS |
| 5935-00-901-5782 | 2017-04-116 | 110 | DIBBS |
| 5935-00-901-5782 | 2013-08-218 | 479 | DIBBS |
| MILC26482 | 2011-01-27 | 4 | Portugal |
| 5935-00-901-5782 | 2010-10-302 | 308 | DIBBS |
| 5935-00-901-5782 | 2010-02-47 | 341 | DIBBS |
| 5935-00-901-5782 | 2009-07-183 | 189 | DIBBS |
| 5935-00-901-5782 | 2007-01-29 | 329 | DIBBS |
Cross Reference | NSN 5935-00-901-5782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 061-45472 | 94697 | MOOG, INC. |
| 1203-09 | 82005 | ALLARD NAZARIAN GROUP, INC. DBA GRANITE STATE MANUFACTURING |
| 289303100110 | A0810 | SELEX ES SPA |
| 289303100110 | A3006 | ALENIA DIFESA SPA DIVISIONE SISTEMI AVIONICI ED EQUIPAGGIAMENTI UNITA' |
| 371-2016-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 371-2166-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 4118836-048 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4118836-48 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 416792-50 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5L4541-004-44 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 5M4541-222-24 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 907D251-14 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 907D251-14 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| CE213240 | 98230 | NATIONAL SECURITY AGENCY |
| MILC26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3112E-10-06PN | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3112E10-6P | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3112E10-6P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3112E10-6P | D1371 | ITT CANNON GMBH |
| PT024A-10-6P | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| PT02A-10-6P | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| PT02A10-6P | D8311 | AMPHENOL-TUCHEL ELECTRONICS GMBH |
| W41256D6101B10 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-901-5782
Related Products | NSN 5935-00-901-5782
Technical Data | NSN 5935-00-901-5782
| Characteristic | Specifications |
|---|---|

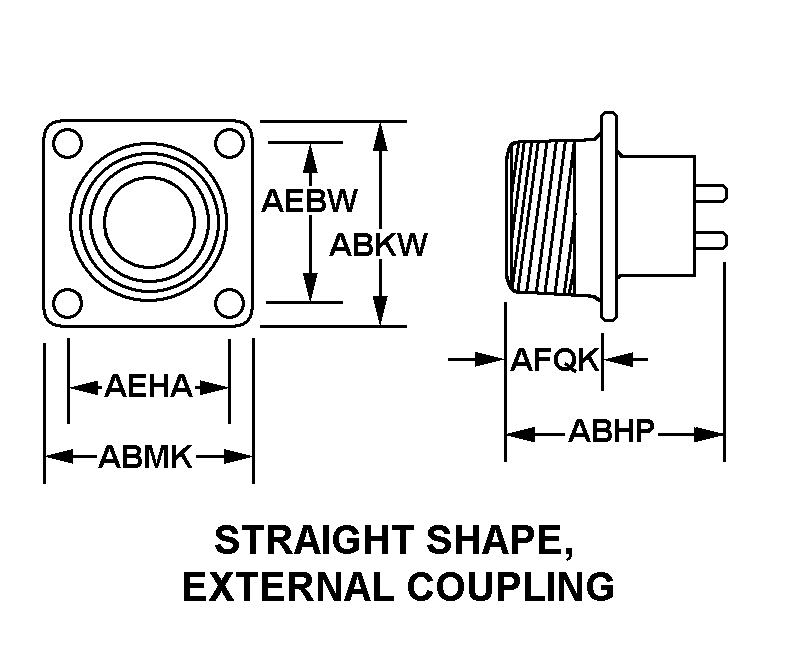

| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |
