NSN 5935-01-010-1848 MS27468E19B35P, MS27468T19B35P, MS27468T19F35P
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-010-1848 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS27468E19B35P, MS27468T19B35P, MS27468T19F35P, MS27468T19F-35P, B86650, MILC38999, MIL-C-38999, 10082693 , 26014011, 2601-4011, 810BA2630, 5935-01-010-1848, 01-010-1848, 5935010101848, 010101848
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 SEP 1975 | 01-010-1848 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

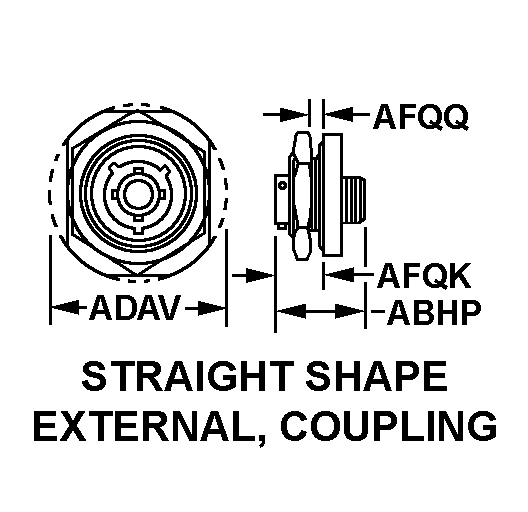

Drawings & Photos | NSN 5935-01-010-1848
Demand History | NSN 5935-01-010-1848
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-010-1848 | 2018-05-141 | 40 | DIBBS |
| 5935-01-010-1848 | 2016-12-364 | 58 | DIBBS |
| 5935-01-010-1848 | 2016-08-243 | 100 | DIBBS |
| 5935-01-010-1848 | 2016-06-178 | 45 | DIBBS |
| 5935-01-010-1848 | 2013-01-14 | 1 | MANUAL |
| MS27468T19B35P | 2013-01-14 | 1 | United States |
| MILC38999 | 2011-12-340 | 50 | China |
| MILC38999 | 2010-03-69 | 10 | United States |
| MILC38999 | 2010-03-68 | 13 | United States |
| 5935-01-010-1848 | 2009-08-233 | 134 | DIBBS |
| 5935-01-010-1848 | 2009-08-233 | 582 | DIBBS |
| 5935-01-010-1848 | 2009-08-233 | 750 | DIBBS |
Cross Reference | NSN 5935-01-010-1848
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2601-4011 | K0662 | SELEX ES LTD |
| 2601-4011 | U3755 | MARCONI AVIONICS LTD |
| 810BA2630 | 0291H | ROSOMAK S.A |
| B86650 | K0967 | MBDA UK LTD |
| MIL-C-38999 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27468E19B35P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27468T19B35P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27468T19F-35P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
