Product Details | ELECTRICAL CONNECTOR POTTING MOLD

5935-00-492-7631 An item, solid or split, designed to be used as a hollow form into which potting compound is injected and allowed to cure or set to seal the back of an electrical connector. The potting eliminates the need for a back shell of the connector. The form may or may not be removable after potting. See also SHIELD, ELECTRICAL CONNECTOR.

Part Alternates: MS27486242, MS27486-24-2, M85049/75-24-2, M8504975242, MIL-C-85049/75, MILC8504975, 5935-00-492-7631, 00-492-7631, 5935004927631, 004927631

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 13 FEB 1970 00-492-7631

Drawings & Photos | NSN 5935-00-492-7631


Cross Reference | NSN 5935-00-492-7631

Part Number Cage Code Manufacturer
M85049/75-24-2 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/75-24-2 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-85049/75 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27486-24-2 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-492-7631

Technical Data | NSN 5935-00-492-7631

Characteristic Specifications

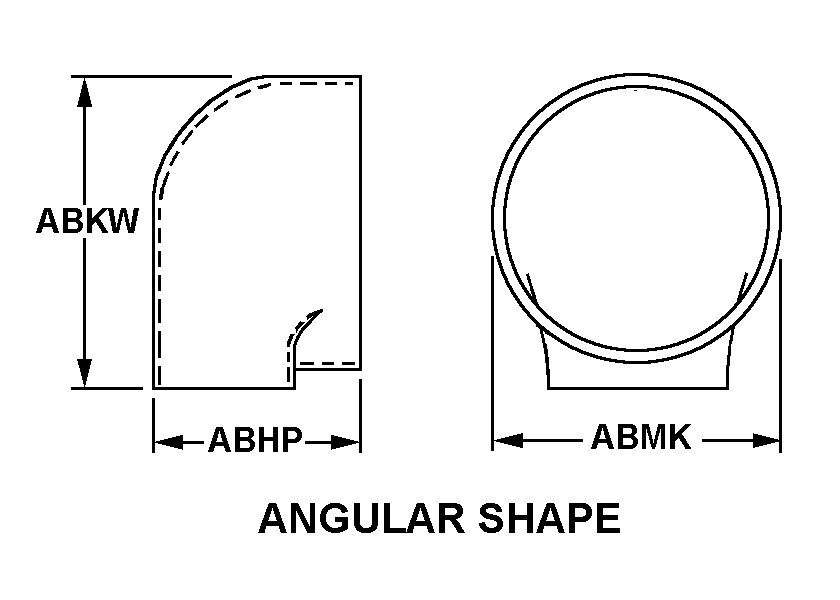

STYLE DESIGNATOR 3F ANGULAR SHAPE
OVERALL LENGTH 1.781 INCHES NOMINAL
OVERALL HEIGHT 1.031 INCHES NOMINAL
OVERALL WIDTH 1.520 INCHES NOMINAL
MATERIAL POLYAMIDE NYLON
SURFACE TREATMENT ANY ACCEPTABLE
MOUNTING FACILITY TYPE AND QUANTITY 1 SPRING TENSION
CABLE OPENING QUANTITY 1
CABLE OPENING DIAMETER 0.999 INCHES NOMINAL
TEST DATA DOCUMENT 81349-MILC38999 SPECIFICATION
SPECIFICATION/STANDARD DATA 81349-MILC38999 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-C-85049/75
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M85049/75-24-2
