Product Details | ELECTRICAL CONNECTOR POTTING MOLD

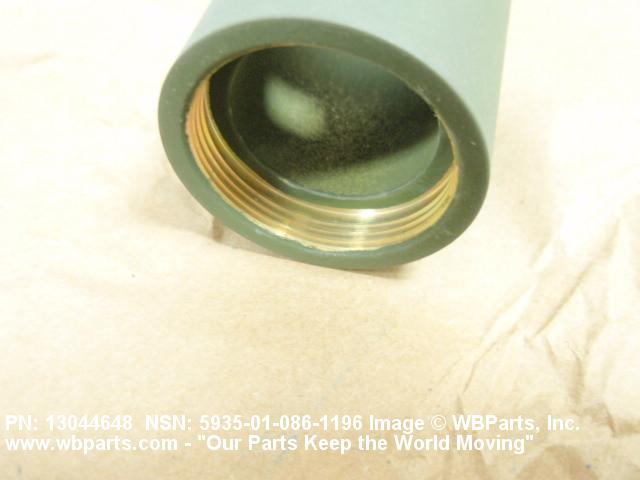

5935-01-086-1196 An item, solid or split, designed to be used as a hollow form into which potting compound is injected and allowed to cure or set to seal the back of an electrical connector. The potting eliminates the need for a back shell of the connector. The form may or may not be removable after potting. See also SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: 13044648, 5935-01-086-1196, 01-086-1196, 5935010861196, 010861196
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 NOV 1979 | 01-086-1196 | 22036 ( MOLD, POTTING, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-086-1196
Demand History | NSN 5935-01-086-1196
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-086-1196 | 2019-08-241 | 19 | DIBBS |
| 5935-01-086-1196 | 2014-04-98 | 9 | DIBBS |
| 5935-01-086-1196 | 2010-08-225 | 10 | DIBBS |
| 5935-01-086-1196 | 2010-08-224 | 6 | DIBBS |
| 5935-01-086-1196 | 2010-04-95 | 18 | DIBBS |
| 5935-01-086-1196 | 2009-12-356 | 6 | DIBBS |
| 5935-01-086-1196 | 2009-12-345 | 20 | United States |
| 5935-01-086-1196 | 2009-12-345 | 40 | United States |
| 5935-01-086-1196 | 2008-04-95 | 17 | DIBBS |
| 5935-01-086-1196 | 2008-03-73 | 6 | DIBBS |
