NSN 5935-00-492-7649 2014692, 201469-2, 3725892240
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-492-7649 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: 2014692, 201469-2, 3725892240, 372-5892-240, 5935-00-492-7649, 00-492-7649, 5935004927649, 004927649
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 13 FEB 1970 | 00-492-7649 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-492-7649
Related Products | NSN 5935-00-492-7649
Technical Data | NSN 5935-00-492-7649
Characteristic | Specifications |
---|---|

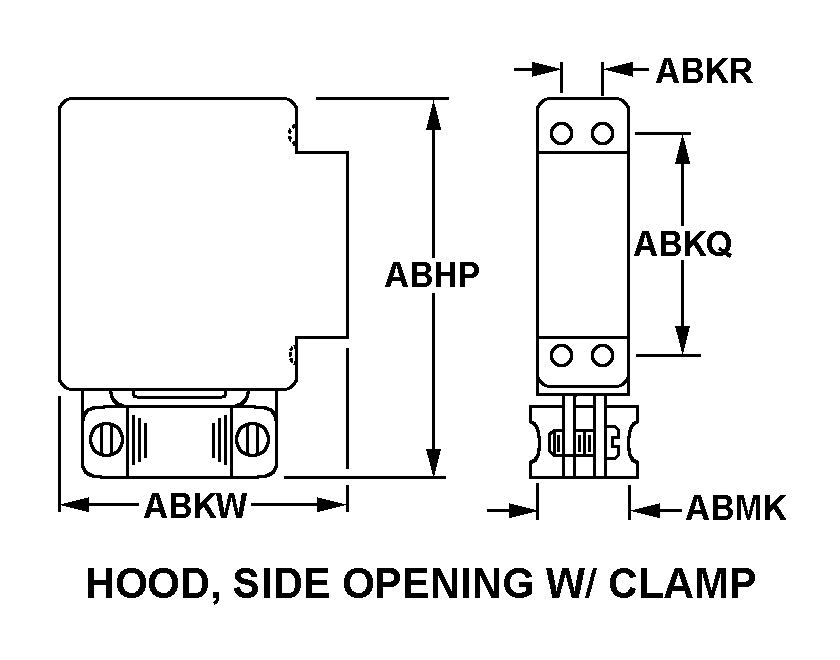

STYLE DESIGNATOR | 13G HOOD, SIDE OPENING W/CLAMP |
OVERALL LENGTH | 2.563 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | ANY ACCEPTABLE |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | ANY ACCEPTABLE |
OVERALL HEIGHT | 1.812 INCHES NOMINAL |
OVERALL WIDTH | 0.828 INCHES NOMINAL |
MATERIAL | STEEL |
SURFACE TREATMENT | ZINC PLATED |
MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
CABLE OPENING QUANTITY | 1 |
