NSN 5935-00-492-7586 K0A221L50PZ, K0A2-21L50PZ, KOA221L50PZD
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-492-7586 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: K0A221L50PZ, K0A2-21L50PZ, KOA221L50PZD, KOA2-21L-50PZD, 351015, 35101-5, 5935-00-492-7586, 00-492-7586, 5935004927586, 004927586
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 FEB 1970 | 00-492-7586 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-492-7586
Demand History | NSN 5935-00-492-7586
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-492-7586 | 2015-05-125 | 3 | DIBBS |
| 5935-00-492-7586 | 2013-11-311 | 2 | DIBBS |
| 5935-00-492-7586 | 2013-11-307 | 2 | DIBBS |
| 5935-00-492-7586 | 2013-10-296 | 2 | DIBBS |
| 5935-00-492-7586 | 2013-10-289 | 2 | DIBBS |
| 5935-00-492-7586 | 2013-09-247 | 2 | DIBBS |
| 5935-00-492-7586 | 2013-08-240 | 2 | DIBBS |
| 5935-00-492-7586 | 2011-07-195 | 6 | DIBBS |
| 351015 | 2010-11-334 | 16 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-492-7586
Related Products | NSN 5935-00-492-7586
Technical Data | NSN 5935-00-492-7586
| Characteristic | Specifications |
|---|---|

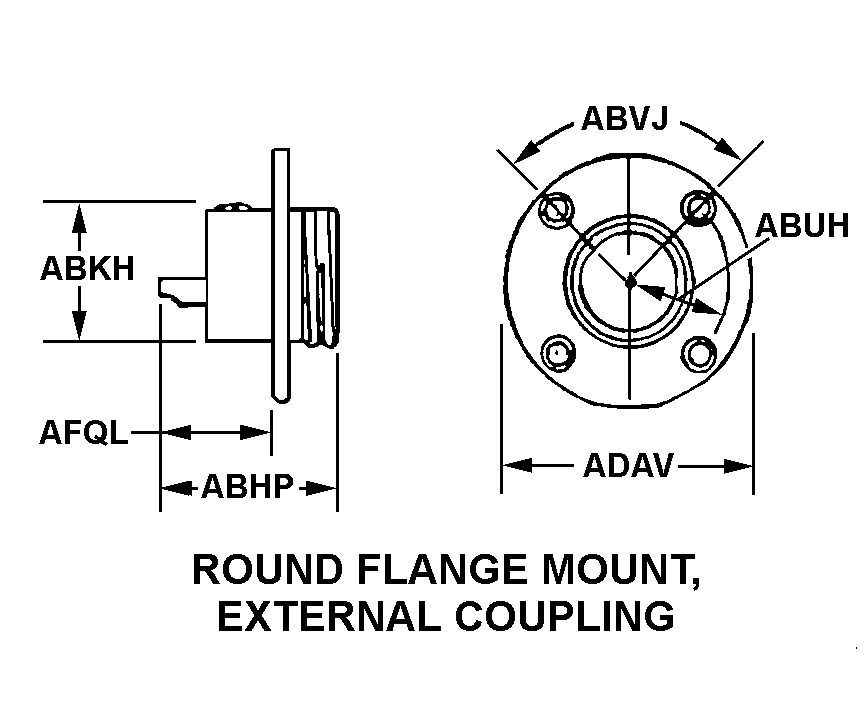

| BODY STYLE | 1J ROUND FLANGE MOUNT, EXTERNAL COUPLING |
| OVERALL LENGTH | 0.594 INCHES NOMINAL |
| BUSHING DIAMETER | 1.312 INCHES NOMINAL |
| OVERALL DIAMETER | 1.906 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 0.094 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ACME |
| NOMINAL THREAD SIZE | 1.3125 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 6 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

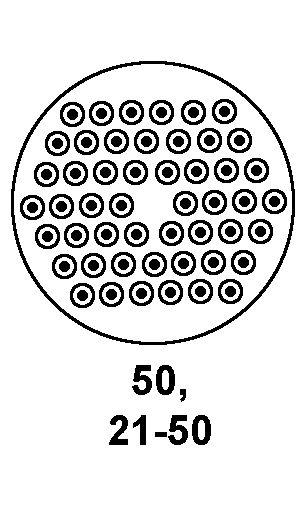

| CONTACT POSITION ARRANGEMENT STYLE | CDAB 50,21-50 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 50 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
