NSN 5935-00-260-2714 GC800AYG2402S, GC800AY-G2402S, GC800AYG2410S
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-00-260-2714 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: GC800AYG2402S, GC800AY-G2402S, GC800AYG2410S, GC800AYG24-10S, 14810411, 148104-11, 2201224100S6008, 22012-24-100S6008, 5935-00-260-2714, 00-260-2714, 5935002602714, 002602714
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 MAR 1971 | 00-260-2714 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-260-2714
Demand History | NSN 5935-00-260-2714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-260-2714 | 2017-08-215 | 6 | DIBBS |
| 5935-00-260-2714 | 2013-06-160 | 1 | DIBBS |
| 5935-00-260-2714 | 2009-01-05 | 2 | DIBBS |
| 5935-00-260-2714 | 2008-09-267 | 2 | DIBBS |
| 5935-00-260-2714 | 2006-02-32 | 2 | DIBBS |
Cross Reference | NSN 5935-00-260-2714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 148104-11 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| 22012-24-100S6008 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| GC800AY-G2402S | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| GC800AYG24-10S | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-260-2714
Technical Data | NSN 5935-00-260-2714
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.125 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.781 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

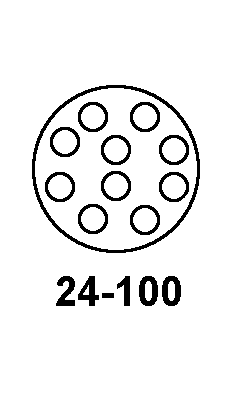

| CONTACT POSITION ARRANGEMENT STYLE | ALBG 24-100 SINGLE MATING END |
