NSN 5935-00-260-2827 10G92MW, 10G9-2MW, 12511836
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-260-2827 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 10G92MW, 10G9-2MW, 12511836, 1251-1836, M860, 5935-00-260-2827, 00-260-2827, 5935002602827, 002602827
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 MAR 1971 | 00-260-2827 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-260-2827
Cross Reference | NSN 5935-00-260-2827
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10G9-2MW | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 10G9-2MW | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 1251-1836 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1251-1836 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| M860 | 95354 | METHODE ELECTRONICS INC. DBA NETWORK BUSS PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-260-2827
Technical Data | NSN 5935-00-260-2827
| Characteristic | Specifications |
|---|---|

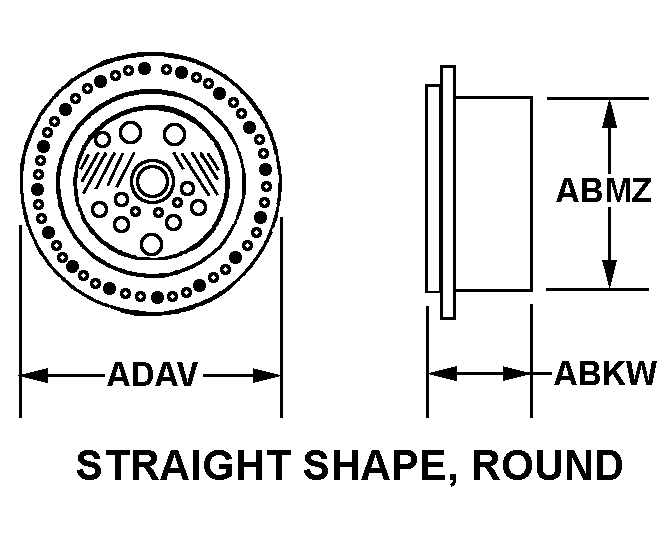

| BODY STYLE | 3M STRAIGHT SHAPE, ROUND |
