NSN 5935-00-236-0761 00-236-0761, 002360761
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-236-0761 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 5935-00-236-0761, 00-236-0761, 5935002360761, 002360761
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-236-0761 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-236-0761
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-236-0761
Technical Data | NSN 5935-00-236-0761
| Characteristic | Specifications |
|---|---|
| MATING END QUANTITY | 1 |

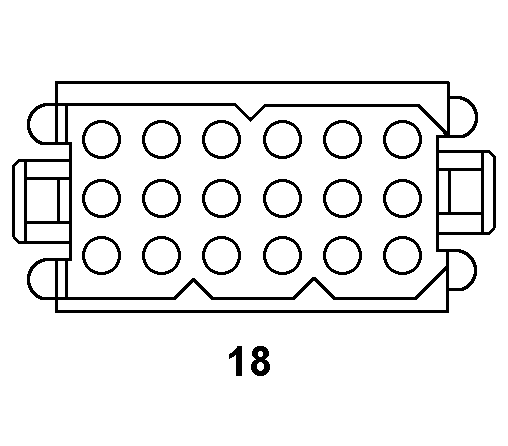

| CONTACT POSITION ARRANGEMENT STYLE | AUBT 18 SINGLE MATING END |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY NAVORD OD41152 |
| MANUFACTURERS CODE | 15280 |
| DESIGN CONTROL REFERENCE | 300648 |
Restrictions/Controls & Freight Information | NSN 5935-00-236-0761
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
