NSN 5935-01-268-5263 M28731/32, M28731/32H, M2873132
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-268-5263 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M28731/32, M28731/32H, M2873132, M2873132H, 008026117000256, 008026117000265, 00-8026-117-000-265, 5935-01-268-5263, 01-268-5263, 5935012685263, 012685263
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 DEC 1987 | 01-268-5263 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |

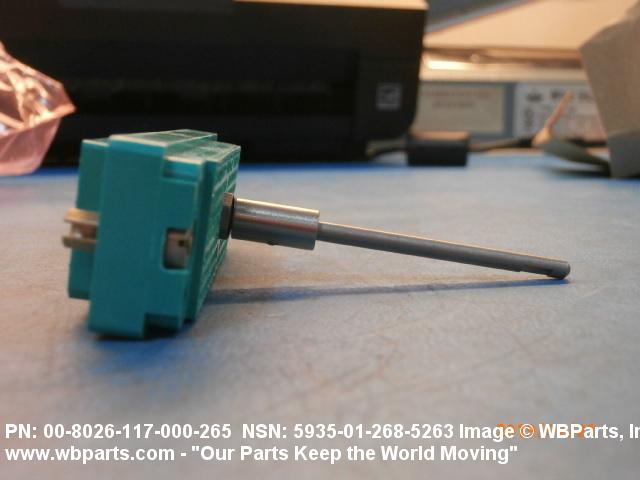

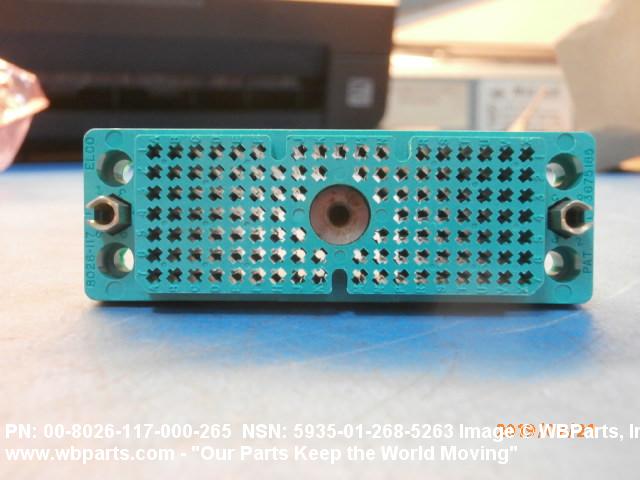

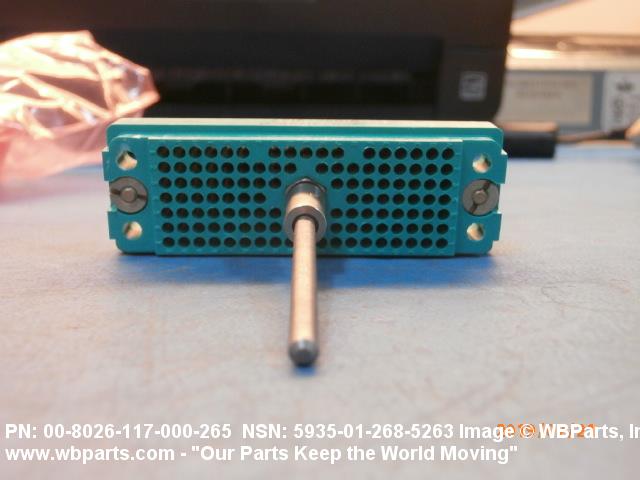

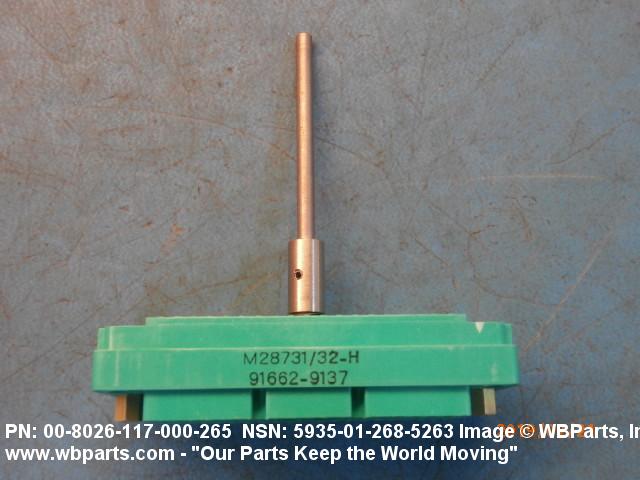

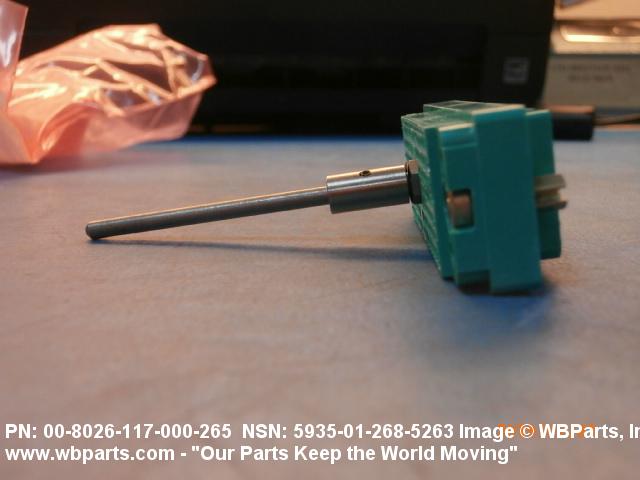

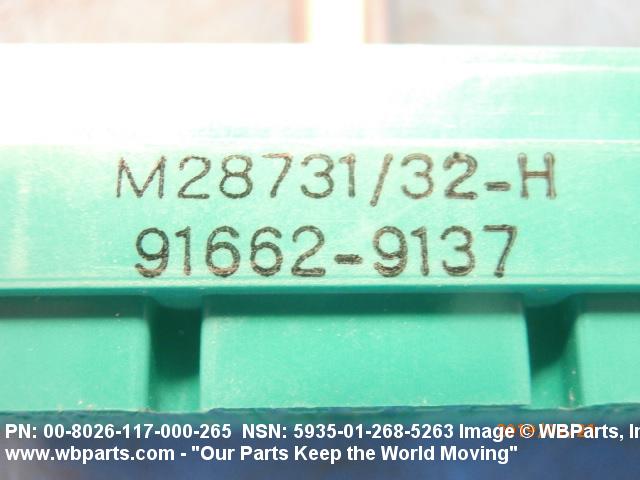

Drawings & Photos | NSN 5935-01-268-5263
Demand History | NSN 5935-01-268-5263
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 00-8026-117-000-265 | 2020-10-294 | 22 | DIBBS |
| 5935-01-268-5263 | 2019-02-35 | 6 | United States |
| 5935-01-268-5263 | 2015-07-186 | 8 | DIBBS |
| 5935-01-268-5263 | 2014-02-42 | 9 | US |
| 5935-01-268-5263 | 2011-08-219 | 12 | Turkey |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-268-5263
Technical Data | NSN 5935-01-268-5263
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 31G STRAIGHT SHAPE, RECTANGULAR |

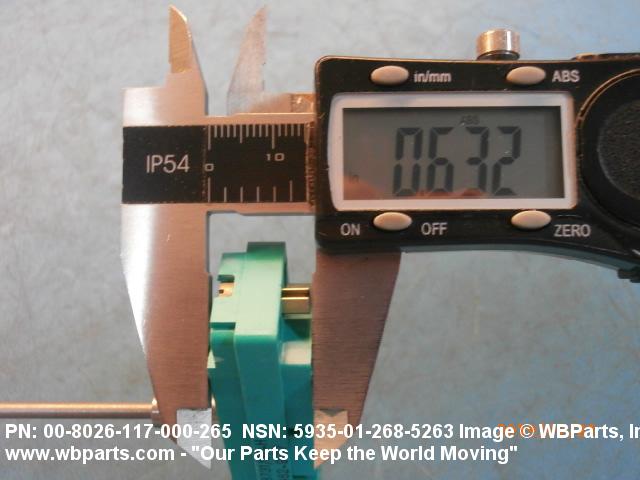

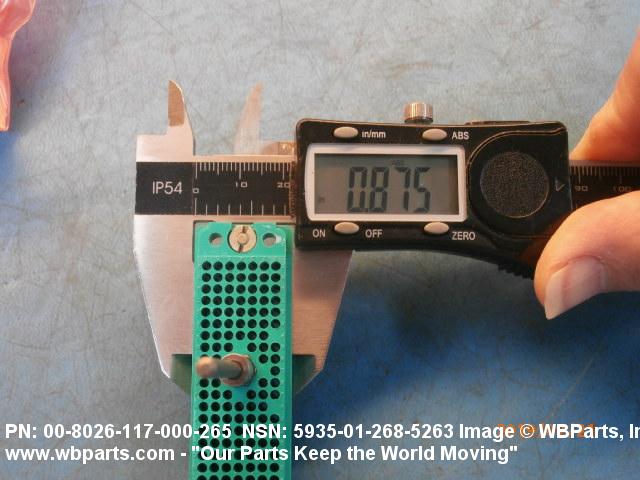

| OVERALL LENGTH | 0.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.870 INCHES NOMINAL |

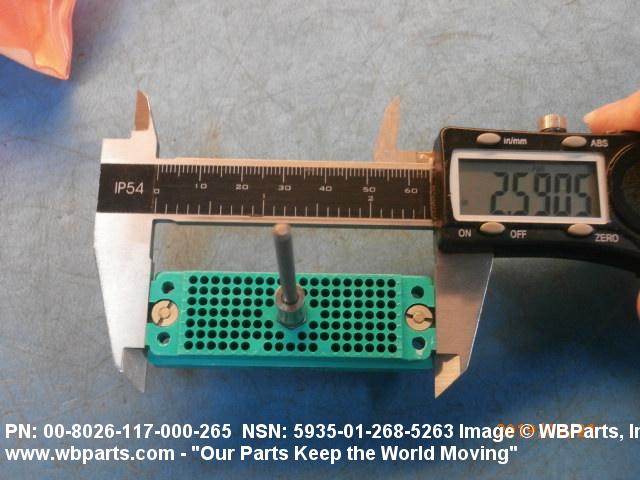

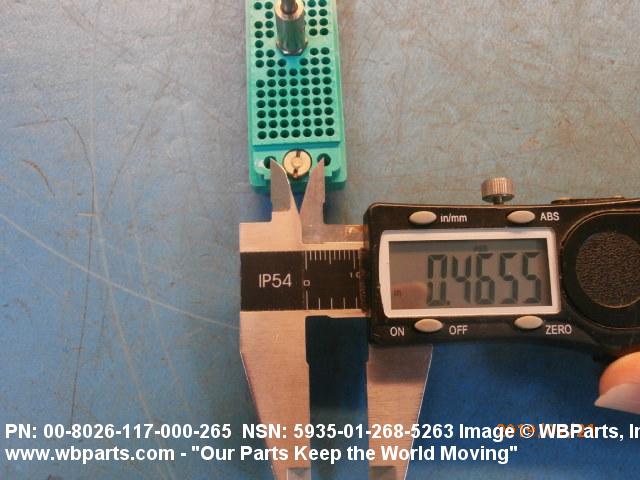

| OVERALL WIDTH | 2.592 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.468 INCHES NOMINAL |

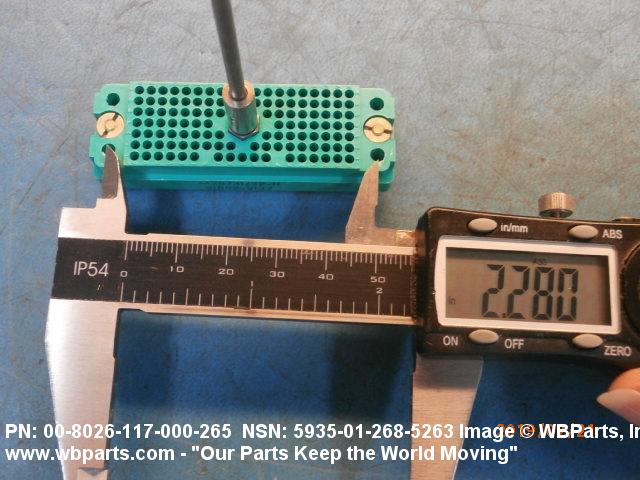

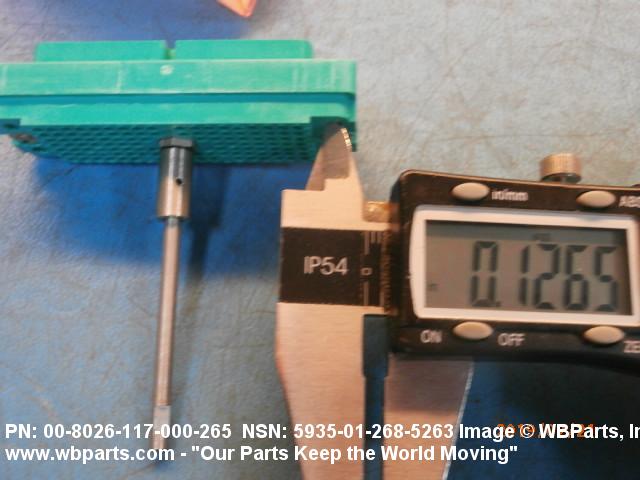

| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.280 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | POST JACKSOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | GUIDE PIN/SOCKET AND JACKSCREW |
| JACKSCREW TYPE AND LOCATION | MALE CENTER |
| MATING END QUANTITY | 1 |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 117 HERMAPHRODITE SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
Restrictions/Controls & Freight Information | NSN 5935-01-268-5263
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
