NSN 5935-00-236-0775 00-236-0775, 002360775
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-236-0775 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 5935-00-236-0775, 00-236-0775, 5935002360775, 002360775
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-236-0775 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-236-0775
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-236-0775
Technical Data | NSN 5935-00-236-0775
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 46A RECTANGULAR SHAPE |
| OVERALL LENGTH | 2.910 INCHES NOMINAL |
| OVERALL HEIGHT | 2.349 INCHES NOMINAL |
| OVERALL WIDTH | 1.160 INCHES NOMINAL |
| MATING END QUANTITY | 1 |

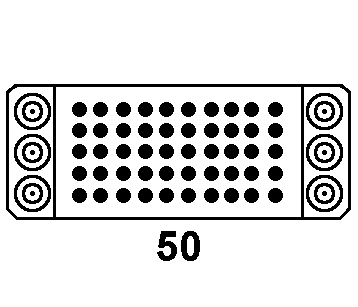

| CONTACT POSITION ARRANGEMENT STYLE | CDBC 50 SINGLE MATING END |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY NAVORD OD41152 |
| MANUFACTURERS CODE | 15280 |
| DESIGN CONTROL REFERENCE | 100870-5 |
Restrictions/Controls & Freight Information | NSN 5935-00-236-0775
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
