NSN 5935-00-105-4041 OSM2048055, OSM204-8055, 0SM2048055
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-105-4041 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: OSM2048055, OSM204-8055, 0SM2048055, 0SM204-8055, 17377, 3503304, 350330-4, 5935-00-105-4041, 00-105-4041, 5935001054041, 001054041
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JUL 1968 | 00-105-4041 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-105-4041
Demand History | NSN 5935-00-105-4041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0SM2048055 | 2009-12-337 | 8 | us |
| 5935-00-105-4041 | 2009-12-337 | 8 | us |
| 5935-00-105-4041 | 2007-07-201 | 12 | DIBBS |
| 5935-00-105-4041 | 2006-03-70 | 10 | DIBBS |
| 5935-00-105-4041 | 2005-12-343 | 6 | DIBBS |
Cross Reference | NSN 5935-00-105-4041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0SM204-8055 | 08718 | ITT CANNON ELECTRIC PHOENIX DIV |
| 17377 | 08718 | ITT CANNON ELECTRIC PHOENIX DIV |
| 17377 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 350330-4 | 59475 | REX SYSTEMS INCORPORATED |
| 350330-4 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| OSM204-8055 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-105-4041
Related Products | NSN 5935-00-105-4041
Technical Data | NSN 5935-00-105-4041
| Characteristic | Specifications |
|---|---|

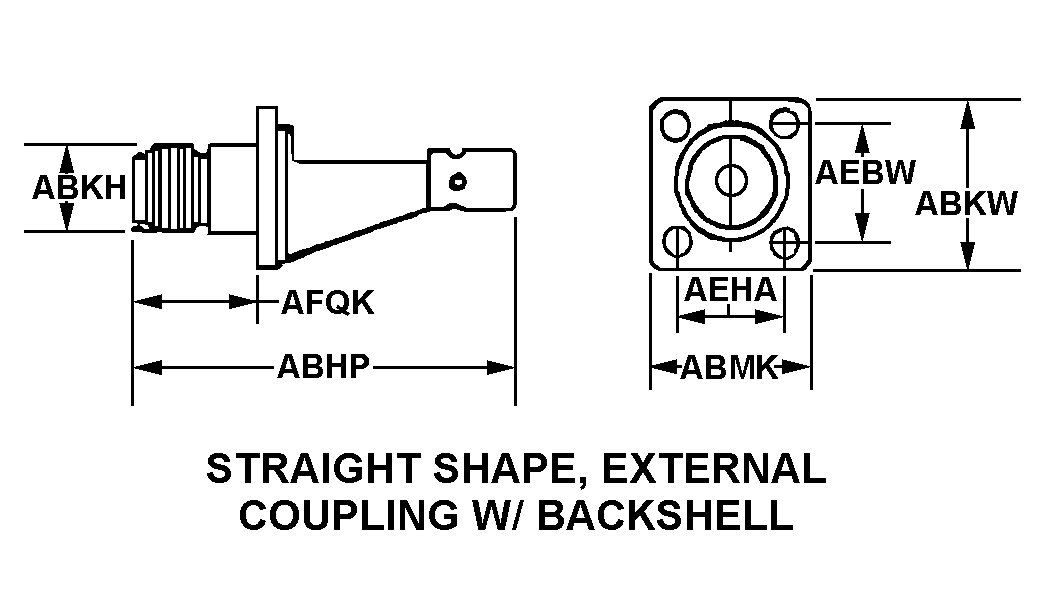

| BODY STYLE | 3L STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 0.760 INCHES NOMINAL |
| BUSHING DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.340 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.340 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.310 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.102 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 36 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CL 303,CON A FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | GOLD AND NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-C-26074; CL 1 MIL SPEC 2ND TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABCP OSM SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19468 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | PRESSURE PROOF AND |
