NSN 5935-00-105-4641 A08659, SCC784002, SC-C-784002

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-105-4641 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: A08659, SCC784002, SC-C-784002, SST/P/298/00/5098/000, SSTP298005098000, TRBPL0010, TRB-PL-0010, PL759, PL-75-9 , PL75-9, PL75N, PL75-N, E1210201C, FC701012V ITEM 210, FC701012V/210, FC701012V210, FC701012VITEM210, FS700175V, FS700175V ITEM 67, FS700175VITEM67, FS700661V ITEM 16, FS700661V/16, FS700661V16, FS700661VITEM16, KC59475, KC-59-475, PL75, 374-150-005, 502091, 50-209-1, 583R171H02, 6428000, 77C721113P001, 7909202-00, 003544076 ITEM 16, 003544076/16, 00354407616, 003544076ITEM16, 003544078 ITEM 210, 003544078/210, 003544078210, 003544078ITEM210, 007522616 ITEM 67, 007522616ITEM67, 0142262003, 014226-2003, 1002698-06, 146744-001, 1995829, 1995-8-29, 199589, 1995-8-9, 2001099N000, 2001-099-N000, 2001099N000000, 2001099N000-000, 23884091, 2388409-1, 2544100929, 25441-00929, 2544132004, 25441-32004, 28P08749T002, 28-P08749T002, 29174602, 2917460-2, 30P1242, 30P124-2, 30P1366, 30P136-6, 31000022, 3100-0022, 3100022, 310-0022, 90-6810614, 9136712, 913671-2, 5935-00-105-4641, 00-105-4641, 5935001054641, 906810614, 790920200, 001054641, 146744001, 100269806, 007522616, 374150005

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JUL 1968	00-105-4641	01938 ( CONNECTOR, PLUG, ELECTRICAL )

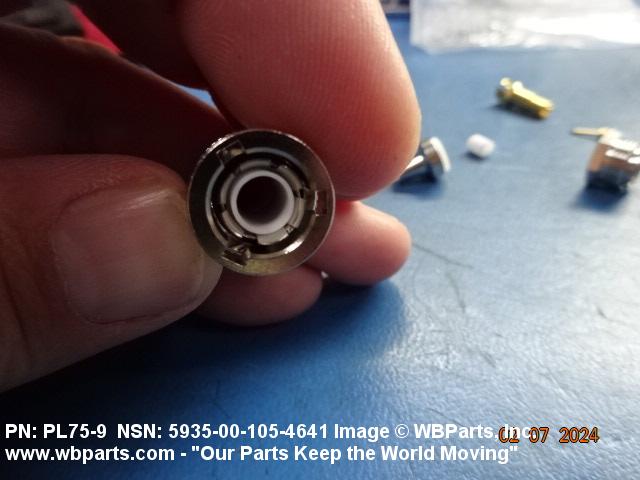

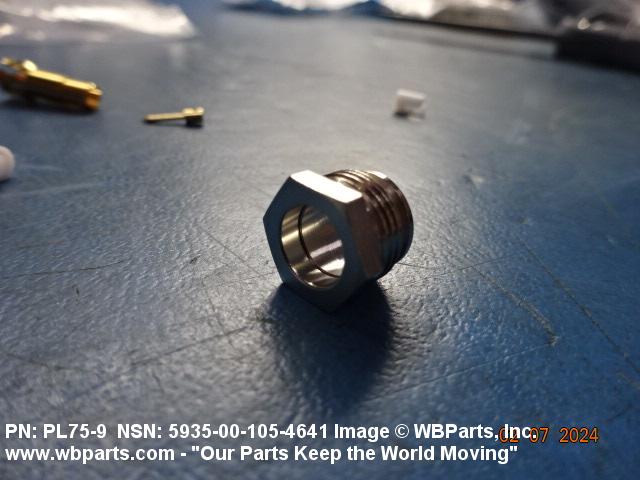

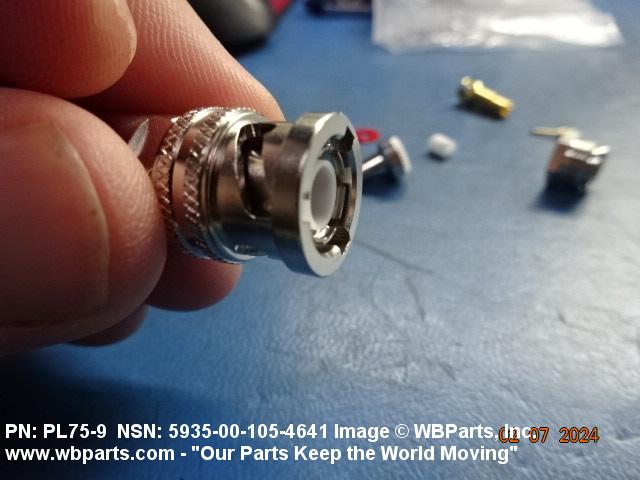

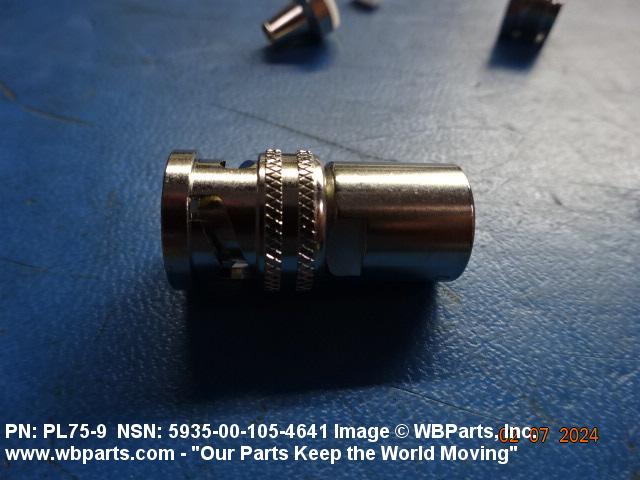

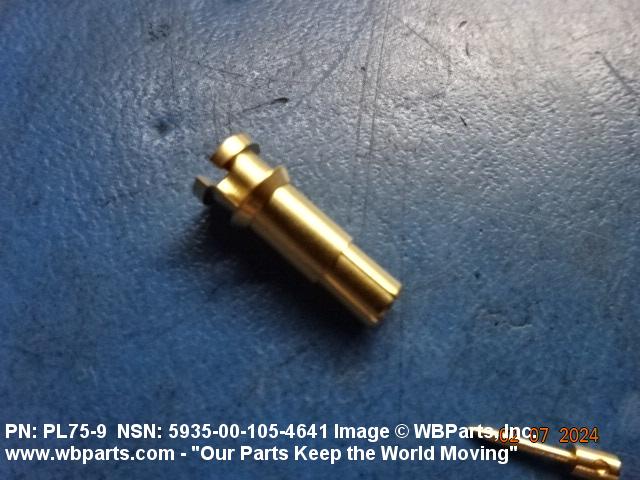

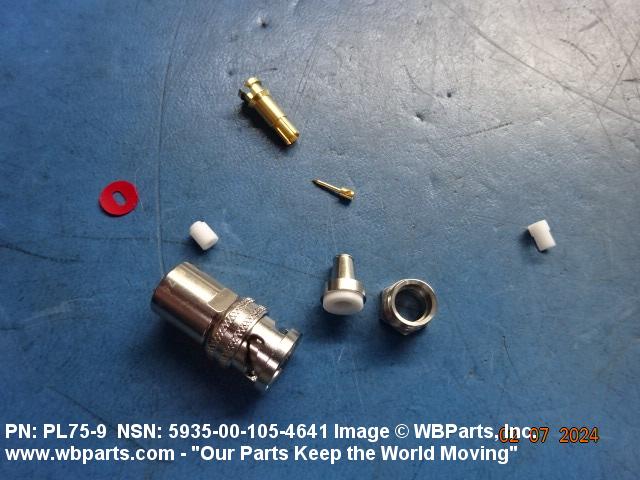

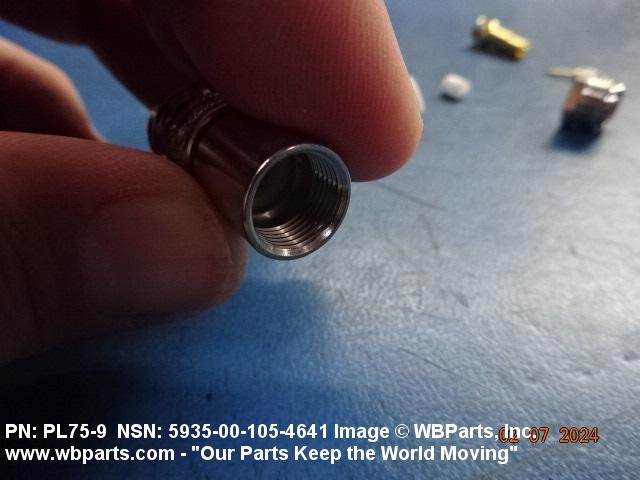

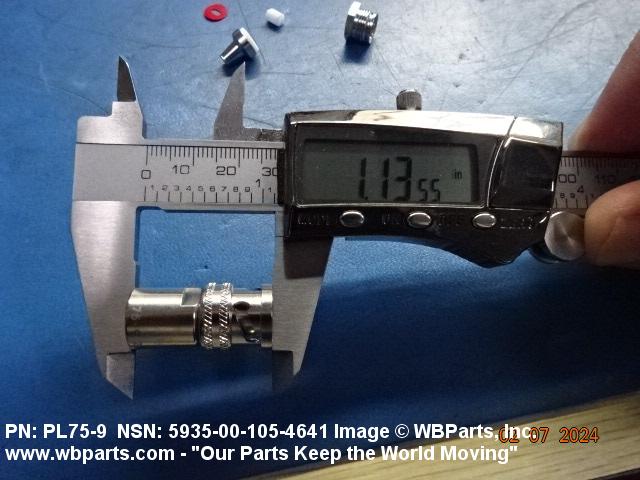

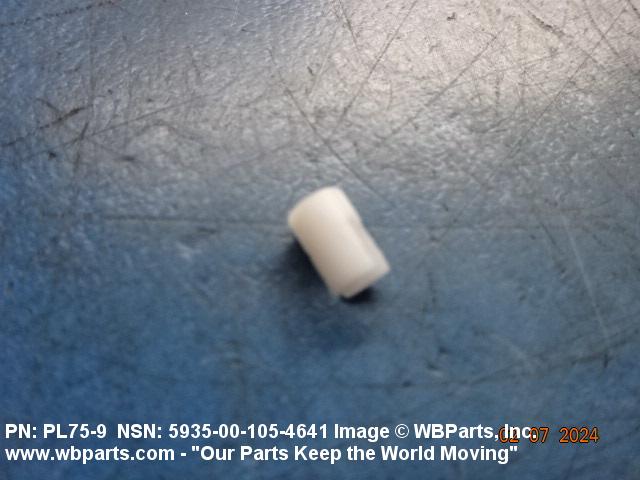

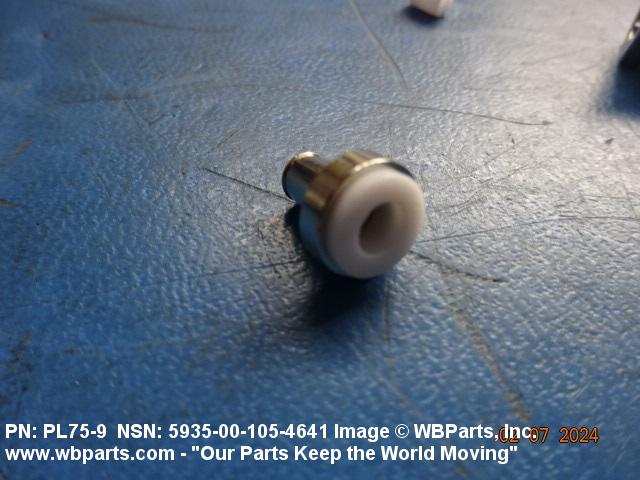

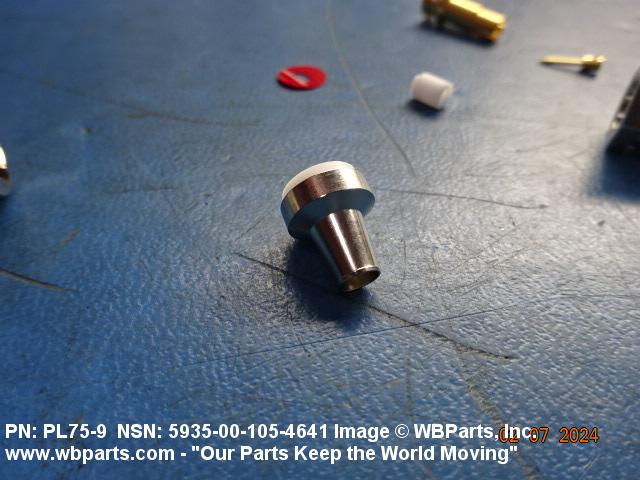

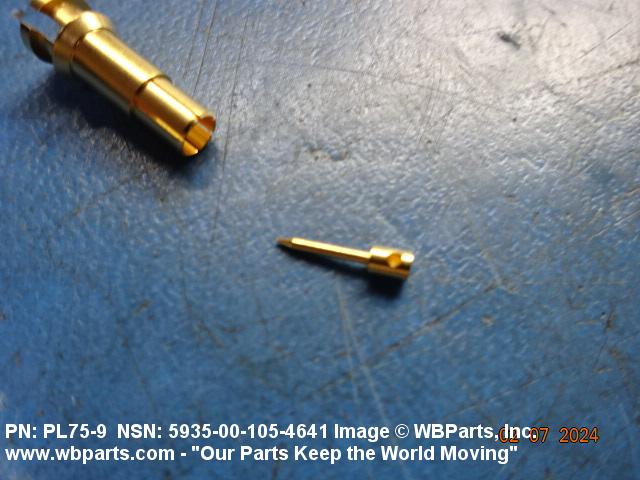

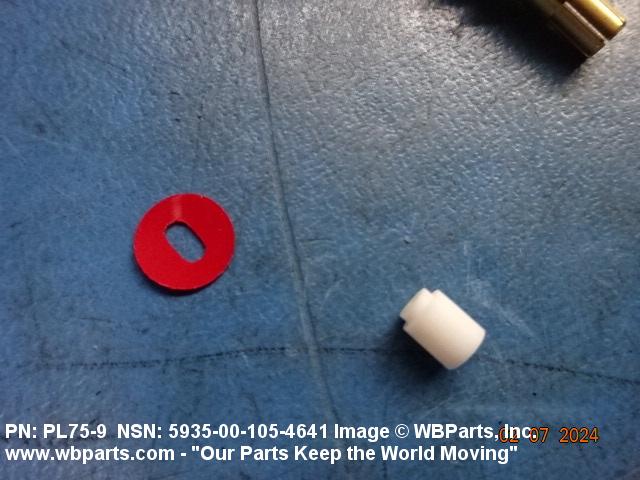

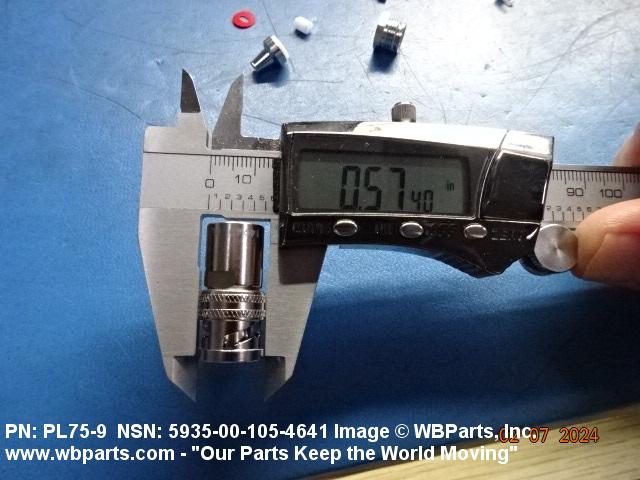

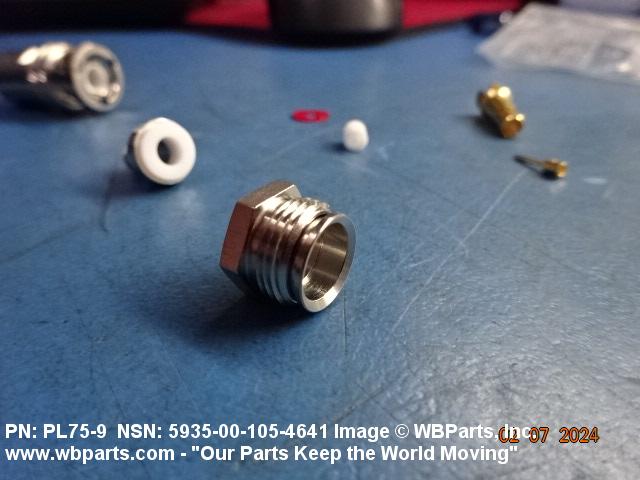

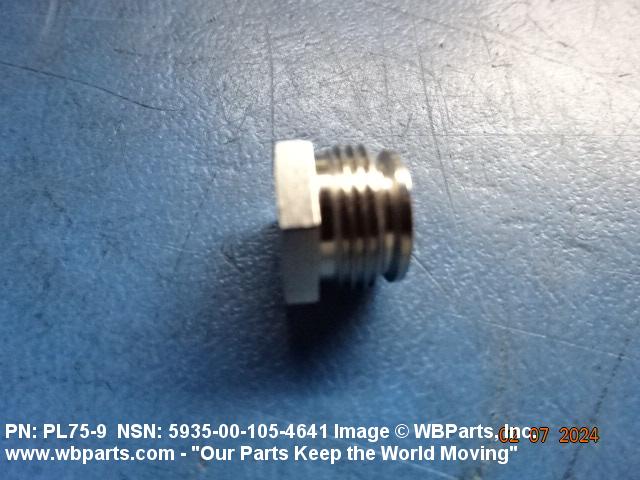

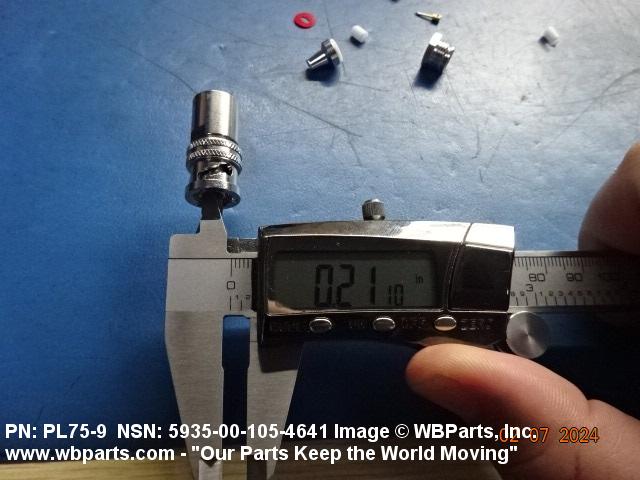

Drawings & Photos | NSN 5935-00-105-4641

Part Number	Request Date	QTY	Origin
5935-00-105-4641	2023-11-317	40	United States
5935-00-105-4641	2021-01-21	200	CA
31000022	2011-11-314	2	US
PL759	2010-09-258	3	US
5935-00-105-4641	2010-02-34	51	DIBBS

Cross Reference | NSN 5935-00-105-4641

Part Number	Cage Code	Manufacturer
003544076 ITEM 16	K2516	MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY
003544076/16	K2516	MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY
003544078 ITEM 210	K2516	MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY
003544078/210	K2516	MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY
007522616	K1367	MINISTRY OF DEFENCE NAVY SHIP SUPPORT AGENCY NAVAL TECHNICAL
007522616 ITEM 67	K1367	MINISTRY OF DEFENCE NAVY SHIP SUPPORT AGENCY NAVAL TECHNICAL
014226-2003	58795	SABRITEC
1002698-06	K1182	THALES UK LIMITED DBA THALES UK LTDTRAINING AND SIMULATION
146744-001	91417	HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS
1995-8-29	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
1995-8-9	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
2001-099-N000	00795	DELTA ELECTRONICS MFG CORP
2001-099-N000	DG438	SEMIC RF ELECTRONIC GMBH
2001099N000-000	00795	DELTA ELECTRONICS MFG CORP
2388409-1	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
25441-00929	K0662	SELEX ES LTD
25441-32004	K0662	SELEX ES LTD
28-P08749T002	94990	MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS
2917460-2	53711	NAVAL SEA SYSTEMS COMMAND
30P124-2	24931	SPECIALTY CONNECTOR CO INC
30P136-6	24931	SPECIALTY CONNECTOR CO INC
310-0022	14949	TROMPETER ELECTRONICS, INC.
3100-0022	14949	TROMPETER ELECTRONICS, INC.
374-150-005	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
50-209-1	43608	EDINBURGH CONNECTOR COMPANY DBA CONNECTRONICS
583R171H02	97042	TRIPLEX MANUFACTURING CO DBA GLOBE SPECIALTY CO DIV
6428000	S3712	BAE SYSTEMS BOFORS AB
77C721113P001	03538	LOCKHEED MARTIN CORPORATION DIV MST
7909202-00	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
90-6810614	53292	PEGASUS INC
913671-2	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
913671-2	49956	RAYTHEON COMPANY DBA RAYTHEON
A08659	K0967	MBDA UK LTD
E1210201C	K1447	VT SHIPSBUILDING LTD
E1210201C	K4944	BAE SYSTEMS SURFACE SHIPS LIMITED
E1210201C	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
E1210201C	U5295	VOSPER THORNYCROFT CONTROLS LTD
FC701012V ITEM 210	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FC701012V ITEM 210	U5295	VOSPER THORNYCROFT CONTROLS LTD
FC701012V/210	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FC701012V/210	U5295	VOSPER THORNYCROFT CONTROLS LTD
FS700175V	K1447	VT SHIPSBUILDING LTD
FS700175V	K4944	BAE SYSTEMS SURFACE SHIPS LIMITED
FS700175V ITEM 67	K1447	VT SHIPSBUILDING LTD
FS700175V ITEM 67	K4944	BAE SYSTEMS SURFACE SHIPS LIMITED
FS700661V ITEM 16	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FS700661V ITEM 16	U5295	VOSPER THORNYCROFT CONTROLS LTD
FS700661V/16	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FS700661V/16	U5295	VOSPER THORNYCROFT CONTROLS LTD
KC-59-475	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
PL-75-9	14949	TROMPETER ELECTRONICS, INC.
SC-C-784002	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SST/P/298/00/5098/000	K6451	BAE SYSTEMS MARINE LIMITED
TRB-PL-0010	0EFR2	CONNECTEC COMPANY, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-105-4641

Compare

Related Products | NSN 5935-00-105-4641

5935-00-105-4642, 5935-00-105-4685, 5935-00-105-5310, 5935-00-105-5311, 5935-00-105-5313

Technical Data | NSN 5935-00-105-4641

Characteristic	Specifications
BODY STYLE	5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.265 INCHES NOMINAL
OVERALL DIAMETER	0.595 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET SLOT
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
CABLE ENTRANCE DIAMETER	0.245 INCHES NOMINAL
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY 360
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ABDB NONSTD SINGLE MATING END
INSERT MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	ASTM D1457-83 ASSN STD SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY 360 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5935-00-105-4641

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	SG	403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-105-4641

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
