NSN 5930-01-162-2951 6984 H89, 6984H89, 6984H89A

Product Details | SENSITIVE SWITCH

5930-01-162-2951 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Part Alternates: 6984 H89, 6984H89, 6984H89A, 6984NLH89, 5930-01-162-2951, 01-162-2951, 5930011622951, 011622951

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	17 SEP 1983	01-162-2951	00399 ( SWITCH, SENSITIVE )

Drawings & Photos | NSN 5930-01-162-2951

Part Number	Request Date	QTY	Origin
6984H89A	2024-08-228	43	DIBBS
6984H89A	2024-08-214	27	DIBBS
6984H89A	2024-02-46	25	DIBBS
6984H89A	2022-11-328	2	US
6984H89A	2022-07-195	33	DIBBS
6984H89A	2022-01-09	9	DIBBS
6984H89A	2021-11-319	8	DIBBS
6984H89A	2021-10-279	14	DIBBS
6984H89A	2021-08-243	7	DIBBS
6984H89A	2020-12-352	22	DIBBS
6984H89A	2019-11-317	40	DIBBS
5930-01-162-2951	2018-11-319	27	DIBBS
5930-01-162-2951	2018-06-172	21	DIBBS
5930-01-162-2951	2016-03-82	19	DIBBS
5930-01-162-2951	2015-11-315	3	DIBBS
6984H89A	2014-10-283	1	US
5930-01-162-2951	2013-09-270	17	DIBBS
5930-01-162-2951	2013-09-255	17	DIBBS
5930-01-162-2951	2011-08-213	11	DIBBS
5930-01-162-2951	2011-02-34	6	DIBBS
5930-01-162-2951	2011-01-06	7	DIBBS
5930-01-162-2951	2010-09-263	3	DIBBS
5930-01-162-2951	2010-07-210	6	DIBBS
5930-01-162-2951	2010-05-144	3	DIBBS
5930-01-162-2951	2009-12-365	2	DIBBS
5930-01-162-2951	2009-12-338	3	DIBBS
5930-01-162-2951	2008-10-281	7	DIBBS
5930-01-162-2951	2008-09-255	5	DIBBS
5930-01-162-2951	2007-06-157	5	DIBBS

Cross Reference | NSN 5930-01-162-2951

Part Number	Cage Code	Manufacturer
6984 H89	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
6984H89A	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
6984NLH89	08372	EATON YALE LTD CUTLER-HAMMER INDUSTRIAL CONTROLS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-162-2951

Compare

Related Products | NSN 5930-01-162-2951

5930-01-162-3120, 5930-01-162-3668, 5930-01-162-3669, 5930-01-162-3677, 5930-01-162-3678

Technical Data | NSN 5930-01-162-2951

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	440.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	4.500 AMPERES INDUCTIVE AC

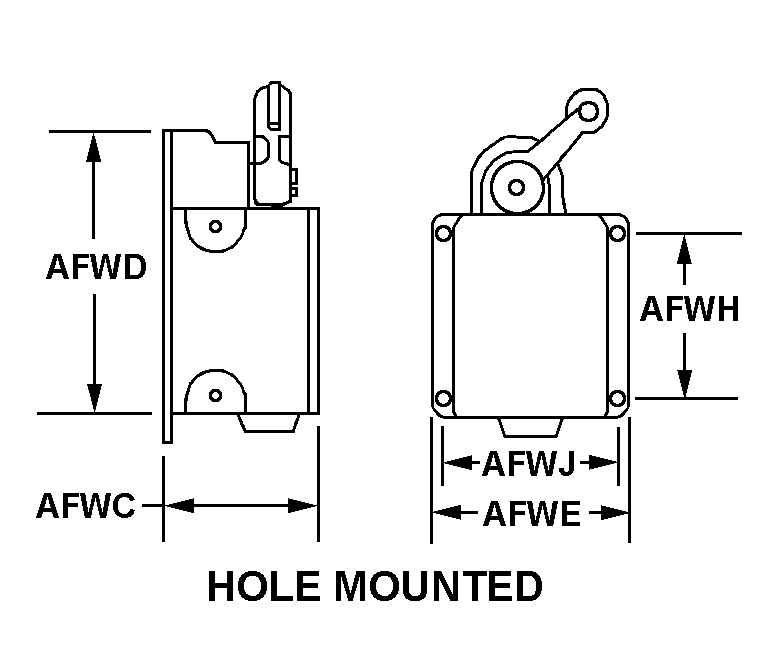

BODY STYLE	79M HOLE MOUNTED
HOUSING HEIGHT	1.780 INCHES NOMINAL
HOUSING LENGTH	2.840 INCHES NOMINAL
HOUSING WIDTH	1.650 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH	2.340 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH	1.160 INCHES NOMINAL
ACTUATOR STYLE	51 ROLLER ARM
ACTUATOR LENGTH	3.750 INCHES NOMINAL
ACTUATOR HEIGHT	3.480 INCHES NOMINAL
ACTUATOR ROLLER DIAMETER	0.750 INCHES NOMINAL
ACTUATOR ROLLER WIDTH	1.160 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY	3 SCREW
SWITCH ACTUATING FORCE	32.0 OUNCES NOMINAL
SWITCH RELEASE FORCE	16.0 OUNCES NOMINAL
ACTUATOR MOVEMENT	50.0 PRETRAVEL DEGREES NOMINAL AND 15.0 OVERTRAVEL DEGREES NOMINAL AND 4.0 DIFFERENTIAL DEGREES NOMINAL
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	PANEL
III CASE MATERIAL	METAL
