Product Details | SENSITIVE SWITCH
5930-01-043-0706 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: GS838S1, 10AT3221, 10AT322-1, 5930-01-043-0706, 01-043-0706, 5930010430706, 010430706
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JUN 1977 | 01-043-0706 | 00399 ( SWITCH, SENSITIVE ) |

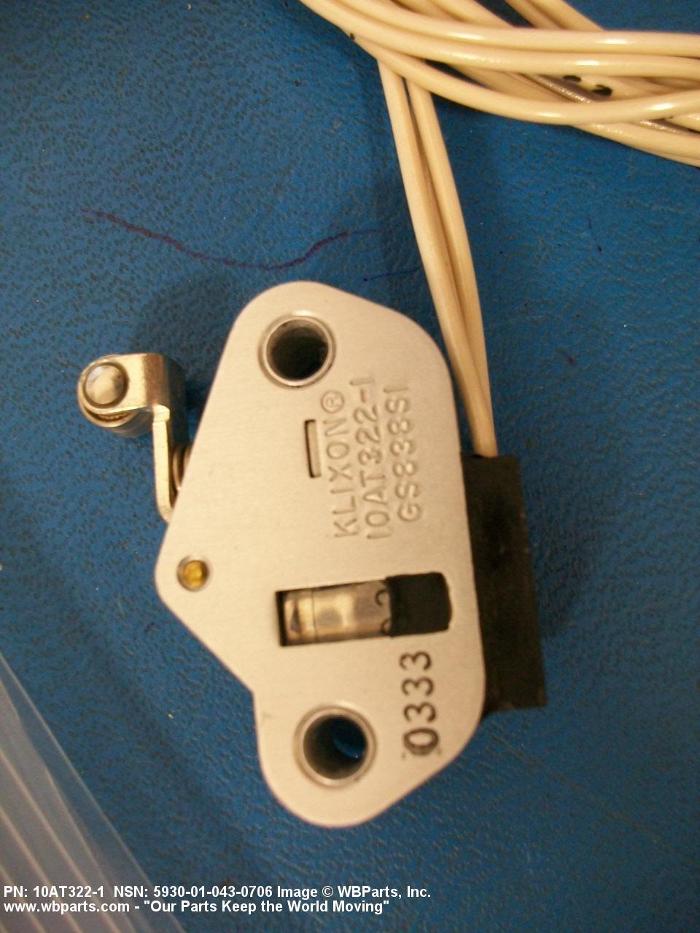

Drawings & Photos | NSN 5930-01-043-0706
Demand History | NSN 5930-01-043-0706
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-043-0706 | 2011-09-272 | 50 | MANUAL |
| GS838S1 | 2011-09-272 | 50 | Hong Kong |
| 5930-01-043-0706 | 2011-07-192 | 4 | MANUAL |
| GS838S1 | 2011-07-192 | 4 | Hong Kong |
| 5930-01-043-0706 | 2011-06-179 | 19 | Hong Kong |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-043-0706
Related Products | NSN 5930-01-043-0706
Technical Data | NSN 5930-01-043-0706
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 1.000 AMPERES INDUCTIVE DC AND 2.000 AMPERES LAMP DC |

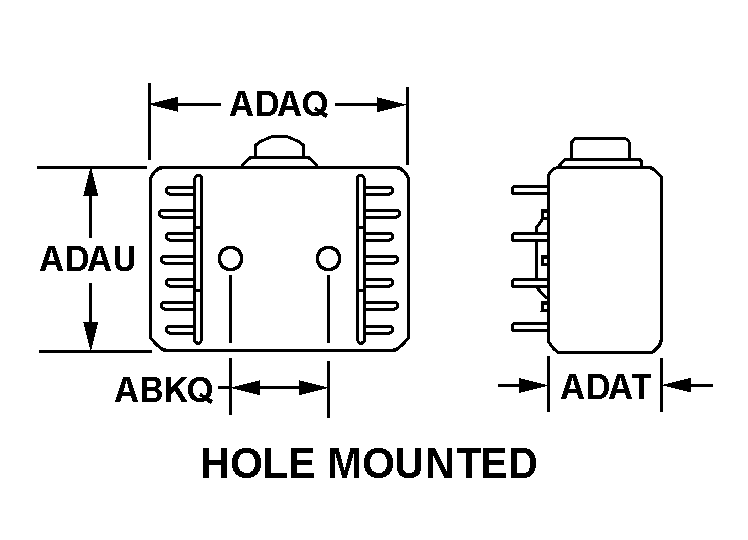

| BODY STYLE | 9M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.997 INCHES MINIMUM AND 1.003 INCHES MAXIMUM |
| BODY WIDTH | 0.390 INCHES MAXIMUM |

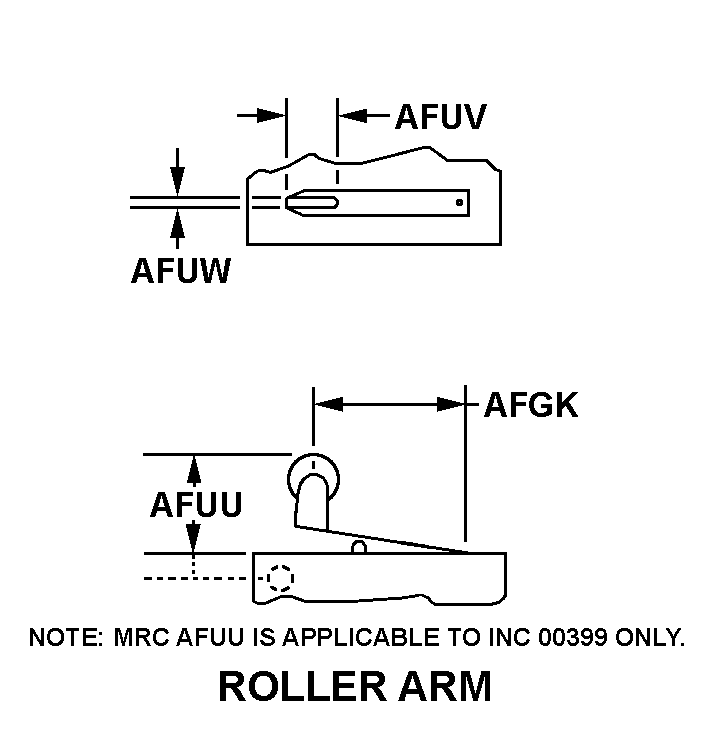

| ACTUATOR STYLE | 47 ROLLER ARM |
| ACTUATOR LENGTH | 0.539 INCHES MINIMUM AND 0.549 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.640 INCHES NOMINAL |
| ACTUATOR ROLLER DIAMETER | 0.209 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| ACTUATOR ROLLER WIDTH | 0.154 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| SWITCH ACTUATING FORCE | 1.5 INCH-OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 INCH-OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES MAXIMUM AND 0.075 OVERTRAVEL INCHES MAXIMUM AND 0.020 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.144 INCHES MAXIMUM |
| FEATURES PROVIDED | ACTUATOR SEAL |
| SPECIAL FEATURES | MUST BE PROCURED IAW GRUMMAN AEROSPACE CORP. DWG GS838S AND IS UTILIZED IN A CRITICAL APPLICATION ON A F-14A AIRCRAFT |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III CASE MATERIAL | METAL |
